2 Pole 3 Phase Motors

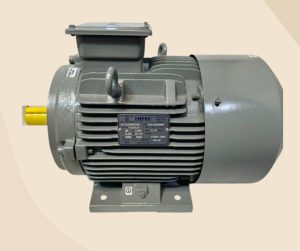

  • Sale! Impel 71 Frame B3

    Impel 0.37KW 0.5 HP 2 Pole IE2 3000 RPM B3 Foot Mounting 71 Frame 415V Three-Phase Squirrel Cage Induction Motor

    Original price was: ₹4,500.Current price is: ₹4,300. Basic

    Impel 0.37KW 0.5 HP 2 Pole IE2 3000 RPM B3 Foot Mounting 71 Frame 415V Three-Phase Squirrel Cage Induction Motor

    Key Specifications:

    • Model: IM7103732

    • Output Power: 0.5 HP (0.37 kW)

    • Rated Speed: 2800 RPM

    • Frame Size: 71

    • Number of Poles: 2

    • Mounting Types: B3 Foot, B5 Flange, B35 Combined

    • Cooling Method: IC 411 – Totally Enclosed Fan Cooled (TEFC)

    • Voltage: 415V ±10% (50 Hz ±5%)

    • Rated Current: 1.0 A

    • Insulation Class: F

    • Duty Cycle: Continuous (S1)

    • Protection Degree: IP55 – Dust and Water Jet Resistant

    • Rotation: Bi-directional (Clockwise & Counter-Clockwise)

    • Ambient Temperature: Up to 50°C

    • Service Factor: 1.00

    • Approximate Weight: 13 kg

    Performance Highlights:

    • Slip: 6.6%

    • Starting Current: 500%

    • Breakaway Torque: 210%

    • Breakdown Torque: 245%

    • Rated Torque: 1.27 Nm

    • Power Factor: 0.71 (50% load) to 0.85 (100% load)

    • Efficiency: Up to 69.50% at full load

    Add to cartDone

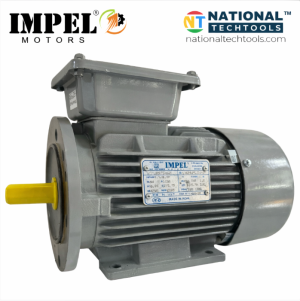

  • Sale! Impel 71 Frame B5

    Impel 0.37KW 0.5 HP 2 Pole IE2 3000 RPM B5 Flange Mounting 71 Frame 415V Three-Phase Squirrel Cage Induction Motor

    Original price was: ₹6,100.Current price is: ₹4,450. Basic

    Impel 0.37KW 0.5 HP 2 Pole IE2 3000 RPM B5 Flange Mounting 71 Frame 415V Three-Phase Squirrel Cage Induction Motor

    Specification:

    • Frame Size: 71
    • Power Output: 0.5 HP / 0.37 kW
    • Poles: 2
    • Speed: 2800 rpm
    • Cooling Method: IC 411 – TEFC
    • Mounting: B5
    • Rotation: CW & CCW
    • Frequency: 50 Hz (±5%)
    • Voltage: 415 V (±10%)
    • Current: 1.0 A
    • Duty Cycle: S1 (Continuous)
    • Insulation Class: F
    • Ambient Temp: 50°C
    • Protection: IP55
    • Efficiency (%): 68.85 (50%), 69.00 (75%), 69.50 (100%)
    • Power Factor: 0.71 (50%), 0.83 (75%), 0.85 (100%)
    • Slip: 6.6%
    • Rated: 1.27 Nm
    • Breakaway: 210%
    • Breakdown: 245%
    • Starting Current: 500%
    • Service Factor: 1.00
    • Bearings: 6203 ZZ C3 (Both Ends)
    • Sealing: V’Ring / Oil-seal (Both Ends)
    • Weight: 13 kg
    Add to cartDone

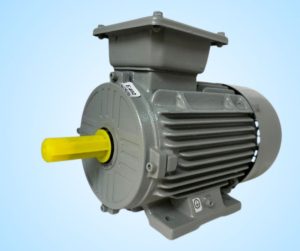

  • Sale! Impel 71 Frame B3

    Impel 0.5 HP 2Pole IE2 2800RPM B3 Foot Mounted 71Frame 415V Three-Phase Induction Motor

    Original price was: ₹9,161.Current price is: ₹4,300. Basic

    Impel 0.5 HP 2Pole IE2 2800RPM B3 Foot Mounted 71Frame 415V Three-Phase Induction Motor

     Specification:

    • Frame Size: 71
    • Power Output: 0.5 HP / 0.37 kW
    • Poles: 2
    • Speed: 2800 rpm
    • Cooling Method: IC 411 – TEFC
    • Mounting: B3
    • Rotation: CW & CCW
    • Frequency: 50 Hz (±5%)
    • Voltage: 415 V (±10%)
    • Current: 1.0 A
    • Duty Cycle: S1 (Continuous)
    • Insulation Class: F
    • Ambient Temp: 50°C
    • Protection: IP55
    • Efficiency (%): 68.85 (50%), 69.00 (75%), 69.50 (100%)
    • Power Factor: 0.71 (50%), 0.83 (75%), 0.85 (100%)
    • Slip: 6.6%
    • Torque:
      • Rated: 1.27 Nm
      • Breakaway: 210%
      • Breakdown: 245%
    • Starting Current: 500%
    • Service Factor: 1.00
    • Bearings: 6203 ZZ C3 (Both Ends)
    • Sealing: V’ Ring / Oil-seal (Both Ends)
    • Weight: 13 kg
    Add to cartDone

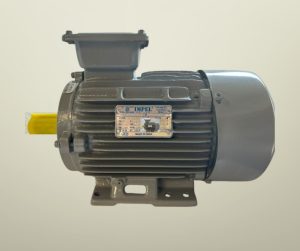

  • Sale! Impel 80 Frame B3Impel 0.5HP 6 Pole IE2 920RPM B3 Foot Mounted 80Frame 415V Motor

    Impel 0.5HP 6 Pole IE2 920RPM B3 Foot Mounted 80Frame 415V Motor

    Original price was: ₹17,293.Current price is: ₹5,800. Basic

    Impel 0.5HP 6 Pole IE2 920RPM B3 Foot Mounted 80Frame 415V Motor

    Specification :

    • Frame Size: 90S
    • Cooling Method: IC 411 (Totally Enclosed Fan Cooled – TEFC)
    • Output Power: 2.0 HP / 1.5 kW
    • Mounting Type: B5
    • Number of Poles: 2
    • Rotation Direction: Clockwise & Counter-Clockwise (CW & CCW)
    • Frequency: 50 Hz ±5%
    • Rated Voltage: 415 V ±10%
    • Duty Cycle: S1 (Continuous)
    • Rated Current: 3.1 A
    • Ambient Temperature: 50°C
    • Rated Speed: 2860 rpm
    • Insulation Class: F
    • Protection Degree: IP55
    • Slip: 4.66%
    Add to cartDone
  • Sale! Impel 71 Frame B3

    Impel 1 HP 2 Pole IE2 3000 RPM B3 Foot Mounting 71 Frame 415V Three-Phase Squirrel Cage Induction Motor

    Original price was: ₹7,200.Current price is: ₹5,250. Basic

    Impel 1 HP 2 Pole IE2 3000 RPM B3 Foot Mounting 71 Frame 415V Three-Phase Squirrel Cage Induction Motor

    Specifications:

    • Power: 1.0 HP (0.75 kW)

    • Speed: 2840 rpm

    • Poles: 2-pole

    • Frame Size: 80

    • Construction Type: Totally Enclosed Fan Cooled (TEFC)

    • Cooling Method: IC 411

    • Voltage: 415 V ±10%

    • Frequency: 50 Hz ±5%

    • Rated Current: 1.9 A

    • Duty Type: Continuous Duty (S1)

    • Ambient Temperature: Up to 50°C

    • Efficiency: Up to 77.4%

    • Starting Torque: 250%

    • Mounting Type: B3

    • Rotation: Clockwise (CW) and Counter-Clockwise (CCW)

    • Bearings: 6204 ZZ C3 (both ends)

    • Sealing: V’Ring / Oil-seal

    • Approx. Weight: 18 kg

    • Ingress Protection: IP55

    • Insulation Class: Class F

    Add to cartDone
  • Sale! Impel 80 Frame B5

    Impel 1 HP 2 Pole IE2 3000 RPM B5 Flange Mounted 80 Frame 415V Three-Phase Squirrel Cage Induction Motor

    Original price was: ₹8,000.Current price is: ₹5,400. Basic

    Impel 1 HP 2 Pole IE2 3000 RPM B5 Flange Mounted 80 Frame 415V Three-Phase Squirrel Cage Induction Motor

    Specification:

    • Frame Size: 71
    • Power Output: 0.5 HP / 0.37 kW
    • Poles: 2
    • Speed: 2800 rpm
    • Cooling Method: IC 411 – TEFC
    • Mounting: B5
    • Rotation: CW & CCW
    • Frequency: 50 Hz (±5%)
    • Voltage: 415 V (±10%)
    • Current: 1.0 A
    • Duty Cycle: S1 (Continuous)
    • Insulation Class: F
    • Ambient Temp: 50°C
    • Protection: IP55
    • Efficiency (%): 68.85 (50%), 69.00 (75%), 69.50 (100%)
    • Power Factor: 0.71 (50%), 0.83 (75%), 0.85 (100%)
    • Slip: 6.6%
    • Rated: 1.27 Nm
    • Breakaway: 210%
    • Breakdown: 245%
    • Starting Current: 500%
    • Service Factor: 1.00
    • Bearings: 6203 ZZ C3 (Both Ends)
    • Sealing: V’Ring / Oil-seal (Both Ends)
    • Weight: 13 kg
    Add to cartDone
  • Sale! Impel 80 Frame B3

    Impel 1.0 HP 2Pole IE2 2840RPM B3 Foot Mounting 80Frame 415V Three Phase squirrel Cage Induction Motor

    Original price was: ₹11,139.Current price is: ₹5,250. Basic

    Impel 1.0 HP 2Pole IE2 2840RPM B3 Foot Mounting 80Frame 415V Three Phase squirrel Cage Induction Motor

    Specifications :

    • Frame Size: 80
    • Cooling Method: IC 411 – Totally Enclosed Fan Cooled (TEFC)
    • Output Power: 1.0 HP / 0.75 kW
    • Mounting Type: B3 (Foot mounted)
    • Number of Poles: 2
    • Rotation: Clockwise & Counter-clockwise (CW & CCW)
    • Frequency: 50 Hz ±5%
    • Rated Voltage: 415 V ±10%
    • Rated Current: 1.9 A
    • Rated Speed: 2840 rpm
    • Slip: 5.33%
    • Duty Cycle: S1 – Continuous
    • Insulation Class: F
    • Ambient Temperature: 50°C
    • Protection Class: IP55
    • Service Factor: 1.00
    • Starting Current: 650% of rated
    • Rated Torque: 2.45 Nm
    • Breakaway Torque: 250%
    • Breakdown Torque: 260%
    • Efficiency (@ Load):

    50%: 76.00%

    75%: 77.00%

    100%: 77.40%

    • Power Factor (@ Load):

    50%: 0.53

    75%: 0.67

    100%: 0.70

    • Bearings (Drive & Non-drive End): 6204 ZZ C3
    • Sealing: V’ Ring / Oil-seal on both ends
    • Approximate Weight: 18 kg
    Add to cartDone

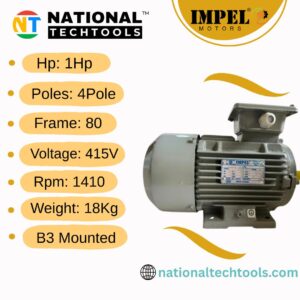

  • Sale! Impel 80 Frame B3

    Impel 1.0HP 4Pole IE2 1410RPM B3 Foot Mounted 80 Frame 415V Three-Phase Motor

    Original price was: ₹11,884.Current price is: ₹5,600. Basic

    Impel 1.0HP 4Pole IE2 1410RPM B3 Foot Mounted 80 Frame 415V Three-Phase Motor

    Specifications :

    • Frame Size: 80
    • Cooling Method: IC 411 – TEFC
    • Output Power: 1.0 HP / 0.75 kW
    • Mounting Types: B3
    • Number of Poles: 4
    • Rotation: CW & CCW (Both directions)
    • Frequency: 50 Hz (±5%)
    • Voltage: 415 V (±10%)
    • Current: 1.75 A
    • Speed: 1410 rpm
    • Insulation Class: F
    • Duty Cycle: S1 (Continuous)
    • Ambient Temperature: 50°C
    • Degree of Protection: IP55
    Add to cartDone

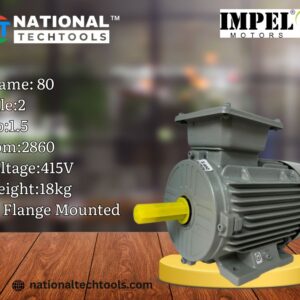

  • Sale! Impel 80 Frame B5

    Impel 1.5 HP 2 Pole IE2 2840 RPM B5 Flange Mounted 80 Frame 415V Three-Phase Squirrel motor

    Original price was: ₹12,951.Current price is: ₹6,100. Basic

    Impel 1.5 HP 2 Pole IE2 2840 RPM B5 Flange Mounted 80 Frame 415V Three-Phase Squirrel motor

     Specifications :

    • Frame Size: 80
    • Cooling Method: IC 411 (Totally Enclosed Fan Cooled – TEFC)
    • Output Power: 1.5 HP / 1.1 kW
    • Mounting Type: B5
    • Number of Poles: 2
    • Rotation Direction: Clockwise & Counter-Clockwise (CW & CCW)
    • Frequency: 50 Hz ±5%
    • Rated Voltage: 415 V ±10%
    • Duty Cycle: S1 (Continuous)
    • Rated Current: 2.3 A
    • Ambient Temperature: 50°C
    • Rated Speed: 2860 rpm
    • Insulation Class: F
    • Protection Degree: IP55
    • Slip: 4.66%
    Add to cartDone

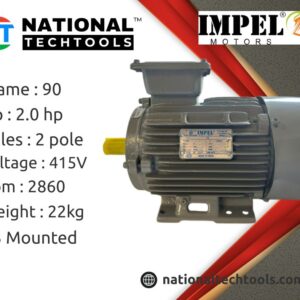

  • Sale! Impel 90 Frame B3

    Impel 1.5 kw 2.0HP 2 Pole IE2 2860RPM B3 Foot Mounted 90 Frame 415V Motor

    Original price was: ₹16,789.Current price is: ₹7,900. Basic

    Impel 1.5 kw 2.0HP 2 Pole IE2 2860RPM B3 Foot Mounted 90 Frame 415V Motor

    Specifications:

    • Frame: 90S
    • Cooling Method: IC 411 – TEFC
    • Output: 2.0 HP / 1.5 kW
    • Mounting: B3
    • Poles: 2
    • Rotation: Both (CW & CCW)
    • Frequency: 50 Hz (±5%)
    • Insulation Class: F
    • Rated Voltage: 415 V (±10%)
    • Duty Cycle: Continuous (S1)
    • Rated Current: 3.1 A
    • Ambient Temperature: 50 ºC
    Add to cartDone
  • Sale! Impel 80 Frame B3

    Impel 1.5HP 2 Pole IE2 2860RPM B3 Foot Mounted 80Frame 415V Motor

    Original price was: ₹12,951.Current price is: ₹5,900. Basic

    Impel 1.5HP 2 Pole IE2 2860RPM B3 Foot Mounted 80Frame 415V Motor

    Specifications :

    • Frame Size: 80
    • Cooling Method: IC 411 (Totally Enclosed Fan Cooled – TEFC)
    • Output Power: 1.5 HP / 1.1 kW
    • Mounting Type: B5
    • Number of Poles: 2
    • Rotation Direction: Clockwise & Counter-Clockwise (CW & CCW)
    • Frequency: 50 Hz ±5%
    • Rated Voltage: 415 V ±10%
    • Duty Cycle: S1 (Continuous)
    • Rated Current: 2.3 A
    • Ambient Temperature: 50°C
    • Rated Speed: 2860 rpm
    • Insulation Class: F
    • Protection Degree: IP55
    • Slip: 4.66%
    Add to cartDone

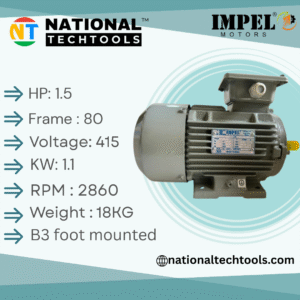

  • Sale! Impel 80 Frame B3

    Impel 1.5HP 2Pole IE2 2860RPM B3 Foot Mounted 80 Frame 415V Motor

    Original price was: ₹12,574.Current price is: ₹5,900. Basic

    Impel 1.5HP 2Pole IE2 2860RPM B3 Foot Mounted 80 Frame 415V Motor

    Specifications:

    Frame: 80

    – Cooling Method: IC 411 – TEFC

    – Output: 1.5 HP / 1.1 kW

    – Mounting: B3

    – Number of Poles: 2

    – Rotation: Both (CW & CCW)

    – Frequency: 50 Hz (±5%)

    – Insulation Class: F

    – Rated Voltage: 415 V (±10%)

    – Duty Cycle: Continuous (S1)

    – Rated Current: 2.3 A

    – Ambient Temperature: 50 ºC

    – Rated Speed: 2860 rpm

    – Protection Degree: IP55

    – Slip: 4.66%

    – Starting Current: 650%

    – Rated Torque: 3.63 Nm

    – Breakaway Torque: 250%

    – Breakdown Torque: 258%

    – Service Factor: 1.00

    – Approx. Weight: 18 kg

    Add to cartDone
  • Sale! Impel 132 frame B5

    Impel 10 HP 2 Pole IE2 2880 RPM B5 Flange Mounted 132 Frame 415V Three-Phase Squirrel Cage Induction Motor

    Original price was: ₹49,838.Current price is: ₹23,450. Basic

    Impel 10 HP 2 Pole IE2 2880 RPM B5 Flange Mounted 132 Frame 415V Three-Phase Squirrel Cage Induction Motor

    Specifications :

    • Frame Size: 132S
    • Output Power: 10.0 HP / 7.5 kW
    • Poles: 2
    • Rated Speed: 2880 rpm
    • Rated Voltage: 415 V ±10%
    • Frequency: 50 Hz ±5%
    • Rated Current: 13.5 A
    • Rated Torque: 24.52 Nm
    • Mounting Type: B5
    • Rotation: CW & CCW
    • Cooling Method: IC 411 – TEFC
    • Insulation Class: F
    • Duty Cycle: Continuous (S1)
    • Ambient Temperature: 50°C
    • Protection Degree: IP55
    • Slip: 4.0%
    Add to cartDone

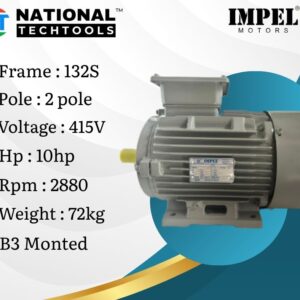

  • Sale! Impel 132 Frame B3

    Impel 10HP 2 Pole IE2 2880RPM B3 Foot Mounted 132SFrame 415V Motor

    Original price was: ₹48,386.Current price is: ₹22,750. Basic

    Impel 10HP 2 Pole IE2 2880RPM B3 Foot Mounted 132SFrame 415V Motor

    Specifications :

    • Frame Size: 132S
    • Output Power: 10.0 HP / 7.5 kW
    • Number of Poles: 2
    • Rated Speed: 2880 rpm
    • Rated Voltage: 415 V ±10%
    • Rated Current: 13.5 A
    • Frequency: 50 Hz ±5%
    • Mounting Type: B3
    • Cooling Method: IC 411 – TEFC (Totally Enclosed Fan Cooled)
    • Rotation: CW & CCW (Clockwise and Counterclockwise)
    • Insulation Class: F
    • Duty Cycle: Continuous (S1)
    • Ambient Temperature: 50 ºC
    • Protection Degree: IP55
    • Slip: 4.0%
    Add to cartDone
  • Sale! Impel 160 Frame B5

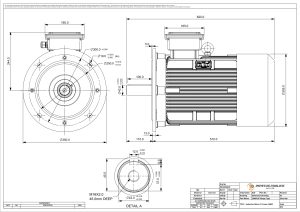

    Impel 15.0 HP 2 Pole IE2 2900 RPM B5 Flange Mounted 160 Frame 415V Three-Phase Squirrel Cage Induction Motor

    Original price was: ₹80,270.Current price is: ₹39,600. Basic

    Impel 15.0 HP 2 Pole IE2 2900 RPM B5 Flange Mounted 160 Frame 415V Three-Phase Squirrel Cage Induction Motor

    Specifications :

    • Frame Size: 160M
    • Output Power: 15.0 HP / 11.0 kW
    • Poles: 2
    • Rated Speed: 2900 rpm
    • Rated Voltage: 415 V ±10%
    • Frequency: 50 Hz ±5%
    • Rated Current: 20.0 A
    • Rated Torque: 35.512 Nm
    • Mounting Type: B5
    • Rotation: CW & CCW
    • Cooling Method: IC 411 – TEFC
    • Insulation Class: F
    • Duty Cycle: Continuous (S1)
    • Ambient Temperature: 50°C
    • Protection Degree: IP55
    • Slip: 3.33%
    Add to cartDone
  • Sale! Impel 160 Frame B3

    Impel 15HP 2 Pole IE2 2900RPM B3 Foot Mounted 160MFrame 415V Motor

    Original price was: ₹80,270.Current price is: ₹37,750. Basic

    Impel 15HP 2 Pole IE2 2900RPM B3 Foot Mounted 160MFrame 415V Motor

    Specifications :

    • Frame Size: 160M
    • Cooling Method: IC 411 (TEFC)
    • Output Power: 15.0 HP / 11.0 kW
    • Mounting Type: B3
    • Number of Poles: 2
    • Rotation: CW & CCW
    • Frequency: 50 Hz ± 5%
    • Insulation Class: F
    • Rated Voltage: 415 V ± 10%
    • Duty Cycle: S1 (Continuous)
    • Rated Current: 20.0 A
    Add to cartDone

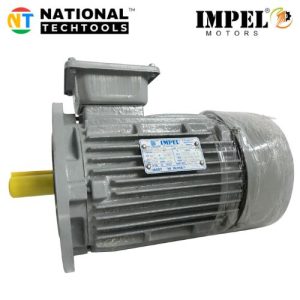

  • Sale! Impel 2.0 HP 2 Pole IE2 2860 RPM B5 Flange Mounted 90 Frame 415V Three-Phase Squirrel motor

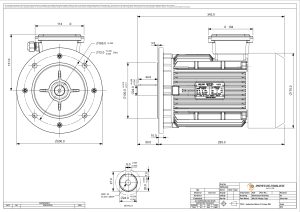

    Impel 2.0 HP 2 Pole IE2 2860 RPM B5 Flange Mounted 90 Frame 415V Three-Phase Squirrel motor

    Original price was: ₹17,293.Current price is: ₹8,100. Basic

    Impel 2.0 HP 2 Pole IE2 2860 RPM B5 Flange Mounted 90 Frame 4153 V Three-Phase Squirrel motor

     Specification :

    • Frame Size: 90S
    • Cooling Method: IC 411 (Totally Enclosed Fan Cooled – TEFC)
    • Output Power: 2.0 HP / 1.5 kW
    • Mounting Type: B5
    • Number of Poles: 2
    • Rotation Direction: Clockwise & Counter-Clockwise (CW & CCW)
    • Frequency: 50 Hz ±5%
    • Rated Voltage: 415 V ±10%
    • Duty Cycle: S1 (Continuous)
    • Rated Current: 3.1 A
    • Ambient Temperature: 50°C
    • Rated Speed: 2860 rpm
    • Insulation Class: F
    • Protection Degree: IP55
    • Slip: 4.66%
    Add to cartDone
  • Sale! Impel 160 Frame B5

    Impel 20.0 HP 2 Pole IE2 2900 RPM B5 Flange Mounted 160 Frame 415V Three-Phase Squirrel Cage Induction Motor

    Original price was: ₹93,814.Current price is: ₹27,500. Basic

    Impel 20.0 HP 2 Pole IE2 2900 RPM B5 Flange Mounted 160 Frame 415V Three-Phase Squirrel Cage Induction Motor

    Specifications :

    • Frame Size: 160M
    • Output Power: 20.0 HP / 15.0 kW
    • Poles: 2
    • Rated Speed: 2900 rpm
    • Rated Voltage: 415 V ±10%
    • Frequency: 50 Hz ±5%
    • Rated Current: 27.2 A
    • Rated Torque: 49.841 Nm
    • Mounting Type: B5
    • Rotation: CW & CCW
    • Cooling Method: IC 411 – TEFC
    • Insulation Class: F
    • Duty Cycle: Continuous (S1)
    • Ambient Temperature: 50°C
    • Protection Degree: IP55
    • Slip: 3.3%
    Add to cartDone
  • Sale! Impel 160 Frame B3

    Impel 20HP 2 Pole IE2 2900RPM B3 Foot Mounted 160MFrame 415V Motor

    Original price was: ₹93,814.Current price is: ₹44,100. Basic

    Impel 20HP 6 Pole IE2 2900RPM B3 Foot Mounted 160MFrame 415V Motor

    Specifications :

    • Frame Size: 160M
    • Cooling Method: IC 411 (TEFC)
    • Output Power: 20.0 HP / 15.0 kW
    • Mounting Type: B3
    • Number of Poles: 2
    • Rotation: Clockwise (CW) & Counter-Clockwise (CCW)
    • Frequency: 50 Hz ±5%
    • Rated Voltage: 415 V ±10%
    • Rated Current: 27.2 A
    • Duty Cycle: S1 (Continuous)
    • Insulation Class: F
    • Ambient Temperature: 50°C
    • Rated Speed: 2900 rpm
    • Slip: 3.3%
    • Starting Current: 700% of rated current
    Add to cartDone
  • Sale! Impel 160 Frame B5

    Impel 25.0 HP 2 Pole IE2 2910 RPM B5 Flange Mounted 160 Frame 415V Three-Phase Squirrel Cage Induction Motor

    Original price was: ₹99,324.Current price is: ₹49,000. Basic

    Impel 25.0 HP 2 Pole IE2 2910 RPM B5 Flange Mounted 160 Frame 415V Three-Phase Squirrel Cage Induction Motor

    Specifications :

    • Frame Size: 160L
    • Output Power: 25 HP / 18.5 kW
    • Poles: 2
    • Speed: 2910 RPM
    • Cooling Method: IC 411 – TEFC
    • Mounting: B5
    • Rated Voltage: 415 V ±10%
    • Frequency: 50 Hz ±5%
    • Rated Current: 33.1 A
    • Insulation Class: F
    • Duty Cycle: Continuous (S1)
    • Ambient Temperature: 50°C
    • Protection Class: IP55
    • Rotation: CW & CCW (Both directions)
    • Slip: 3.0%
    Add to cartDone
  • Sale! Impel 160 Frame B3

    Impel 25HP 2 Pole IE2 2910RPM B3 Foot Mounted 160LFrame 415V Motor

    Original price was: ₹99,324.Current price is: ₹46,700. Basic

    Impel 25HP 2 Pole IE2 2910RPM B3 Foot Mounted 160LFrame 415V Motor

    Specifications :

    • Frame Size: 160L
    • Cooling Method: IC 411 (TEFC)
    • Output Power: 25.0 HP / 18.5 kW
    • Mounting Type: B3
    • Number of Poles: 2
    • Rotation: Clockwise (CW) & Counter-Clockwise (CCW)
    • Frequency: 50 Hz ±5%
    • Rated Voltage: 415 V ±10%
    • Rated Current: 33.1 A
    • Duty Cycle: S1 (Continuous)
    • Insulation Class: F
    Add to cartDone
  • Sale! Impel 3.0 HP 2 Pole IE2 2850 RPM B5 Flange Mounted 90 Frame 415V Three-Phase Squirrel motor

    Impel 3.0 HP 2 Pole IE2 2850 RPM B5 Flange Mounted 90 Frame 415V Three-Phase Squirrel motor

    Original price was: ₹21,029.Current price is: ₹9,900. Basic

    Impel 3.0 HP 2 Pole IE2 2850 RPM B5 Flange Mounted 90 Frame 415V Three-Phase Squirrel motor

     Specifications  :

    • Frame Size: 90L
    • Output Power: 3.0 HP / 2.2 kW
    • Poles: 2
    • Rated Speed: 2850 rpm
    • Rated Torque: 7.36 Nm
    • Rated Voltage: 415 V (±10%)
    • Rated Current: 4.0 A
    • Frequency: 50 Hz (±5%)
    • Duty Cycle: S1 (Continuous)
    • Cooling Method: IC 411 – TEFC
    • Mounting Type: B5
    • Rotation: Clockwise & Counter-clockwise (CW & CCW)
    • Insulation Class: F
    • Protection Degree: IP55
    • Ambient Temperature: Up to 50°C
    • Slip: 5.5%
    Add to cartDone
  • Sale! Impel 90 Frame B3

    Impel 3.0HP 2Pole IE2 2850RPM B3 Foot Mounted 90L Frame 415V Motor

    Original price was: ₹20,416.Current price is: ₹20,400. Basic

    Impel 3.0HP 2Pole IE2 2850RPM B3 Foot Mounted 90L Frame 415V Motor

    Specifications :

    • Frame Size: 90L
    • Output Power: 3.0 HP / 2.2 kW
    • Poles: 2
    • Rated Speed: 2850 rpm
    • Rated Voltage: 415 V ±10%
    • Rated Current: 4.0 A
    • Frequency: 50 Hz ±5%
    • Cooling Method: IC 411 (TEFC)
    • Mounting: B3
    • Rotation: Clockwise & Counterclockwise (CW & CCW)
    • Insulation Class: F
    • Duty Cycle: Continuous (S1)
    • Ambient Temperature: 50 ºC
    • Protection Degree: IP55
    • Slip: 5.5%
    • Starting Current: 700%
    • Rated Torque: 7.36 Nm
    • Breakaway Torque: 250%
    • Breakdown Torque: 280%
    • Service Factor: 1.00
    Add to cartDone
  • Sale! Impel 100 Frame B5

    Impel 5 HP 2 Pole IE2 2850 RPM B5 Flange Mounted 100 Frame 415V Three-Phase Squirrel Cage Induction Motor

    Original price was: ₹28,836.Current price is: ₹13,550. Basic

    Impel 5 HP 2 Pole IE2 2850 RPM B5 Flange Mounted 100 Frame 415V Three-Phase Squirrel Cage Induction Motor

    Short specification:

    • Frame Size: 100L
    • Output Power: 5.0 HP / 3.7 kW
    • Poles: 2
    • Speed: 2850 rpm
    • Voltage: 415 V ±10%
    • Frequency: 50 Hz ±5%
    • Current: 7.0 A
    • Torque (Rated): 12.16 Nm
    • Mounting Type: B5
    • Rotation: Clockwise (CW) & Counterclockwise (CCW)
    • Cooling Method: IC 411 – TEFC
    • Insulation Class: F
    • Duty Cycle: Continuous (S1)
    • Ambient Temp.: 50°C
    • Protection Degree: IP55
    • Slip: 5%
    Add to cartDone
  • Sale! Impel 100 Frame B3

    Impel 5.0HP 2 Pole IE2 2850RPM B3 Foot Mounted 100L Frame 415V Motor

    Original price was: ₹22,996.Current price is: ₹13,150. Basic

    Impel 5.0HP 2 Pole IE2 2850RPM B3 Foot Mounted 100L Frame 415V Motor

    Full Specifications :

    • Frame Size: 100L
    • Output Power: 5.0 HP / 3.7 kW
    • Number of Poles: 2
    • Rated Speed: 2850 rpm
    • Rated Voltage: 415 V ±10%
    • Rated Current: 7.0 A
    • Frequency: 50 Hz ±5%
    • Mounting: B3
    • Cooling Method: IC 411 – TEFC
    • Rotation: CW & CCW
    • Insulation Class: F
    • Duty Cycle: Continuous (S1)
    • Ambient Temperature: 50 ºC
    • Protection Degree: IP55
    • Slip: 5%
    • Approximate Weight: 34 kg
    Add to cartDone
  • Sale! Impel 132 frame B5Impel 7.5 HP 2 Pole IE2 2880 RPM B5 Flange Mounted 132 Frame 415V Three-Phase Squirrel motor

    Impel 7.5 HP 2 Pole IE2 2880 RPM B5 Flange Mounted 132 Frame 415V Three-Phase Squirrel motor

    Original price was: ₹46,305.Current price is: ₹21,800. Basic

    Impel 7.5 HP 2 Pole IE2 2880 RPM B5 Flange Mounted 132 Frame 415V Three-Phase Squirrel motor

          short Specifications :

    • Frame Size: 132S
    • Output Power: 7.5 HP / 5.5 kW
    • Poles: 2
    • Rated Speed: 2880 rpm
    • Rated Voltage: 415 V ±10%
    • Frequency: 50 Hz ±5%
    • Rated Current: 10.5 A
    • Rated Torque: 18.05 Nm
    • Mounting Type: B5
    • Rotation: CW & CCW
    • Cooling Method: IC 411 – TEFC
    • Insulation Class: F
    • Duty Cycle: Continuous (S1)
    • Ambient Temperature: 50°C
    • Protection Degree: IP55
    • Slip: 4%
    Add to cartDone
  • Sale! Impel 132 Frame B3

    Impel 7.5HP 2 Pole IE2 2880RPM B3 Foot Mounted 132SFrame 415V Motor

    Original price was: ₹44,956.Current price is: ₹21,150. Basic

    Impel 7.5HP 2 Pole IE2 2880RPM B3 Foot Mounted 132SFrame 415V Motor

    Full  Specifications :

    • Frame Size: 132S
    • Output Power: 7.5 HP / 5.5 kW
    • Number of Poles: 2
    • Rated Speed: 2880 rpm
    • Rated Voltage: 415 V ±10%
    • Rated Current: 10.5 A
    • Frequency: 50 Hz ±5%
    • Mounting: B3
    • Cooling Method: IC 411 – TEFC
    • Rotation: Clockwise & Counterclockwise (CW & CCW)
    • Insulation Class: F
    • Duty Cycle: Continuous (S1)
    • Ambient Temperature: 50 ºC
    • Protection Degree: IP55
    • Slip: 4%
    • Starting Current: 700% of rated current
    Add to cartDone
