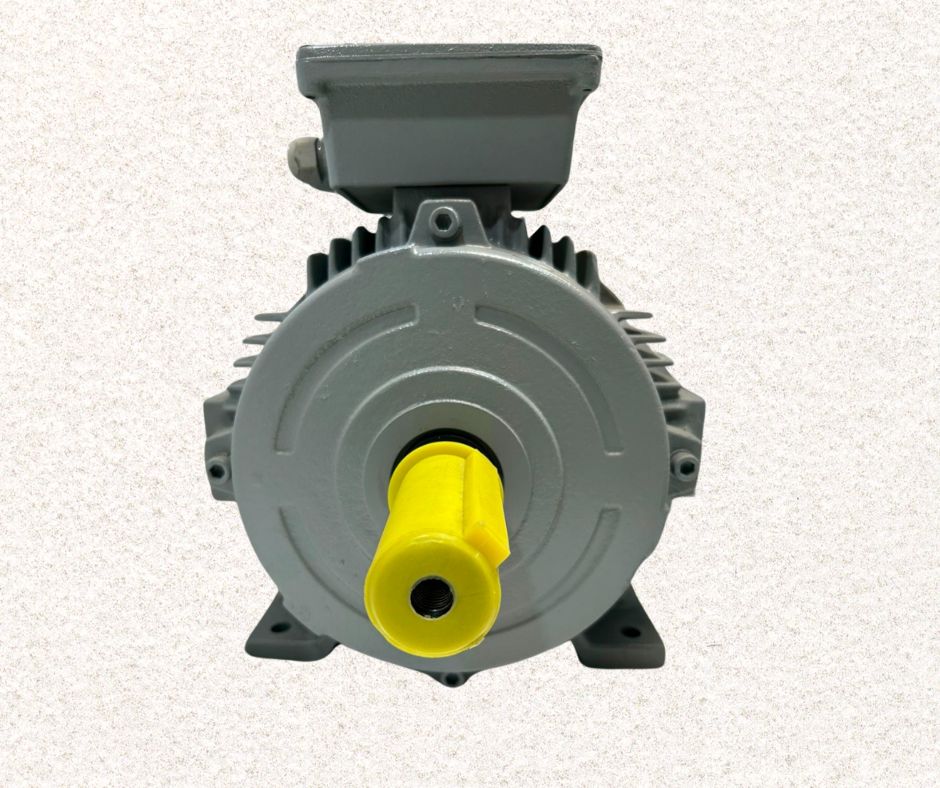

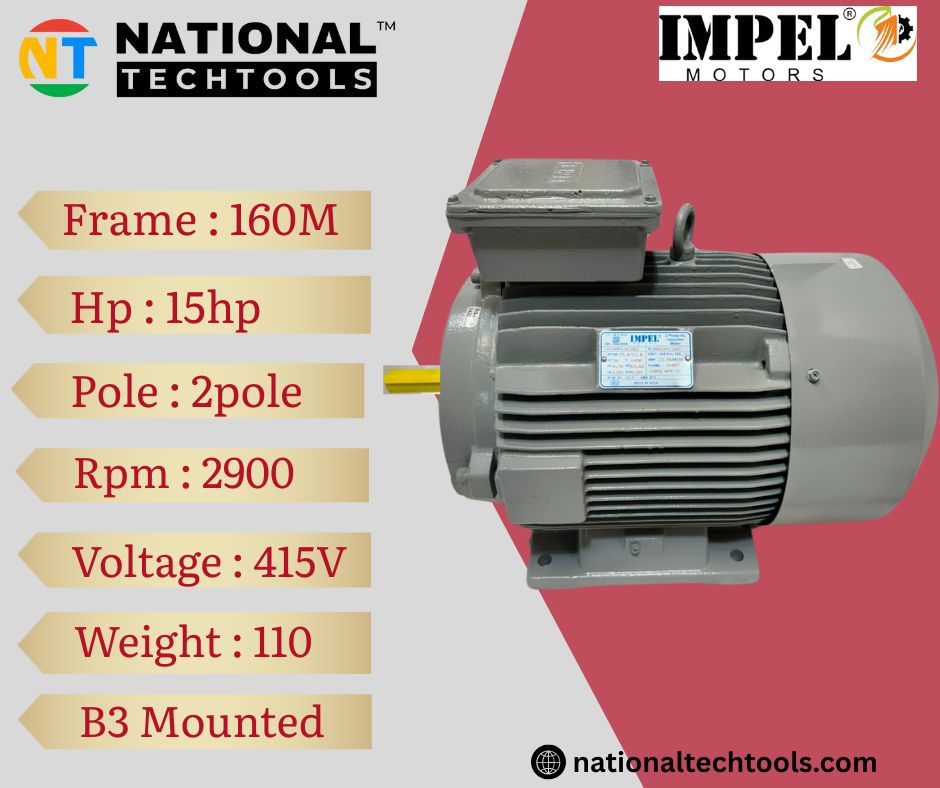

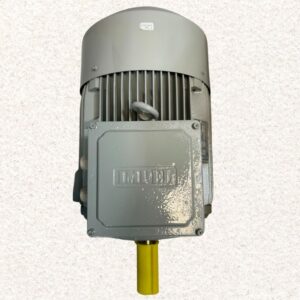

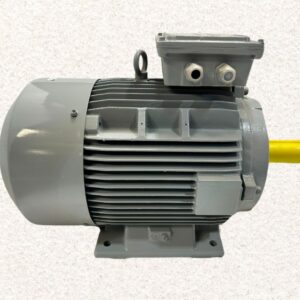

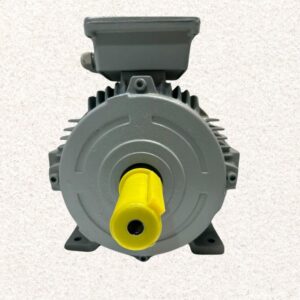

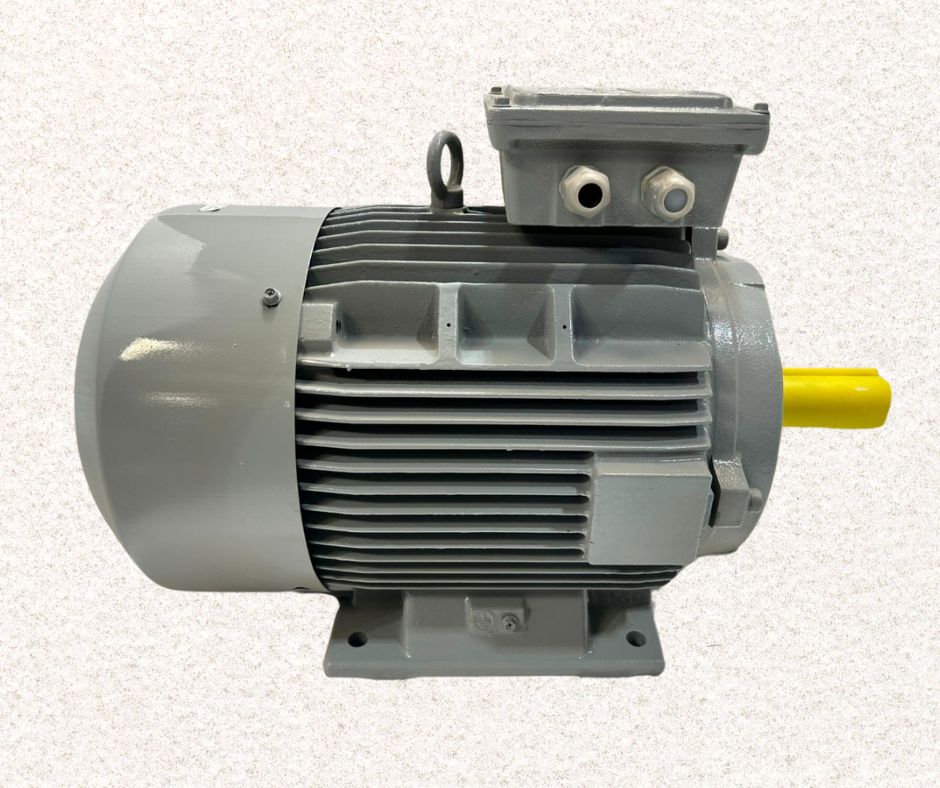

Impel 15HP 2 Pole IE2 2900RPM B3 Foot Mounted 160MFrame 415V Motor

Impel 15HP 2 Pole IE2 2900RPM B3 Foot Mounted 160MFrame 415V Motor

Full  Specifications :

• Frame Size:
• 160M, standard industrial motor frame size offering compatibility with a wide range of mounting bases and enclosures.
• Cooling Method:
• IC 411 (Totally Enclosed Fan Cooled – TEFC), ensuring efficient heat dissipation while protecting the motor from dust and moisture ingress.
• Output Power:
• 0 Horsepower (HP) / 11.0 Kilowatts (kW), suitable for medium-duty industrial applications requiring robust mechanical performance.
• Mounting Type:
• B3: Foot-mounted
• These options offer flexibility for installation in various machine configurations.
• Number of Poles:
• 2 Poles, enabling high-speed operation with a synchronous speed of approximately 3000 rpm at 50 Hz.
• Direction of Rotation:
• Bi-directional: Can operate in both Clockwise (CW) and Counter-Clockwise (CCW) directions, depending on wiring configuration.
• Frequency:
• 50 Hertz (Hz) with a tolerance of ±5%, suitable for standard power supply systems in most countries.
• Insulation Class:
• Class F, providing high thermal endurance and reliability, allowing the motor to operate safely at elevated temperatures.
• Rated Voltage:
• 415 Volts (V) ±10%, ensuring stable operation within typical industrial voltage variations.
• Duty Cycle:
• S1 (Continuous Duty), meaning the motor is designed to run continuously under full load without overheating.
• Rated Current:
• 0 Amperes (A), measured under full-load operating conditions at rated voltage and frequency.
• Rated Speed:
• 2900 revolutions per minute (rpm), which is typical for a 2-pole motor under a 50 Hz supply with slight slip.
• Ambient Temperature:
• Designed to operate in environments with ambient temperatures up to 50°C, making it suitable for hot industrial settings.
• Degree of Protection:
• IP55, offering protection against dust ingress sufficient to prevent harm and against water jets from any direction.
• Slip:
• 33%, indicating the percentage difference between synchronous and actual running speed under full load.
• Starting Current:
• 700% of rated current, which is typical for squirrel cage induction motors during DOL (Direct-On-Line) starting.
• Rated Torque:
• 512 Newton-meters (Nm), providing the necessary torque for a variety of mechanical loads.
• Breakaway (Locked Rotor) Torque:
• 200% of rated torque, indicating strong starting capability under load.
• Breakdown Torque:
• 275% of rated torque, the maximum torque the motor can deliver without stalling.
• Service Factor:
• 00, meaning the motor is designed to operate continuously at its rated power without overload margin.
• Efficiency (at various loads):
• 50% Load: 88.5%
• 75% Load: 89.0%
• 100% Load: 89.4%
• Ensures energy-efficient operation across a range of load conditions.
• Power Factor (at various loads):
• 50% Load: 0.78
• 75% Load: 0.86
• 100% Load: 0.86
• Indicates effective utilization of electrical power with improved performance at higher loads.
• Bearings:
• Drive End: 6309 ZZ C3
• Non-Drive End: 6309 ZZ C3
• High-quality deep groove ball bearings with C3 clearance for improved heat tolerance and longevity.
• Sealing Arrangement:
• V’ Ring and Oil-seal provided at both ends to prevent dust and moisture ingress, ensuring long bearing life.
• Approximate Weight: 110 kg, suitable for stable mounting and handling during installation
