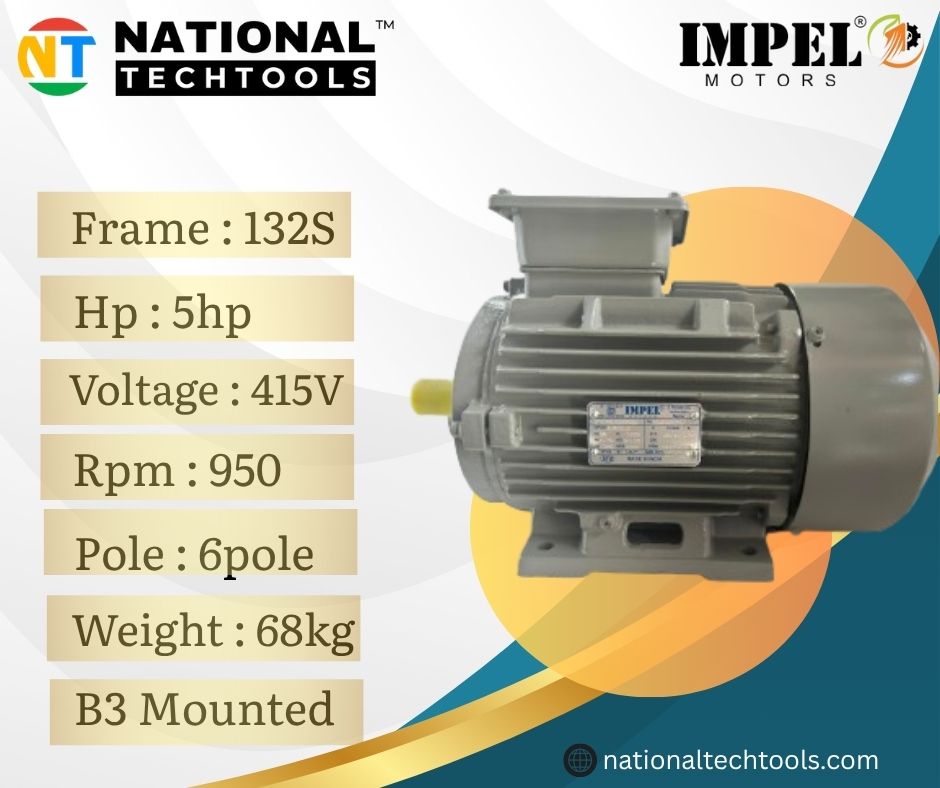

Impel 5.0HP 6 Pole IE2 950RPM B3 Foot Mounted 132SFrame 415V Motor

Impel 5.0HP 6 Pole IE2 950RPM B3 Foot Mounted 132SFrame 415V Motor

Full Specification :

The 5.0 HP (3.7 kW) three-phase squirrel cage induction motor, built in a 132S frame, is engineered to deliver robust and efficient performance in demanding industrial applications. Featuring a 6-pole configuration, this motor operates at a nominal speed of 950 rpm, making it suitable for applications requiring high torque at lower speeds. It delivers a rated torque of 36.10 Nm and is capable of operating in both clockwise (CW) and counterclockwise (CCW) directions, offering flexibility in installation and operation.

Designed for continuous operation (S1 duty cycle), this motor ensures reliability under constant load. It features IC 411 cooling with a Totally Enclosed Fan Cooled (TEFC) enclosure, protecting internal components from dust, water ingress, and environmental contaminants, and making it ideal for harsh or outdoor conditions. The motor is insulated with Class F insulation, supporting thermal stability in ambient temperatures up to 50°C.

The motor runs on a standard 415 V ±10% power supply at 50 Hz ±5%, with a rated current of 8.2 A. It offers high starting torque with a breakaway torque of 200% and a breakdown torque of 253%, ensuring strong performance during motor startup and sudden load variations. Despite its powerful capabilities, the motor maintains high operational efficiency, with values ranging from 83.00% at 50% load to 84.30% at full load, helping reduce energy costs over time.

Power factor performance is solid, improving from 0.58 at half load to 0.70 at full load, contributing to better power quality and system efficiency. Bearings include 6308 ZZ C3 on the drive end and 6208 ZZ C3 on the non-drive end, ensuring long-lasting and smooth operation. Both ends are sealed with V’ Ring or oil-seal systems to provide additional protection from contaminants.

This motor supports versatile mounting options including B3 allowing for easy integration into various mechanical systems. Weighing approximately 68 kg, the motor combines strength, durability, and energy efficiency, making it a dependable solution for fans, compressors, conveyors, and other industrial machinery.
