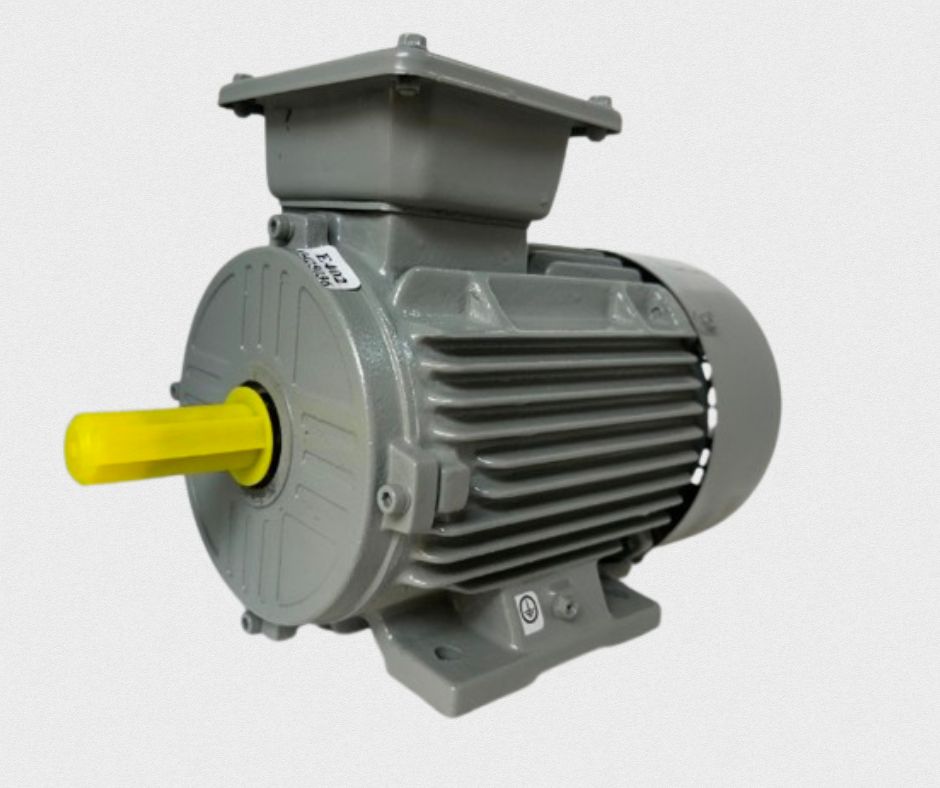

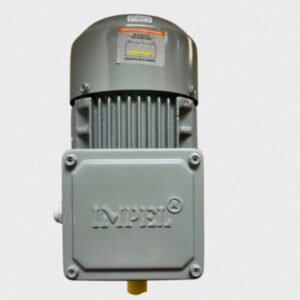

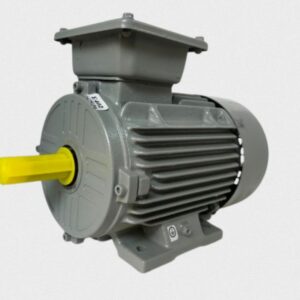

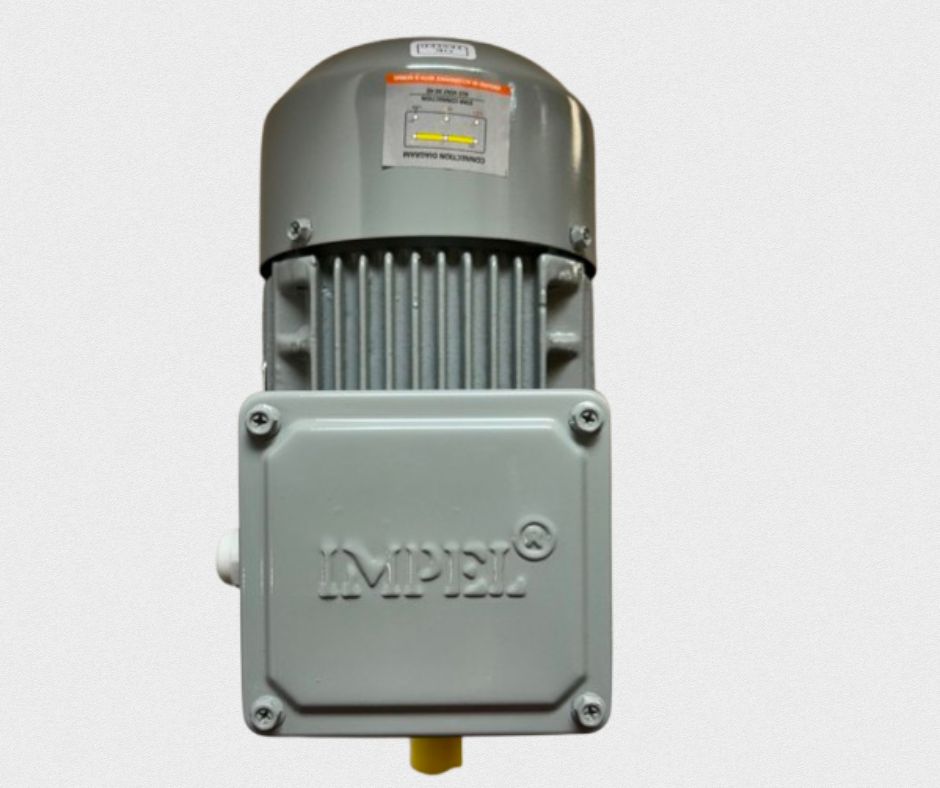

Impel 1.5 kw 2.0HP 2 Pole IE2 2860RPM B3 Foot Mounted 90 Frame 415V Motor

Impel 1.5 kw 2.0HP 2 Pole IE2 2860RPM B3 Foot Mounted 90 Frame 415V Motor

Full  Specifications:

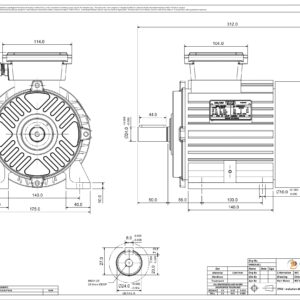

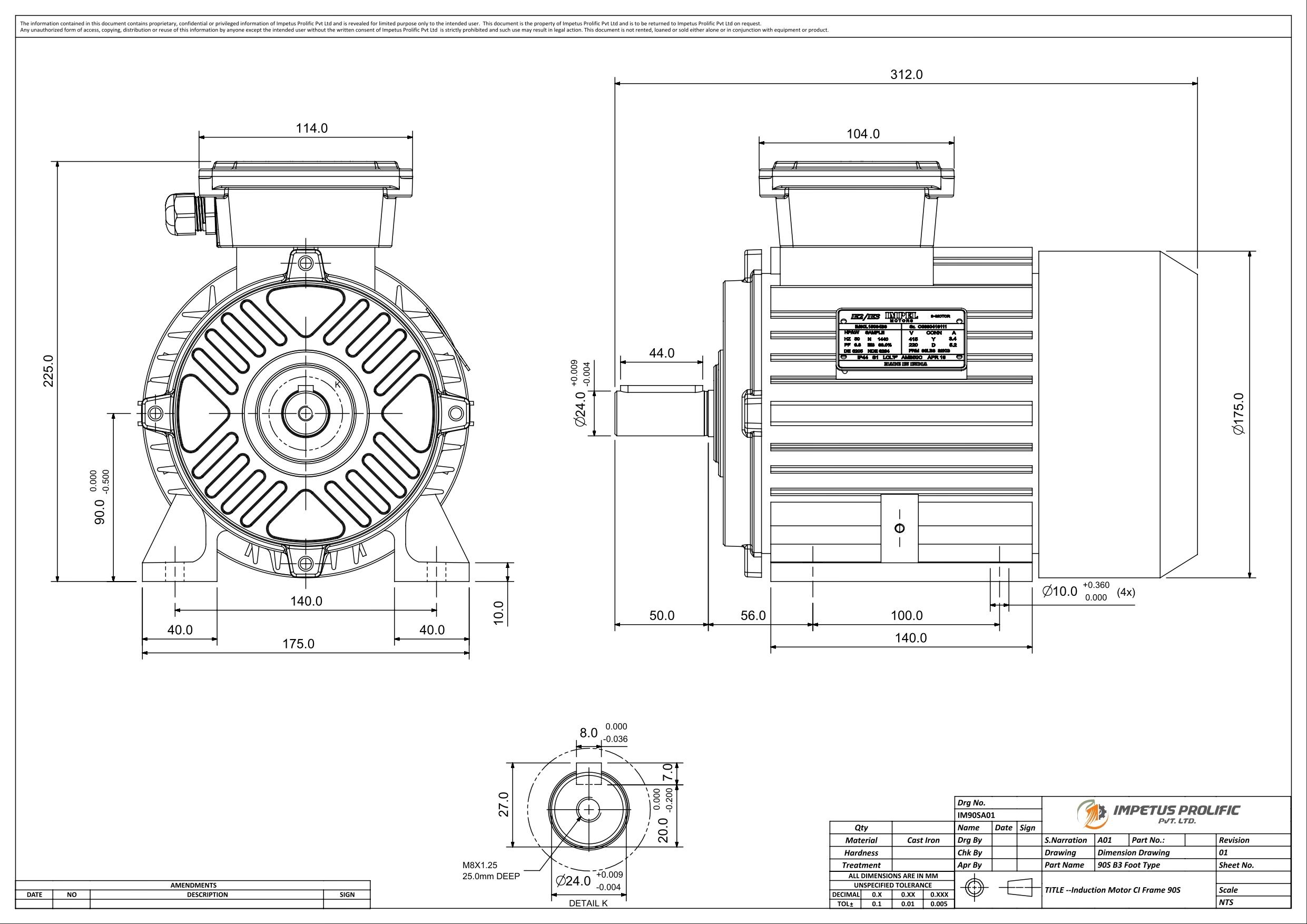

• Frame Size: 90S
  A compact and standardized frame suitable for a wide range of industrial mounting configurations.
• Cooling Method: IC 411 – TEFC (Totally Enclosed Fan Cooled)
  The motor is enclosed and cooled by an external fan, protecting it from dust, moisture, and external particles while ensuring efficient heat dissipation.
• Rated Output: 2.0 HP (1.5 kW)
  Delivers sufficient mechanical power for medium-duty industrial applications like pumps, compressors, blowers, conveyors, and general machinery.
• Mounting Type: B3
  Offers flexible mounting options – foot-mounted (B3), flange-mounted (B5), or a combination of both (B35), making it versatile for various installations.
• Number of Poles: 2
  Enables high-speed operation, typically around 3000 rpm at 50 Hz, ideal for applications requiring fast rotation.
• Direction of Rotation: Both Clockwise (CW) & Counterclockwise (CCW)
  Motor can run in both directions, useful in applications requiring reverse operation.
• Rated Frequency: 50 Hz ±5%
  Designed to perform reliably under standard industrial power frequency, with tolerance for slight frequency variations.
• Insulation Class: F
  Ensures the winding insulation can withstand up to 155°C, providing thermal safety in higher temperature environments.
• Rated Voltage: 415 V ±10%
  Suitable for 3-phase industrial power systems and can handle minor voltage fluctuations.
• Duty Cycle: Continuous (S1)
  Designed for uninterrupted full-load operation without overheating, ideal for 24/7 industrial usage.
• Rated Current: 3.1 A
  Draws 3.1 amperes under full load, important for sizing cables, overload relays, and starters.
• Ambient Temperature: 50°C
  Can operate safely in high ambient temperature environments, typical in tropical or heavy-duty industrial settings.
• Rated Speed: 2860 rpm
  Slightly below synchronous speed due to slip, typical for a 2-pole motor operating at 50 Hz.
• Protection Degree: IP55
  Offers protection against dust ingress and low-pressure water jets, making it suitable for moderately harsh environments.
• Slip: 4.66%
  Indicates the percentage difference between synchronous and actual running speed – the lower the slip, the higher the efficiency.
• Starting Current: 650% of rated current
  Motor takes 6.5 times its rated current during direct-on-line (DOL) startup, typical for induction motors.
• Rated Torque: 4.90 Nm
  The torque delivered at rated load, suitable for most general-purpose drive systems.
• Breakaway Torque: 230%
  Also known as locked-rotor torque, it’s 2.3 times the rated torque – helps overcome initial load inertia during startup.
• Breakdown Torque: 240%
  The maximum torque the motor can produce before stalling – good for short-term overloads.
• Service Factor: 1.00
  Motor is rated to deliver full output without any additional overload margin – must not be continuously overloaded.
• Approximate Weight: 22 kg
  The motor has a moderate weight, making it easy to handle during installation and maintenance.
• Efficiency:
• At 50% load: 79.70%
• At 75% load: 80.90%
• At 100% load: 81.30%
  High efficiency at full load results in energy savings over time.
• Power Factor:
• At 50% load: 0.48
• At 75% load: 0.70
• At 100% load: 0.85
  Power factor improves with load, helping to reduce reactive power consumption from the grid.
• Bearing Type:
• Drive End: 6205 ZZ C3
• Non-Drive End: 6204 ZZ C3
  These are deep groove ball bearings with C3 clearance, suitable for high-speed applications.
