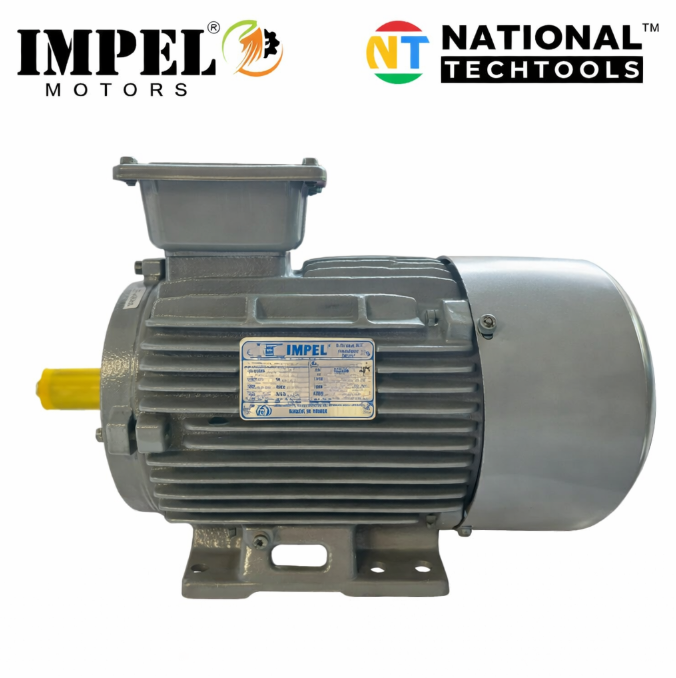

Impel 1.0HP 6 Pole IE2 920RPM B3 Foot Mounted 90 Frame 415V Induction Motor

Impel 1.0HP 6 Pole IE2 920RPM B3 Foot Mounted 90 Frame 415V Induction Motor

Full  Specifications :

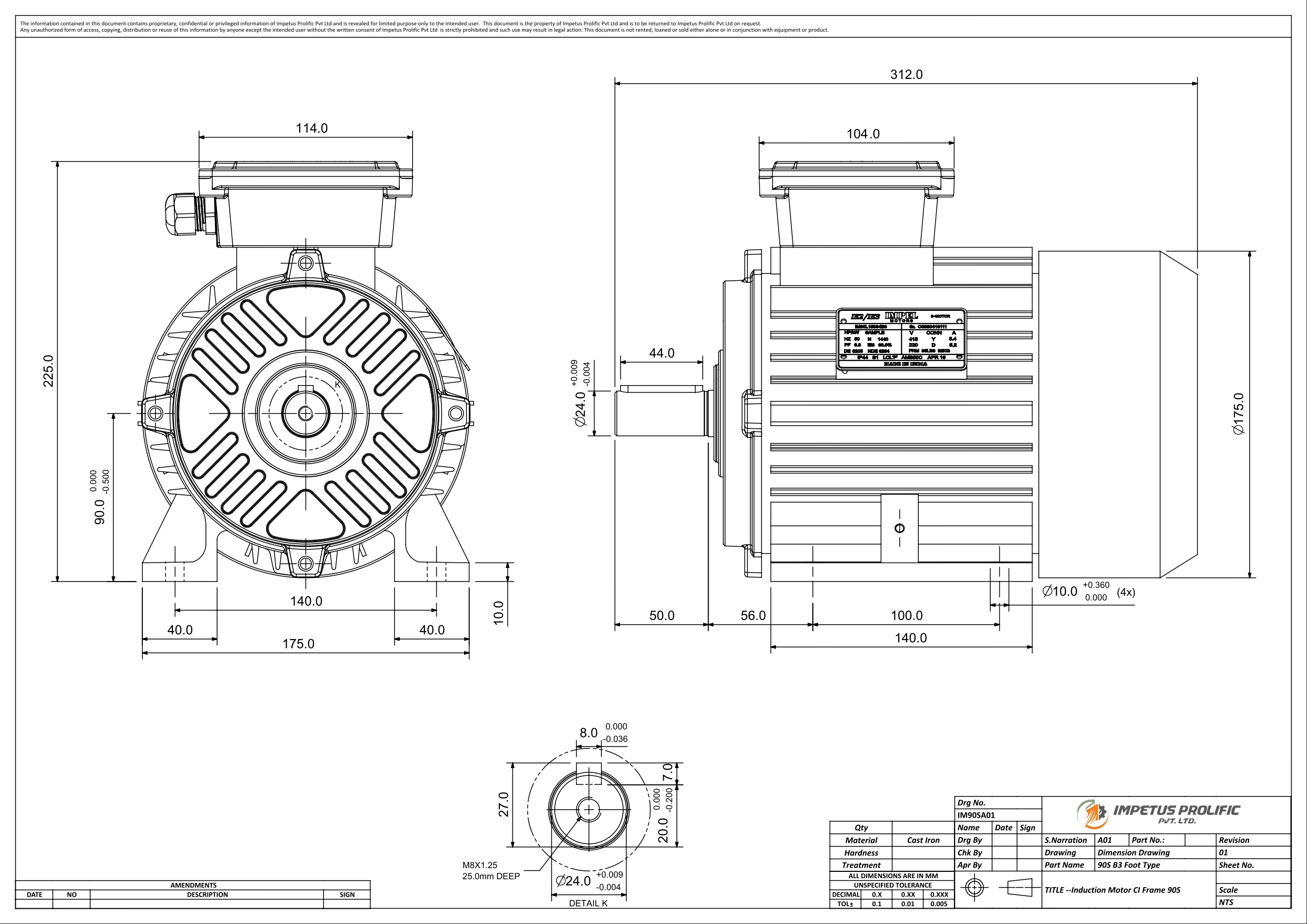

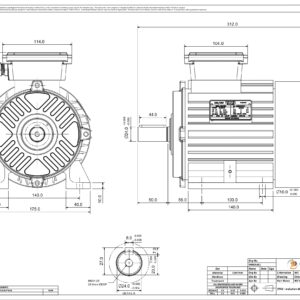

This 1.0 HP (0.75 kW) electric motor, built with a robust 90S frame size, is a highly efficient and durable machine designed for low-speed industrial applications. With a 6-pole configuration, it operates at a rated speed of 920 rpm, making it ideal for operations requiring high torque at lower speeds—such as mixers, conveyors, crushers, and specialized processing equipment.

The motor is equipped with an IC 411 cooling system and a Totally Enclosed Fan Cooled (TEFC) enclosure, ensuring superior thermal management and protection against external environmental factors like dust, moisture, and contaminants. This design allows the motor to run reliably in harsh or demanding industrial conditions. The mounting options include B3 (foot-mounted)providing excellent flexibility in mechanical integration.

Electrically, the motor is designed to operate at 415 V ±10%, 50 Hz ±5%, drawing a rated current of 2.0 A. It is suitable for continuous duty (S1) operation and can withstand ambient temperatures up to 50°C. The Class F insulation ensures thermal endurance and operational safety, while the IP55 protection rating offers resistance to dust ingress and water jets from any direction.

Key performance characteristics include:

• Rated Torque: 7.65 Nm
• Slip: 8%
• Starting Current: 600% of rated current
• Breakaway Torque: 200% of rated torque
• Breakdown Torque: 226% of rated torque
• Service Factor: 1.00

The motor maintains high efficiency across different load levels:

• Efficiency: 74.20% at 50% load, 75.00% at 75% load, and 75.90% at full load
• Power Factor: 0.55 at 50% load, 0.62 at 75% load, and 0.65 at full load

Mechanical reliability is ensured with 6205 ZZ C3 bearing on the drive end and 6204 ZZ C3 bearing on the non-drive end, both offering long life and low maintenance. Both ends are sealed using V’ Ring / Oil-seal systems, enhancing protection against contaminants and extending the motor’s operational lifespan.

With an approximate weight of 22 kg, this motor is a well-balanced combination of power, durability, and efficiency. Its capability to operate bi-directionally (CW & CCW), coupled with strong starting and breakdown torque performance, makes it a versatile and dependable solution for a wide variety of low-speed industrial applications.
