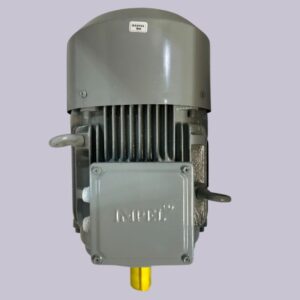

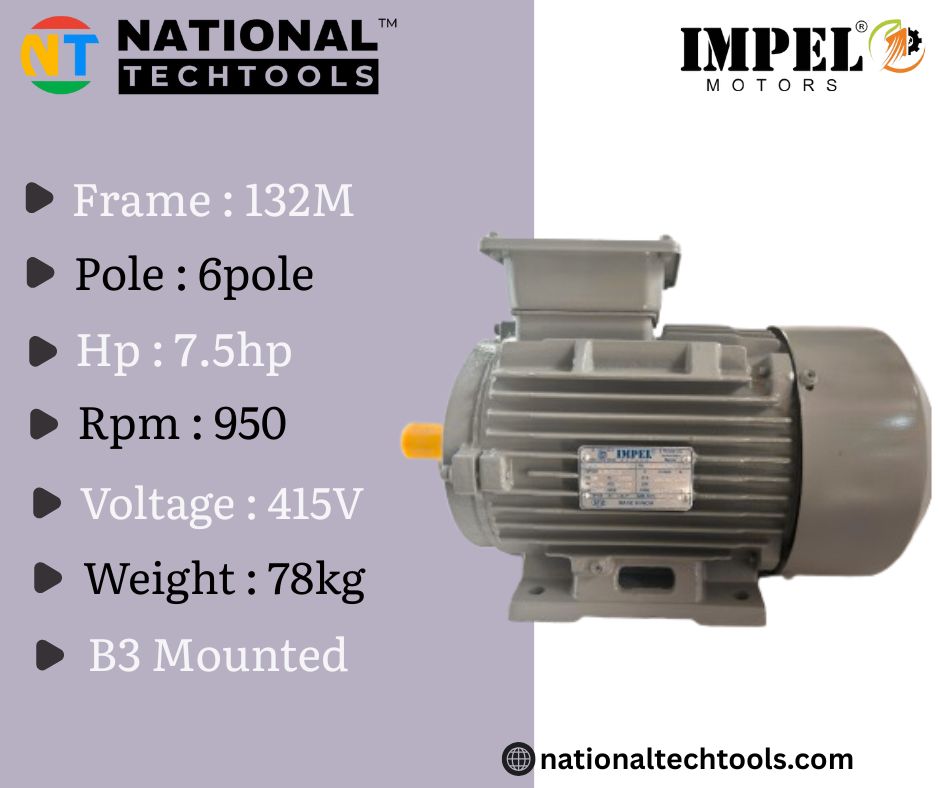

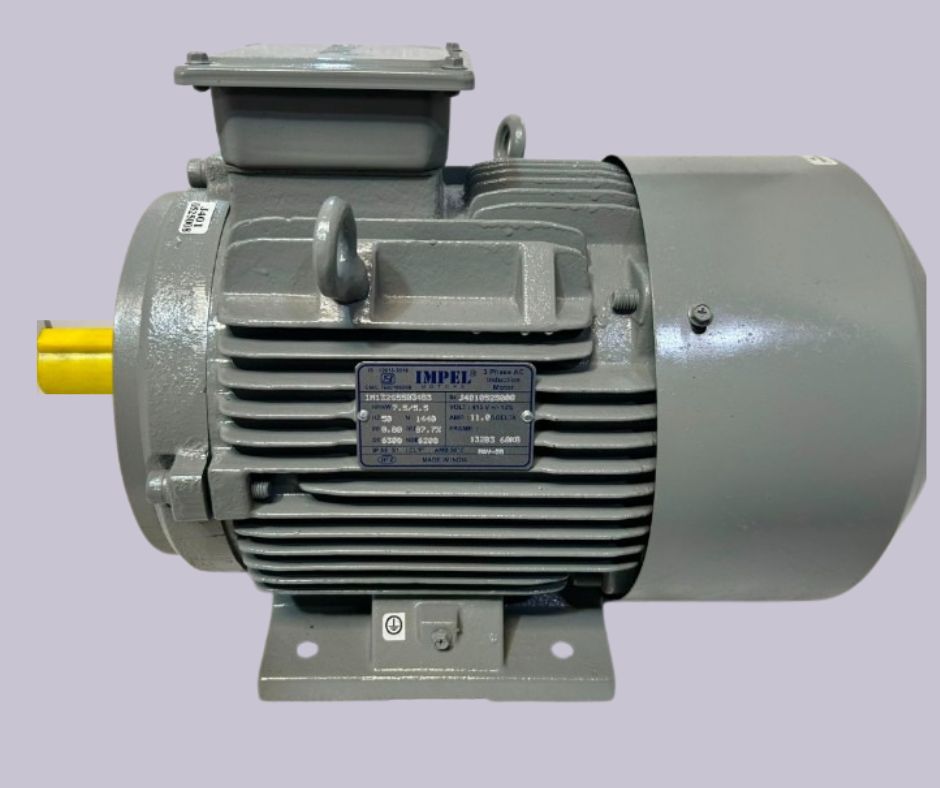

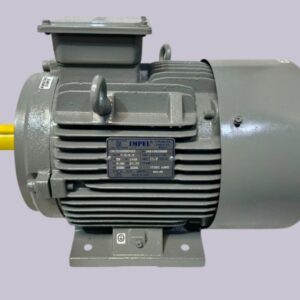

Impel 7.5HP 6 Pole IE2 950RPM B3 Foot Mounted 132MFrame 415V Motor

Impel 7.5HP 6 Pole IE2 950RPM B3 Foot Mounted 132MFrame 415V Motor

Full  Specification :

General Information

• Motor Frame Size: 132M
• Motor Type: 3-Phase Squirrel Cage Induction Motor
• Cooling Method: IC 411 – Totally Enclosed Fan Cooled (TEFC)
• Mounting Type: B3 (Foot) Number of Poles: 6
• Direction of Rotation: Bi-directional (Clockwise & Counter-Clockwise)
• Duty Cycle: S1 – Continuous operation
• Ambient Temperature: Up to 50°C
• Insulation Class: F (with temperature rise limited as per Class B if required)
• Protection Degree: IP55 – Dust protected and water jet resistant
• Service Factor: 1.00

2. Electrical Parameters

• Rated Output Power: 7.5 HP / 5.5 kW
• Rated Voltage: 415 V ±10%
• Rated Frequency: 50 Hz ±5%
• Rated Current: 12.2 A
• Rated Speed: 950 rpm
• Slip: 5.0%
• Power Factor:
  • At 50% Load: 0.57
  • At 75% Load: 0.67
  • At 100% Load: 0.70

3. Torque Characteristics

• Rated Torque: 53.4645 Nm
• Starting Current (Inrush): 650% of rated current
• Breakaway Torque: 210% of rated torque
• Breakdown Torque: 273% of rated torque

4. Performance Efficiency

• Efficiency at Load Levels:
  • At 50% Load: 84.50%
  • At 75% Load: 85.30%
  • At 100% Load: 86.00%

5. Mechanical Details

• Approximate Weight: 78 kg
• Bearings:
  • Drive End: 6308 ZZ C3
  • Non-Drive End: 6208 ZZ C3
• Sealing System :V’ Ring / Oil-Seal on both Drive and Non-Drive Ends
• Construction: Rigid cast iron frame for durability and vibration resistance

6. Standards & Compliance

• Conforms to: IEC standards for rotating electrical machines
• Application Areas: Industrial machinery, conveyors, fans, pumps, and compressors operating under continuous duty in demanding environments.
