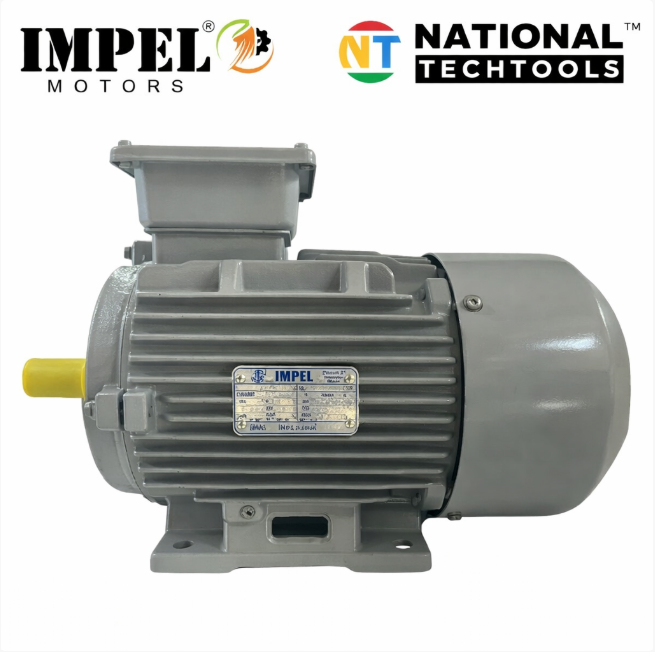

Impel 1.5KW 2.0 HP 6 Pole IE2 940 RPM B3 Foot Mounted 100L Frame 415V Motor

Impel 1.5 KW 2.0 HP 6 Pole IE2 940 RPM B3 Foot Mounted 100L Frame 415V Motor

Full  Specifications :

The 2.0 HP (1.5 kW) three-phase squirrel cage induction motor in Frame 100L is a robust and reliable solution designed for a wide range of industrial applications that require consistent and efficient power delivery. Engineered with an IC 411 cooling system and a Totally Enclosed Fan Cooled (TEFC) enclosure, this motor ensures optimal thermal management and protection from dust, moisture, and other environmental contaminants, making it ideal for harsh operating conditions.

This motor features a 6-pole configuration and operates at a standard frequency of 50 Hz with a rated voltage of 415 V (±10%). It provides a rated speed of 940 rpm with a slip of 6.0%, delivering a high torque output of 15.033 Nm. With a starting current of 600% and a duty cycle of S1 (continuous operation), the motor is built for endurance and stability under prolonged loads. Its torque characteristics are strong, featuring a breakaway torque of 210% and a breakdown torque of 221%, ensuring reliable startup and overload performance.

The motor incorporates Class F insulation, providing enhanced thermal resistance and long operational life in environments with ambient temperatures up to 50 ºC. Its protection class of IP55 safeguards internal components against dust ingress and water jets, further contributing to its durability in demanding settings.

Performance is optimized across various load conditions, with efficiency levels reaching up to 79.80% at full load and power factors ranging from 0.58 to 0.75 across the operating range (50%–100% load). This balance of energy efficiency and power factor helps reduce energy consumption and improve system performance.

Mechanically, the motor is equipped with high-quality deep groove ball bearings—6206 ZZ C3 on the drive end and 6204 ZZ C3 on the non-drive end—ensuring smooth operation and reduced maintenance. The V’ Ring and oil-seal system on both ends enhances bearing protection against contamination and leakage.

Weighing approximately 34 kg, this motor is suitable for various mounting arrangements including B3 (foot) offering flexibility for integration into different machinery setups. Capable of both clockwise (CW) and counterclockwise (CCW) rotation, this motor supports diverse application requirements with ease.

In summary, the 2.0 HP (1.5 kW), Frame 100L, 6-pole induction motor is a high-performance, energy-efficient, and durable solution for continuous-duty operations across industrial sectors, offering dependable torque, thermal stability, and mechanical resilience.
