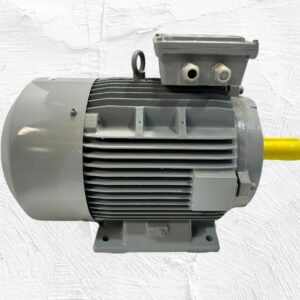

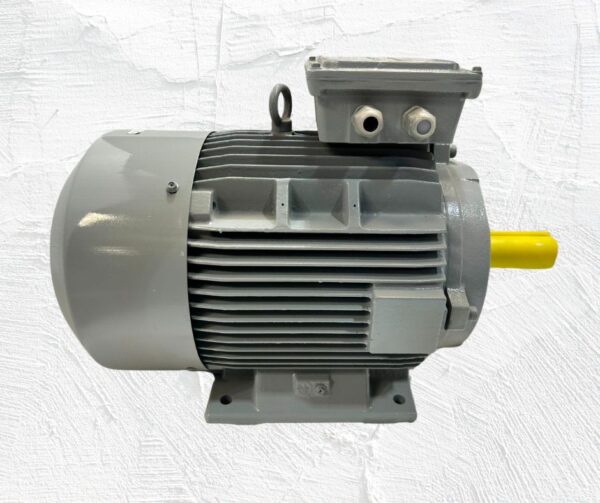

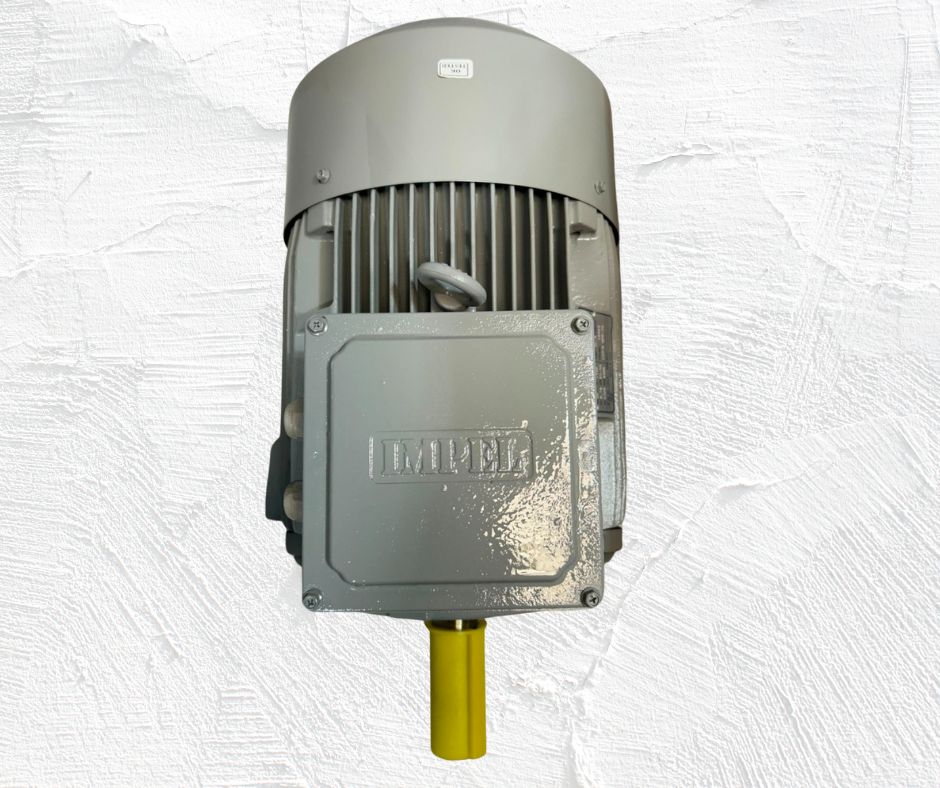

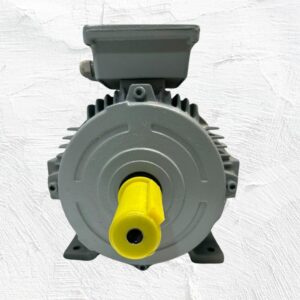

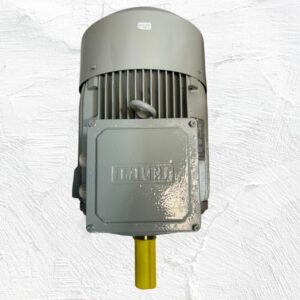

Impel 10HP 6 Pole IE2 950RPM B3 Foot Mounted 160MFrame 415V Motor

Impel 10HP 6 Pole IE2 950RPM B3 Foot Mounted 160MFrame 415V Motor

Full Specificatation :

The 160M frame, 10 HP (7.5 kW) electric motor is a high-performance, robust squirrel cage induction motor designed for demanding industrial applications. Built with a totally enclosed fan-cooled (TEFC) construction and utilizing the IC 411 cooling method, this motor ensures effective heat dissipation and extended operational life in harsh environments. It is engineered to operate on a standard 415V ±10% voltage at 50 Hz ±5% frequency and is suitable for continuous duty (S1), making it ideal for applications that require non-stop operation under full load.

With a 6-pole configuration, the motor delivers a rated speed of 950 RPM and generates a rated torque of 72.88 Nm. The motor features a 4% slip, allowing for smooth performance and efficient operation. Its starting current is rated at 700% of the rated current, providing sufficient torque to start heavy loads. The motor boasts a breakaway torque of 210% and a breakdown torque of 263%, ensuring reliable performance during high torque demands and mechanical load fluctuations. The service factor of 1.00 highlights the motor’s capability to handle its rated load without overloading under specified operating conditions.

This motor is constructed with insulation class F, ensuring safe operation at high ambient temperatures up to 40°C. It also carries an IP55 degree of protection, safeguarding it against dust ingress and water jets from any direction, making it suitable for use in challenging industrial environments. The dual rotation capability (both clockwise and counterclockwise) enhances its versatility for a wide range of applications.

Energy efficiency is another key feature of this motor. It offers an efficiency of 86.00% at 50% load, 86.77% at 75% load, and 87.20% at full load, helping to reduce energy consumption and operational costs over time. The power factor ranges from 0.60 to 0.74 across different load conditions, contributing to improved electrical performance.

The motor is equipped with high-quality bearings—6309 ZZ C3 on both the drive and non-drive ends—ensuring smooth, quiet, and low-maintenance operation. Additionally, the sealing system incorporates V’ Ring and oil-seals on both ends to protect the internals from contamination and moisture, further enhancing durability.

With flexible mounting options B3 and an approximate weight of 110 kg, this motor offers a reliable and efficient solution for various mechanical and industrial drives, including conveyors, pumps, compressors, and machinery requiring low-speed, high-torque output.
