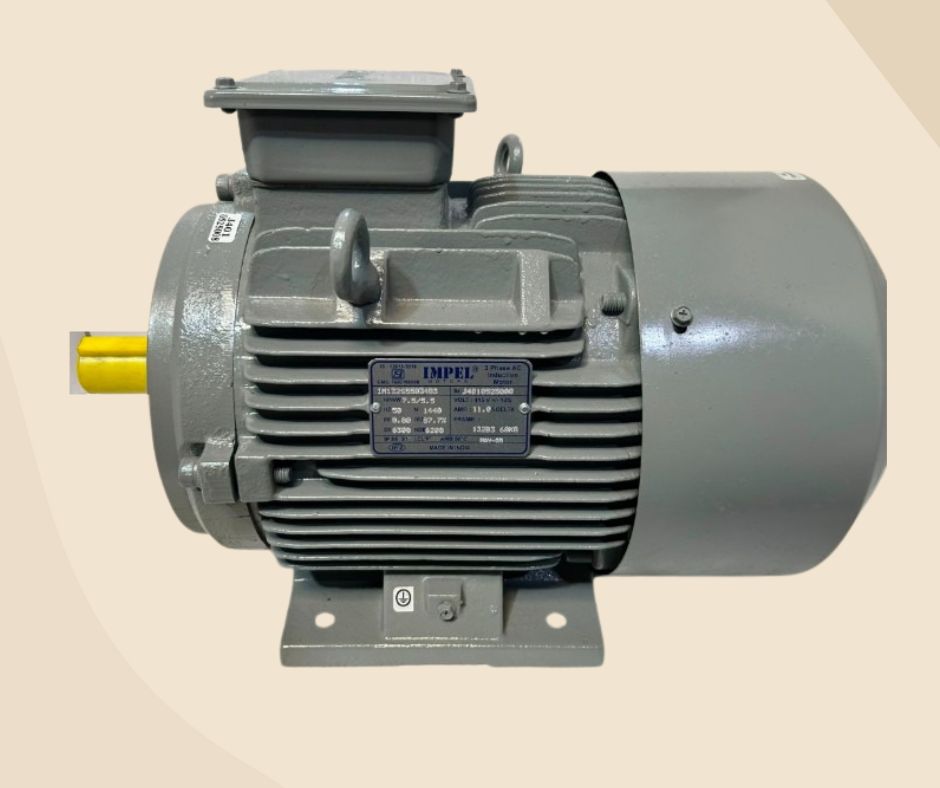

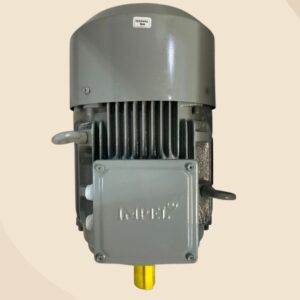

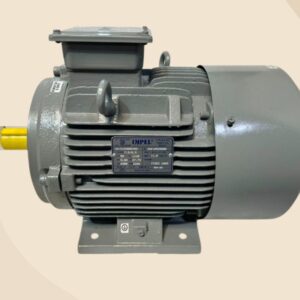

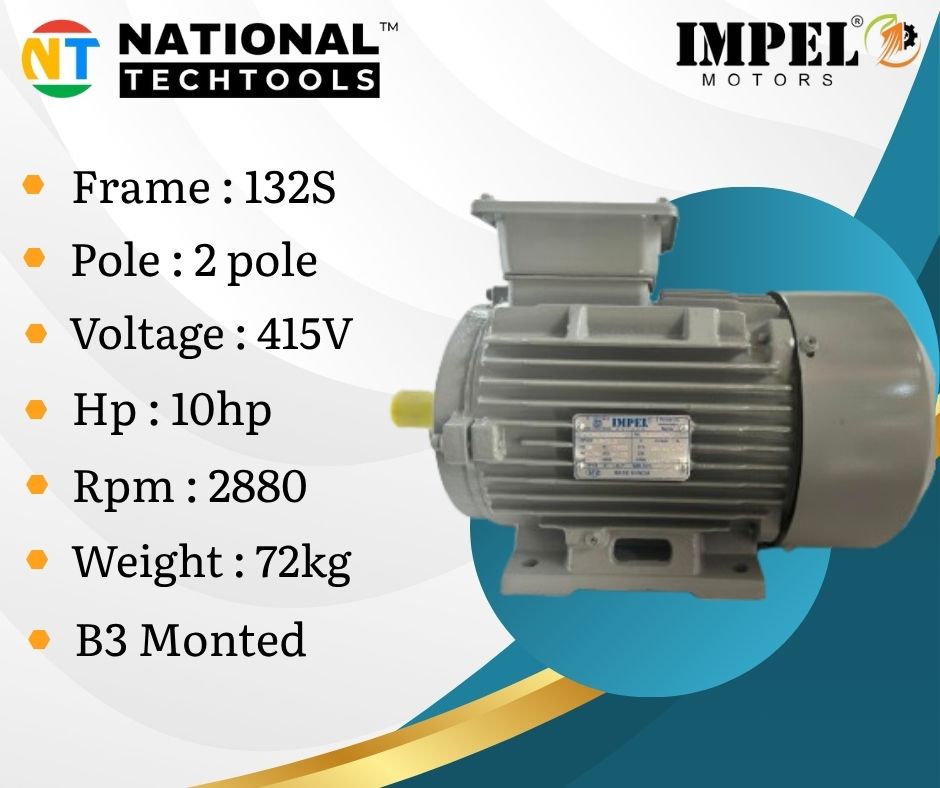

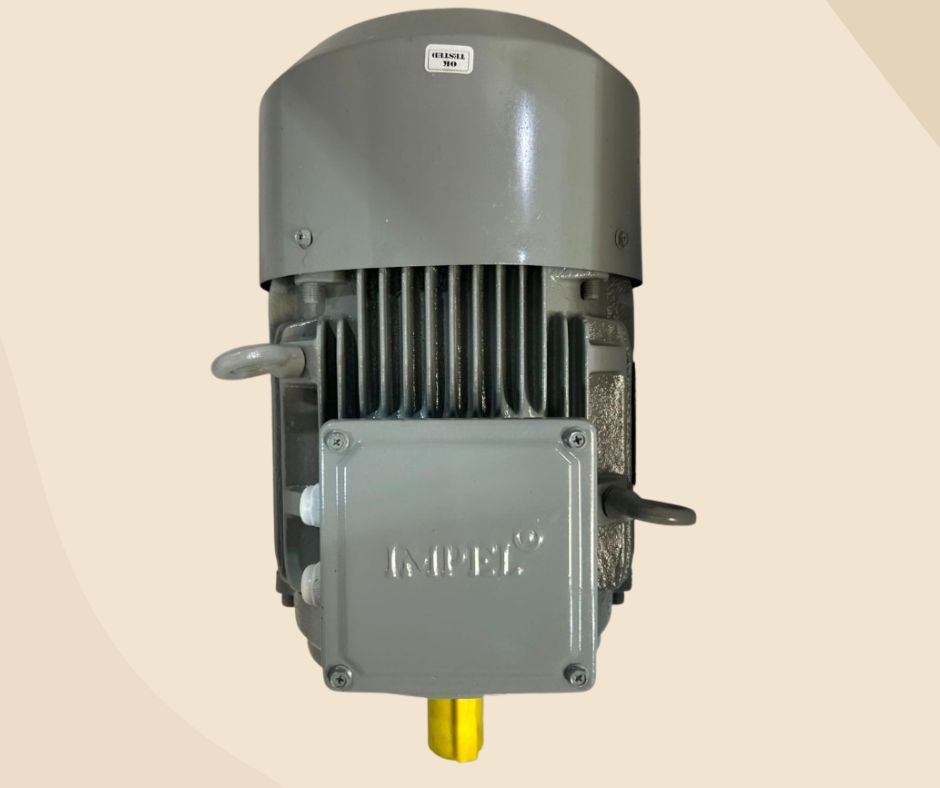

Impel 10HP 2 Pole IE2 2880RPM B3 Foot Mounted 132SFrame 415V Motor

Impel 10HP 2 Pole IE2 2880RPM B3 Foot Mounted 132SFrame 415V Motor

Full  Specifications :

🔧 General Information:

• Frame Size: 132S
  The motor is constructed on a 132S frame, offering a compact footprint with robust mechanical stability, commonly used in medium-to-heavy-duty industrial machinery.
• Mounting Arrangement: B3
  • B3 – Foot-mounted

These options allow for versatile installation across a wide range of machine setups.

• Cooling Method: IC 411 – TEFC (Totally Enclosed Fan Cooled)
  The motor uses a shaft-mounted external fan to blow air over the ribbed motor housing. The TEFC enclosure protects internal components from dust and moisture, ensuring longer life in industrial environments.
• Direction of Rotation: Clockwise and Counterclockwise (CW & CCW)
  The motor supports bi-directional rotation, making it suitable for reversible drives and applications needing frequent direction change.

⚡ Electrical Characteristics:

• Rated Power Output: 10.0 HP / 7.5 kW
  This output is suitable for powering medium-to-heavy load equipment like pumps, compressors, fans, and conveyors.
• Rated Voltage: 415 V ±10%
  Designed for standard three-phase supply systems, with tolerance for voltage variations commonly seen in industrial settings.
• Rated Frequency: 50 Hz ±5%
  Operates reliably within the nominal 50 Hz frequency band with minor deviations.
• Rated Current: 13.5 A
  The current drawn by the motor under full-load conditions.
• Insulation Class: F
  The windings are insulated to withstand temperature rises up to 105°C, with a total thermal limit of 155°C, ensuring thermal protection and durability.
• Duty Cycle: S1 – Continuous Duty
  Rated for continuous operation at full load, ideal for steady, uninterrupted industrial processes.
• Ambient Temperature: Up to 50 ºC
  Engineered to perform consistently even in high-temperature industrial environments.
• Protection Degree: IP55
  Offers protection against limited dust ingress and water jets from all directions, suitable for indoor and outdoor industrial applications.

⚙️ Performance Characteristics:

• Number of Poles: 2
  Indicates high-speed performance, commonly used where high RPMs are necessary.
• Rated Speed: 2880 rpm
  Slightly below synchronous speed due to normal slip in an induction motor.
• Slip: 4.0%
  The percentage difference between synchronous and actual speed under load.
• Starting Current: 700% of rated current
  High inrush current during startup; suitable for use with DOL starters or soft starters/VFDs.
• Rated Torque: 24.52 Nm
  The mechanical torque generated by the motor at full load and rated speed.
• Breakaway (Starting) Torque: 200% of rated torque
  Sufficient torque to overcome the initial resistance of stationary machinery.
• Breakdown Torque: 270% of rated torque
  Maximum torque that the motor can produce without stalling, providing excellent overload capacity.
• Service Factor: 1.00
  The motor is designed to operate continuously at its rated power without overloading.

📈 Efficiency & Power Factor:

• Efficiency:
  • At 50% Load: 87.00%
  • At 75% Load: 87.50%
  • At 100% Load: 88.10%
    These values reflect a high-efficiency motor, reducing energy losses and operational costs over time.
• Power Factor:
  • At 50% Load: 0.75
  • At 75% Load: 0.84
  • At 100% Load: 0.86
    A good power factor improves energy usage and reduces reactive power drawn from the power supply.

⚙️ Mechanical Construction:

• Bearings:
  • Drive End: 6308 ZZ C3
  • Non-Drive End: 6208 ZZ C3
    These are deep groove ball bearings with C3 clearance and ZZ shielding, suitable for high-speed operation and longer service life.
• Sealing:
  • V’ Ring / Oil-seal on both drive and non-drive ends to prevent dust, dirt, and moisture ingress, enhancing bearing life and reducing maintenance.
• Approximate Weight: 72 kg
  The motor has a medium build, suitable for fixed-base installations and adaptable with lifting/handling equipment.
