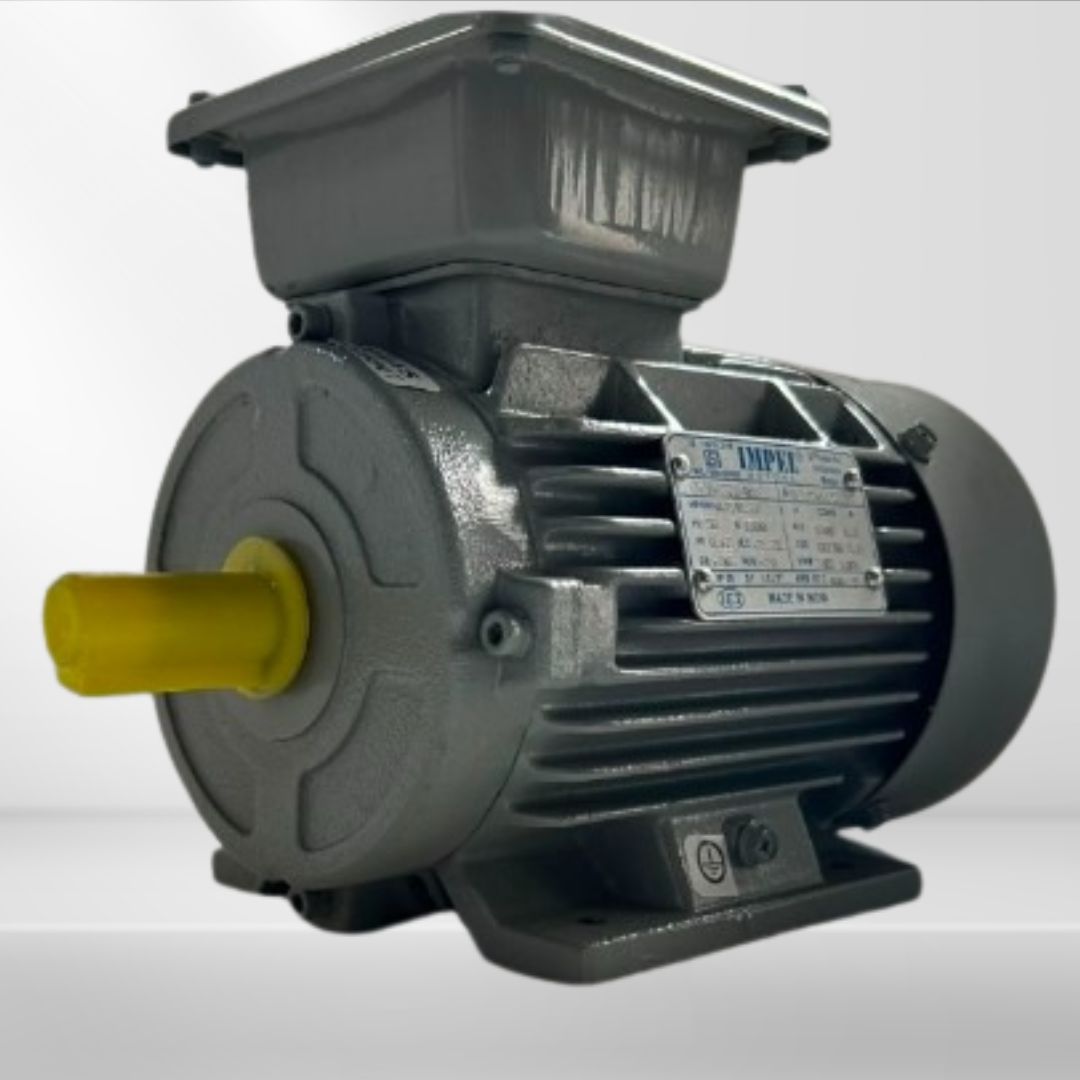

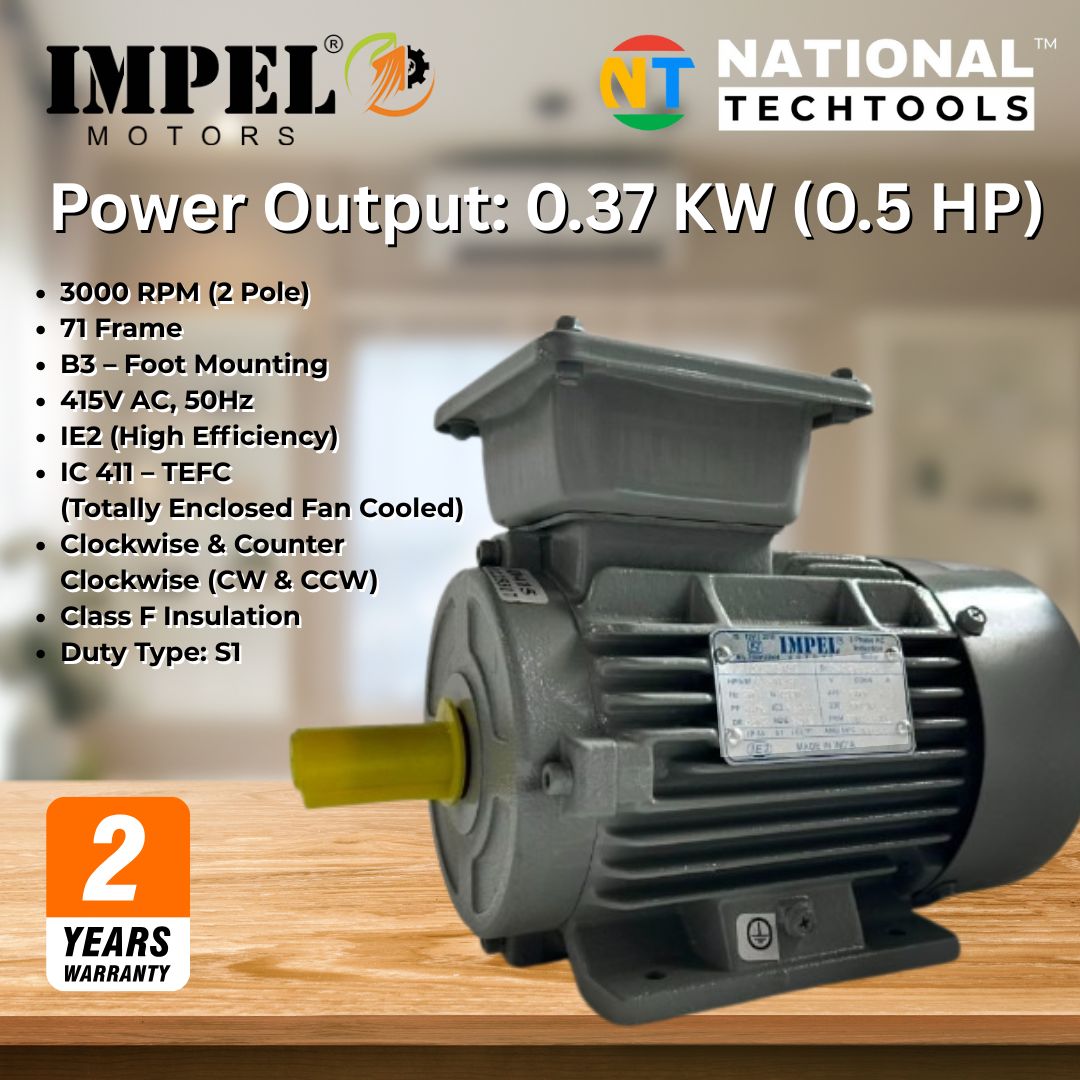

Impel 0.37KW 0.5 HP 2 Pole IE2 3000 RPM B3 Foot Mounting 71 Frame 415V Three-Phase Squirrel Cage Induction Motor
Quality Build:
-
Bearings: Premium 6203 ZZ C3 bearings on both drive and non-drive ends for smooth, reliable operation.
-
Sealing: V’Ring/Oil Seal protection to prevent dust and moisture ingress, extending motor life.
-
Durability: Rugged housing with high-quality materials for corrosion resistance and long service life.
Applications:
Ideal for:
-
Pumps and compressors
-
Fans and blowers
-
Conveyors
-
Machine tools
-
Light industrial and general mechanical uses
Why Choose Impel Motors?
Robust squirrel cage design for low maintenance and high reliability
IE2 energy efficiency reduces operating costs
Compact and lightweight – easy to install and integrate
Designed and tested to meet stringent industry standards
Note: This motor does not include built-in thermal overload protection for this power range (only for 5.5 kW and above). For added safety, install proper external protection as required.
Order your Impel Three-Phase Induction Motor today and power your operations with proven performance and lasting value.
Impel 0.37KW 0.5 HP 2 Pole IE2 3000 RPM B3 Foot Mounting 71 Frame 415V Three-Phase Squirrel Cage Induction Motor
Original price was: ₹4,500.₹3,999Current price is: ₹3,999.
Impel 0.37KW 0.5 HP 2 Pole IE2 3000 RPM B3 Foot Mounting 71 Frame 415V Three-Phase Squirrel Cage Induction Motor
Key Specifications:
-
Model: IM7103732
-
Output Power: 0.5 HP (0.37 kW)
-
Rated Speed: 2800 RPM
-
Frame Size: 71
-
Number of Poles: 2
-
Mounting Types: B3 Foot, B5 Flange, B35 Combined
-
Cooling Method: IC 411 – Totally Enclosed Fan Cooled (TEFC)
-
Voltage: 415V ±10% (50 Hz ±5%)
-
Rated Current: 1.0 A
-
Insulation Class: F
-
Duty Cycle: Continuous (S1)
-
Protection Degree: IP55 – Dust and Water Jet Resistant
-
Rotation: Bi-directional (Clockwise & Counter-Clockwise)
-
Ambient Temperature: Up to 50°C
-
Service Factor: 1.00
-
Approximate Weight: 13 kg
Performance Highlights:
-
Slip: 6.6%
-
Starting Current: 500%
-
Breakaway Torque: 210%
-
Breakdown Torque: 245%
-
Rated Torque: 1.27 Nm
-
Power Factor: 0.71 (50% load) to 0.85 (100% load)
-
Efficiency: Up to 69.50% at full load
Estimated delivery:3 days
Impel 0.37KW 0.5 HP 2 Pole IE2 3000 RPM B3 Foot Mounting 71 Frame 415V Three-Phase Squirrel Cage Induction Motor
Quality Build:
-
Bearings: Premium 6203 ZZ C3 bearings on both drive and non-drive ends for smooth, reliable operation.
-
Sealing: V’Ring/Oil Seal protection to prevent dust and moisture ingress, extending motor life.
-
Durability: Rugged housing with high-quality materials for corrosion resistance and long service life.
Applications:
Ideal for:
-
Pumps and compressors
-
Fans and blowers
-
Conveyors
-
Machine tools
-
Light industrial and general mechanical uses
Why Choose Impel Motors?
Robust squirrel cage design for low maintenance and high reliability
IE2 energy efficiency reduces operating costs
Compact and lightweight – easy to install and integrate
Designed and tested to meet stringent industry standards
Note: This motor does not include built-in thermal overload protection for this power range (only for 5.5 kW and above). For added safety, install proper external protection as required.
Order your Impel Three-Phase Induction Motor today and power your operations with proven performance and lasting value.
