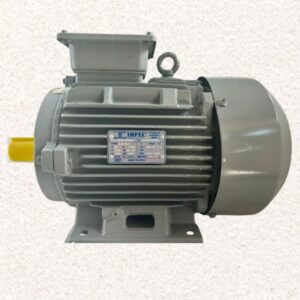

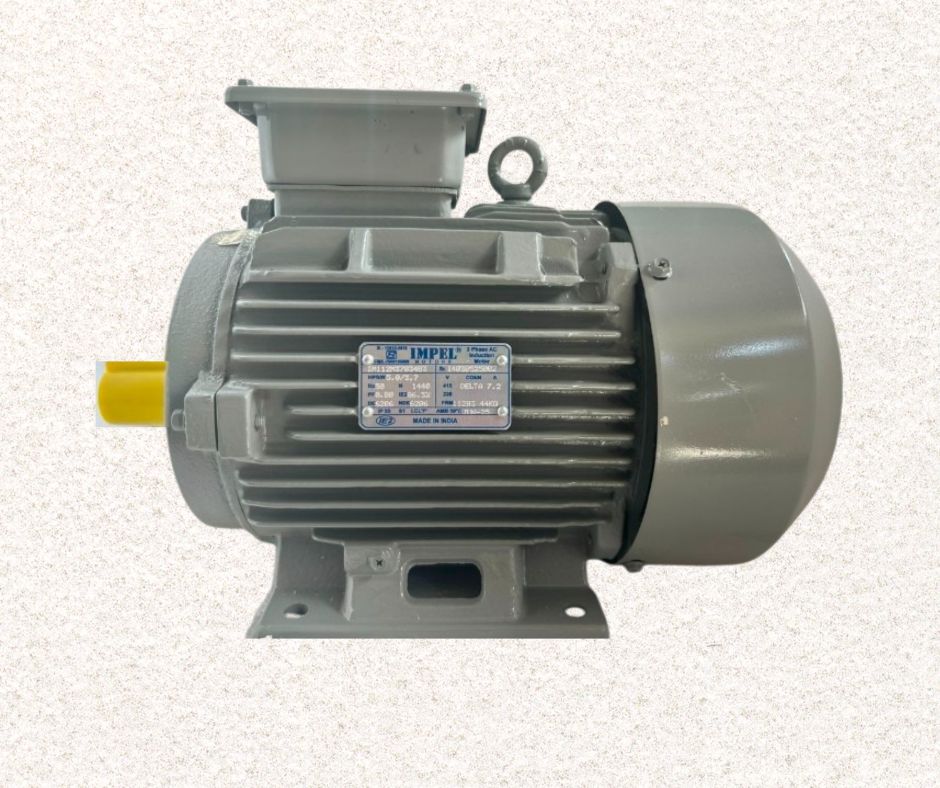

Impel 3.0HP 6Pole IE2 940RPM B3 Foot Mounted 112MFrame 415V Motor

Impel 3.0HP 6Pole IE2 940RPM B3 Foot Mounted 112MFrame 415V Motor

Full  Specifications :

The 3.0 HP (2.2 kW) three-phase induction motor in a 112M frame is a robust and efficient solution for a wide range of industrial applications requiring high torque at lower speeds. Designed for continuous operation (S1 duty cycle), this motor runs at a rated speed of 940 RPM with a 6-pole configuration, making it ideal for machinery that requires smooth, consistent power delivery.

Constructed with a Totally Enclosed Fan Cooled (TEFC) enclosure and an IC 411 cooling method, the motor ensures optimal thermal management while offering protection from dust, water, and other environmental factors, conforming to the IP55 protection class. It can operate in ambient temperatures up to 50°C, ensuring reliability in demanding environments.

The motor is rated for a voltage of 415 V at a frequency of 50 Hz (±5%), with an insulation class of F, allowing it to withstand higher operating temperatures and ensuring long-term durability. It draws a rated current of 5.4 A and has a slip of 6%, with high starting and breakdown torque capabilities—230% and 250% respectively—making it suitable for heavy-duty startup loads and dynamic load conditions.

The rated torque output of 21.68 Nm is complemented by solid performance metrics across load levels: efficiency ranges from 80.00% at 50% load to 81.80% at full load, while the power factor improves from 0.45 at half load to 0.65 at full load, indicating better energy utilization as load increases.

Mounting versatility is provided through B3 allowing integration into various systems and installations. The motor’s shaft and housing are supported by high-quality deep groove ball bearings—6206 ZZ C3 at the drive end and 6204 ZZ C3 at the non-drive end—offering smooth operation and longevity. Both ends are sealed with V’ Ring or oil-seals to prevent contamination and maintain lubrication integrity.

With an approximate weight of 44 kg, the motor is both manageable in size and substantial in construction, delivering the reliability and performance expected in demanding industrial setups. This motor is an excellent choice for applications such as conveyors, fans, pumps, and other machinery requiring dependable, low-speed, high-torque output.
