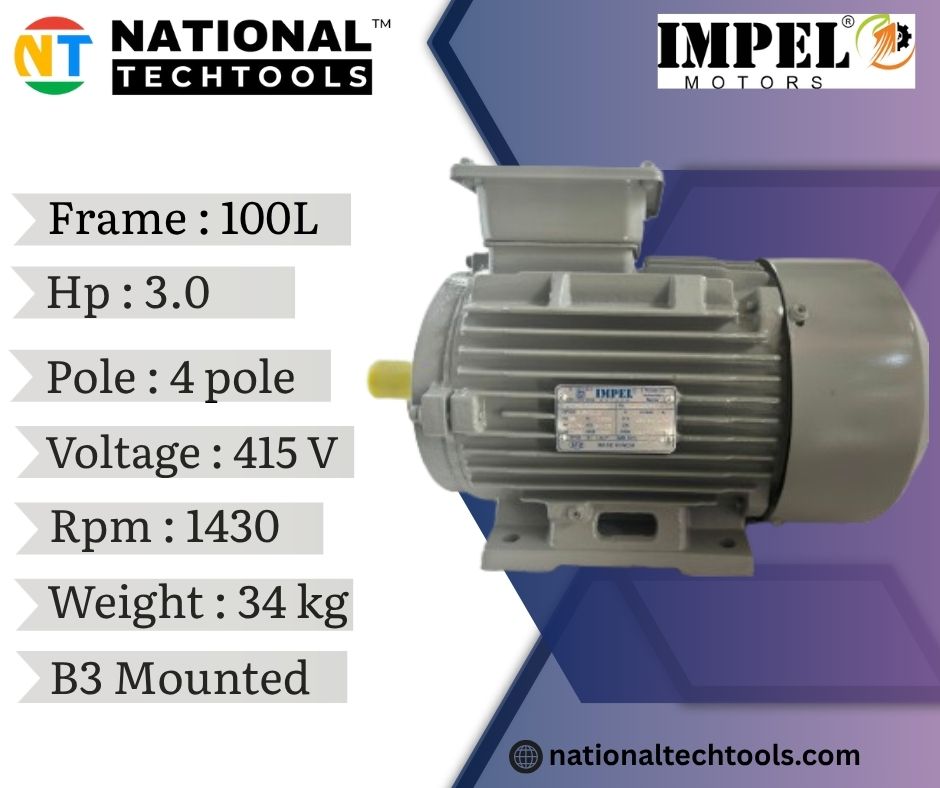

Impel 2.2KW 3.0HP 4 Pole IE2 1430 RPM B3 Foot Mounted 100L Frame 415V Motor

Impel 2.2KW 3.0HP 4 Pole IE2 1430 RPM B3 Foot Mounted 100L Frame 415V Motor

Full  Specifications :

This 3.0 HP (2.2 kW) three-phase squirrel cage induction motor, housed in a 100L frame, is engineered for durability, high efficiency, and versatile industrial applications. It operates at a rated voltage of 415 V ±10% and frequency of 50 Hz ±5%, making it suitable for standard industrial power supplies. With a 4-pole design, the motor delivers a rated speed of 1430 RPM and provides smooth and stable operation with both clockwise (CW) and counterclockwise (CCW) rotation capabilities.

The motor is designed for continuous duty (S1) and features a cooling system categorized as IC 411 – Totally Enclosed Fan Cooled (TEFC), which ensures effective thermal regulation and reliable performance even in harsh environments. The insulation class is F, supporting high thermal endurance, and the protection rating is IP55, safeguarding against dust ingress and water jets from any direction.

It delivers a rated torque of 14.52 Nm with a service factor of 1.00, ensuring consistent performance under normal loading. The motor demonstrates excellent torque characteristics, including a high starting current of 650%, breakaway torque at 230%, and breakdown torque at 290%, making it suitable for applications requiring frequent starts and heavy-duty performance.

Efficiency ratings stand at 83.00%, 83.70%, and 84.30% at 50%, 75%, and 100% load respectively, contributing to reduced energy consumption and operational costs. Power factor also improves with load, ranging from 0.59 to 0.76, optimizing power usage across varying conditions.

This motor incorporates high-quality bearings—6206 ZZ C3 on the drive end and 6204 ZZ C3 on the non-drive end—ensuring smooth rotation and extended service life. Both ends are sealed using V’ Ring or oil seals to prevent contamination and ensure long-term reliability. Weighing approximately 34 kg, the motor offers flexible mounting configurations B3 making it adaptable for diverse mechanical installations.

In summary, this motor combines robust mechanical construction, energy efficiency, and versatile mounting with strong electrical performance, making it ideal for use in compressors, pumps, conveyors, and general-purpose industrial machinery.
