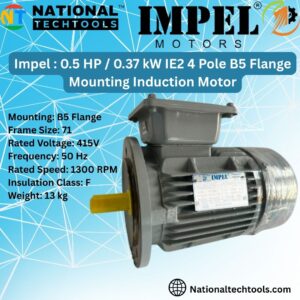

4 pole 3 phase motors

Specifications:

• Frame Size: 71
• Power Output: 0.5 HP / 0.37 kW
• Poles: 4
• Speed: 1380 rpm
• Cooling Method: IC 411 – TEFC
• Mounting: B3
• Rotation: CW & CCW
• Frequency: 50 Hz
• Voltage: 415 V
• Current: 1.2 A
• Duty Cycle: S1 (Continuous)
• Insulation Class: F
• Ambient Temp: 50°C
• Protection: IP55
• Efficiency (%): 71.00 (50%), 72.20 (75%), 72.70 (100%)
• Power Factor: 0.50 (50%), 0.60 (75%), 0.63 (100%)
• Slip: 8%

        Torque:

• Rated: 2.55 Nm
• Breakaway: 200%
• Breakdown: 220%
• Starting Current: 500%
• Service Factor: 1.00
• Bearings: 6203 ZZ C3 (Both Ends)
• Sealing: V’Ring / Oil-seal (Both Ends)
• Approx. Weight: 13 kg

Impel 1.5 HP 4 Pole IE2 1420 RPM B5 Flange Mounted 132 Frame 415V Three-Phase Squirrel motor

Specifications :

• Frame Size: 90S
• Output Power: 1.5 HP / 1.1 kW
• Poles: 4
• Rated Speed: 1420 RPM
• Cooling Method: IC 411 – TEFC
• Mounting: B5
• Rated Voltage: 415 V ±10%
• Frequency: 50 Hz ±5%
• Rated Current: 2.35 A
• Insulation Class: F
• Duty Cycle: Continuous (S1)
• Ambient Temperature: 50°C
• Protection Degree: IP55
• Rotation: Clockwise & Counterclockwise (CW & CCW)
• Slip: 5.33%

Impel 1.5HP 4Pole IE2 1420RPM B3 Foot Mounting 90Frame 415V Motor

Specifications :

• Frame Size: 90S
• Cooling Method: IC 411 – TEFC (Totally Enclosed Fan Cooled)
• Output Power: 1.5 HP / 1.1 kW
• Mounting Types: B3
• Poles: 4
• Rotation: Both Clockwise (CW) & Counterclockwise (CCW)
• Frequency: 50 Hz (±5%)
• Rated Voltage: 415 V (±10%)
• Rated Current: 2.35 A
• Rated Speed: 1420 rpm
• Slip: 5.33%
• Insulation Class: F
• Duty Cycle: Continuous (S1)
• Ambient Temperature: 50°C
• Degree of Protection: IP55
• Starting Current: 600% of rated current

Impel 15 HP 4 Pole IE2 1450 RPM B5 Flange Mounted 160 Frame 415V Three-Phase Squirrel motor

Specifications :

• Frame Size: 160M
• Output Power: 15.0 HP / 11.0 kW
• Poles: 4
• Rated Speed: 1450 RPM
• Cooling Method: IC 411 – TEFC
• Mounting Type: B5
• Rotation: CW & CCW (Both directions)
• Rated Voltage: 415 V ±10%
• Frequency: 50 Hz ±5%
• Rated Current: 21.5 A
• Starting Current: 700%

Impel 2.2KW 3.0HP 4 Pole IE2 1430 RPM B3 Foot Mounted 100L Frame 415V Motor

Specifications :

• Frame Size: 100L
• Cooling Method: IC 411 – TEFC (Totally Enclosed Fan Cooled)
• Output Power: 3.0 HP / 2.2 kW
• Mounting Type: B3
• Poles: 4
• Rotation: Both Clockwise (CW) & Counter-Clockwise (CCW)
• Frequency: 50 Hz ±5%
• Insulation Class: F
• Rated Voltage: 415 V ±10%
• Duty Cycle: Continuous (S1)
• Rated Current: 4.7 A
• Ambient Temperature: 50 ºC
• Rated Speed: 1430 rpm
• Protection Degree: IP55

Impel 3 HP 4 Pole IE2 1430 RPM B5 Flange Mounted 100 Frame 415V Three-Phase Squirrel Cage Induction Motor

Specifications :

• Frame Size: 100L
• Output Power: 3.0 HP / 2.2 kW
• Poles: 4
• Rated Speed: 1430 RPM
• Cooling Method: IC 411 – TEFC
• Mounting: B5
• Rated Voltage: 415 V ±10%
• Frequency: 50 Hz ±5%
• Rated Current: 4.7 A
• Insulation Class: F
• Duty Cycle: Continuous (S1)
• Ambient Temperature: 50°C
• Protection Degree: IP55
• Rotation: Clockwise & Counterclockwise (CW & CCW)
• Slip: 4.66%
• Service Factor: 1.00

Impel 7.5 HP 4 Pole IE2 1440 RPM B5 Flange Mounted 132 Frame 415V Three-Phase Squirrel motor

Specifications :

• Frame Size: 132S
• Output Power: 7.5 HP / 5.5 kW
• Poles: 4
• Rated Speed: 1440 RPM
• Cooling Method: IC 411 – TEFC
• Mounting Type:  B5
• Rotation: CW & CCW (Both directions)
• Rated Voltage: 415 V ±10%
• Frequency: 50 Hz ±5%
• Rated Current: 11.00 A
• Starting Current: 700%
