Full  Specification :

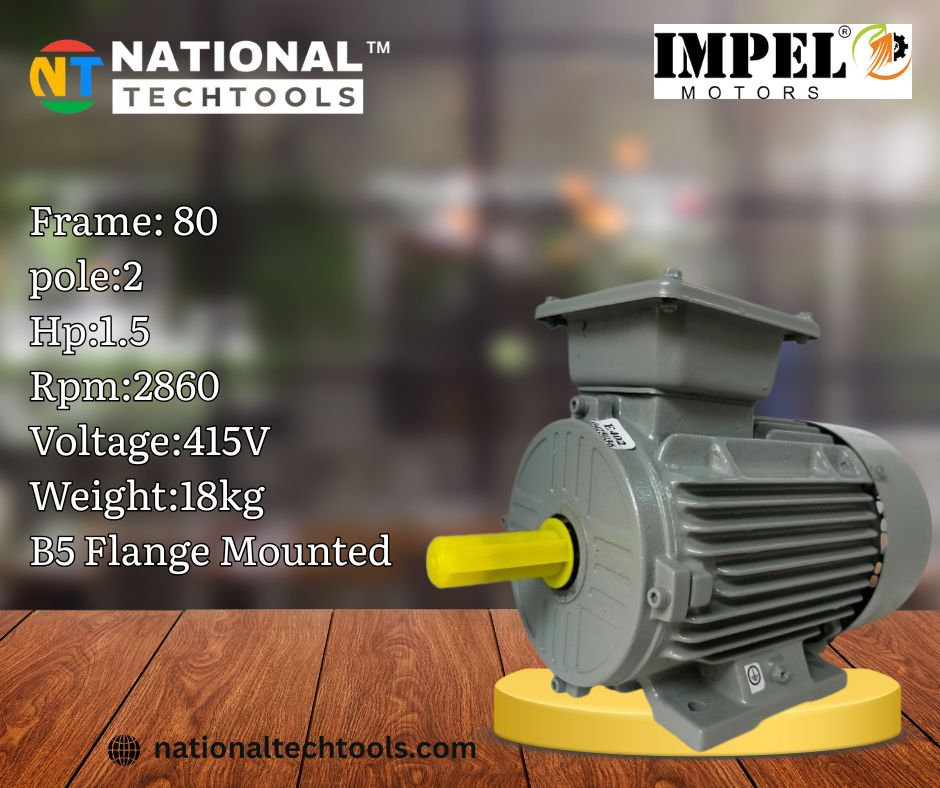

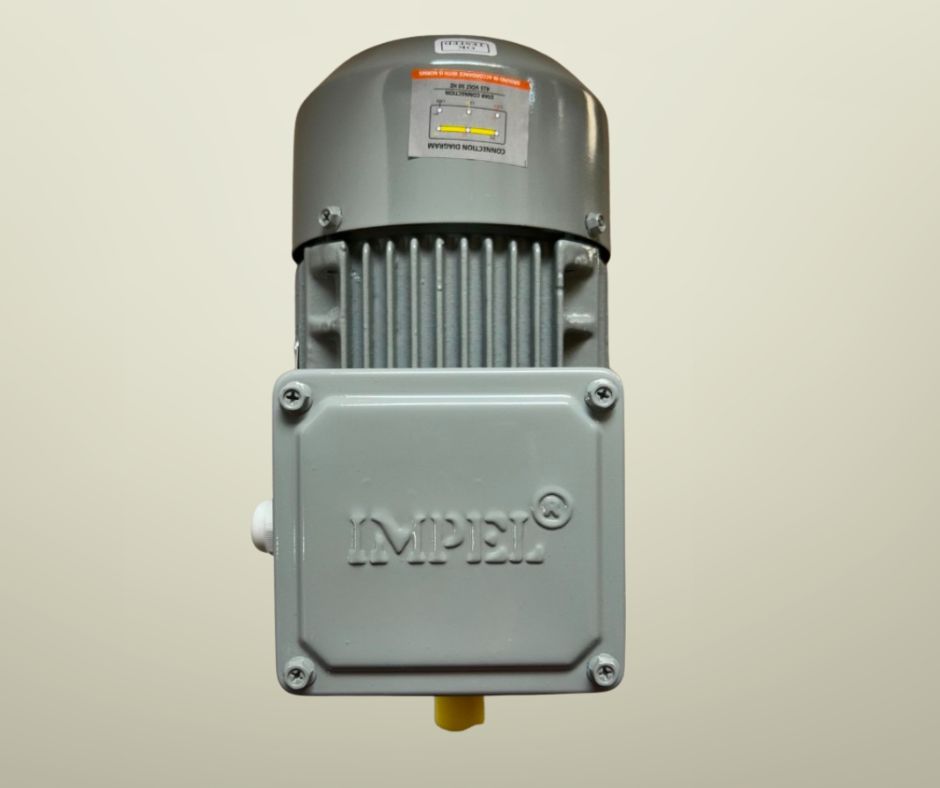

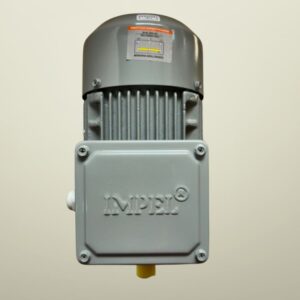

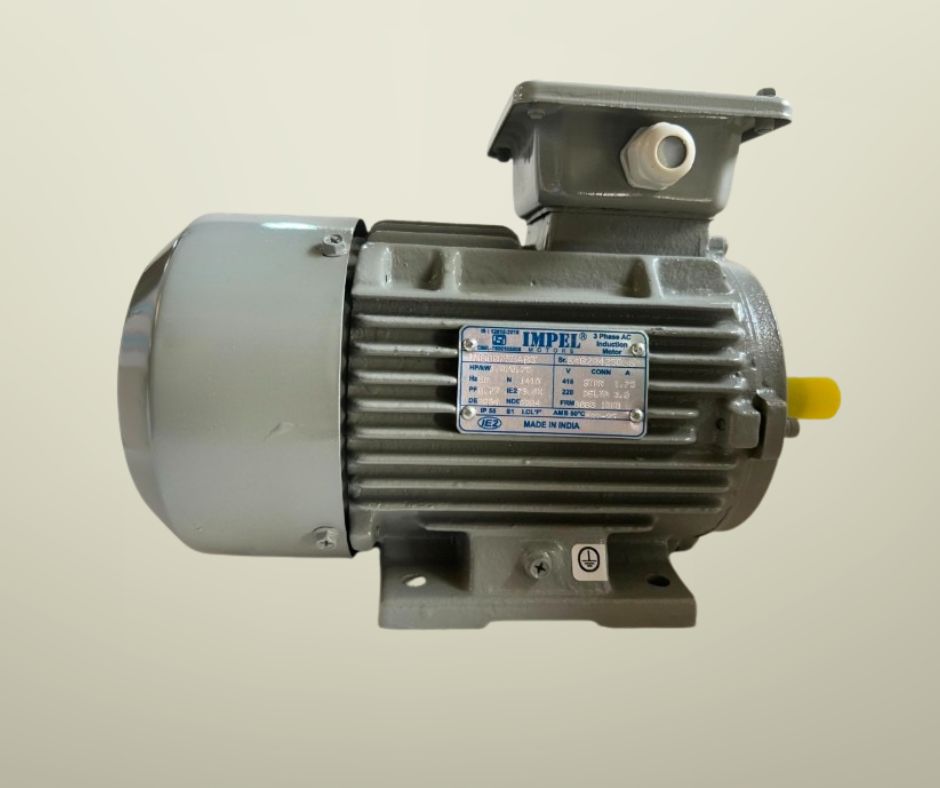

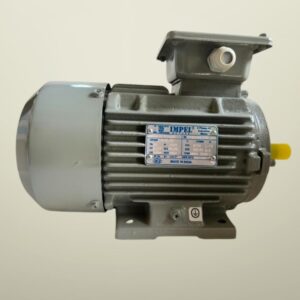

This 1.5 HP (1.1 kW) electric motor in frame size 80 is a high-performance, compact, and robust machine designed to meet the demands of a wide variety of industrial applications requiring high-speed operation. With a 2-pole configuration, it delivers a rated speed of 2860 rpm, making it suitable for equipment such as pumps, compressors, blowers, fans, and other machinery requiring rapid mechanical output.

The motor features a Totally Enclosed Fan Cooled (TEFC) construction with a cooling method classified as IC 411, ensuring efficient heat dissipation and enhanced protection from environmental contaminants like dust, dirt, and moisture. Its enclosure is rated IP55, offering a high level of ingress protection, making it reliable for indoor and semi-outdoor industrial use. Additionally, it supports multiple mounting configurations including B5 (flange-mounted)adding versatility for integration into different systems.

Designed for a 415 V ±10%, 50 Hz ±5% supply, the motor draws 2.3 A of rated current. It operates under a continuous duty cycle (S1) and can withstand ambient temperatures of up to 50°C, ensuring stable performance under continuous load. The Class F insulation enhances its thermal endurance, safeguarding the motor windings against overheating and extending its service life.

Performance highlights include:

• Rated Torque: 3.63 Nm
• Slip: 4.66%
• Starting Current: 650% of rated current
• Breakaway Torque: 250% of rated torque
• Breakdown Torque: 258% of rated torque
• Service Factor: 1.00

In terms of energy efficiency and power quality, the motor performs reliably across various load levels:

• Efficiency: 78.00% at 50% load, 79.00% at 75% load, and 79.60% at 100% load
• Power Factor: 0.62 at 50% load, 0.76 at 75% load, and 0.82 at full load

The motor is fitted with 6204 ZZ C3 bearings on both the drive and non-drive ends, which offer high precision, low noise, and minimal maintenance requirements. To enhance mechanical protection and sealing performance, V’Ring / Oil-seal sealing is used on both ends, preventing ingress of dust and other contaminants into the bearing housing.

Weighing approximately 18 kg, this motor strikes a balance between power density and mechanical strength. Its bi-directional rotation capability (CW & CCW) makes it ideal for forward and reverse operations, adding flexibility for process control and automation.

Overall, this 1.5 HP motor is engineered for durability, efficiency, and reliable performance, making it an excellent choice for high-speed, continuous-duty industrial applications.
