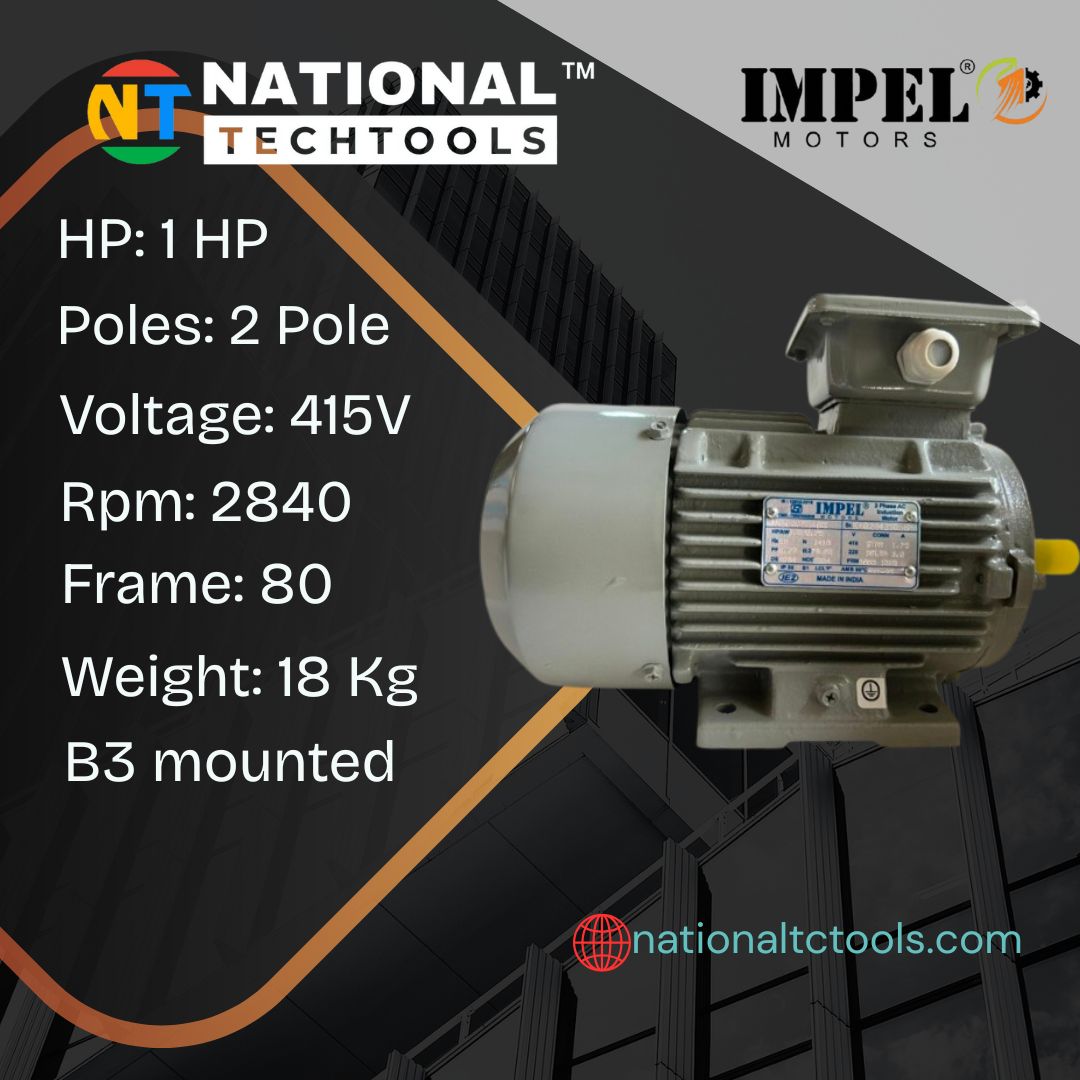

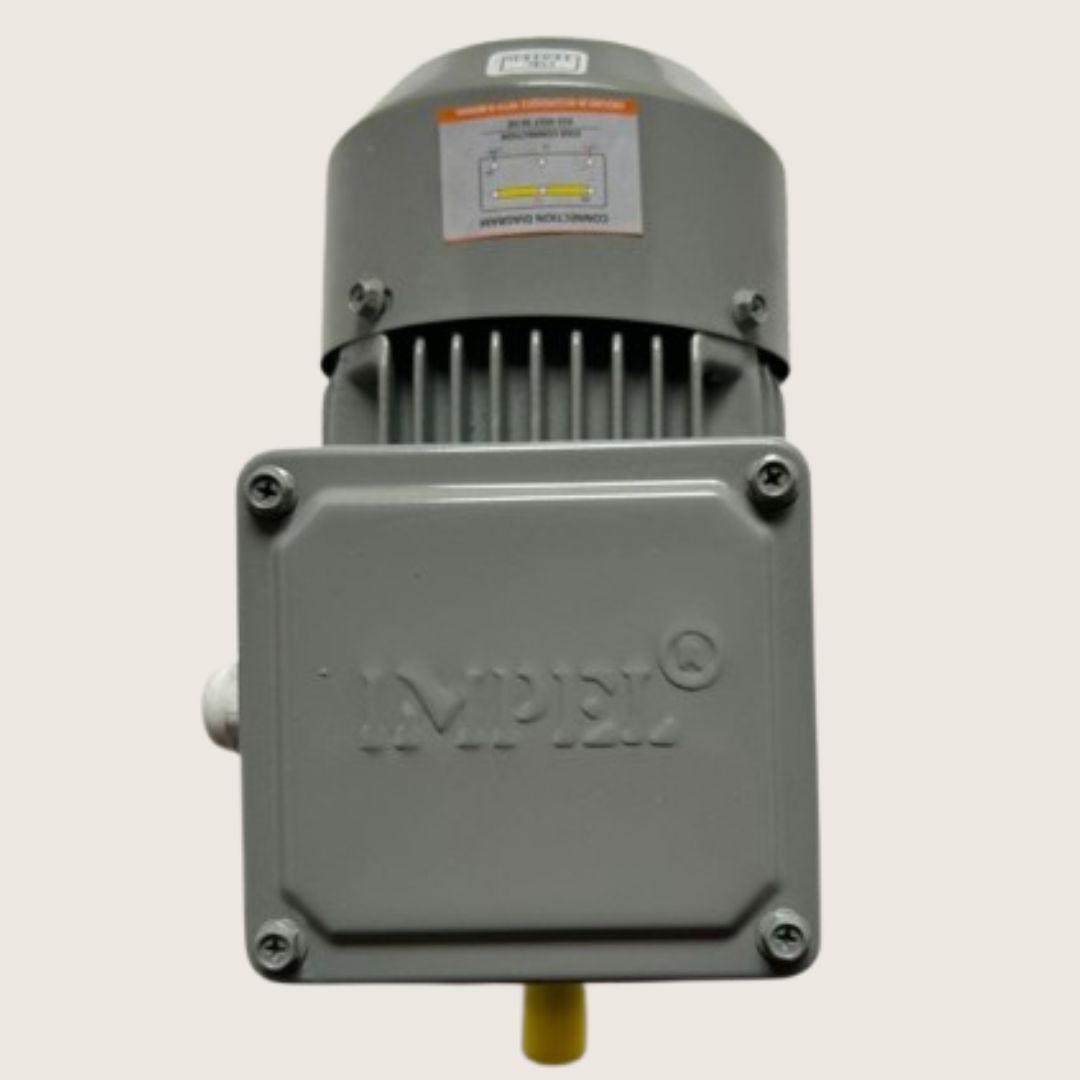

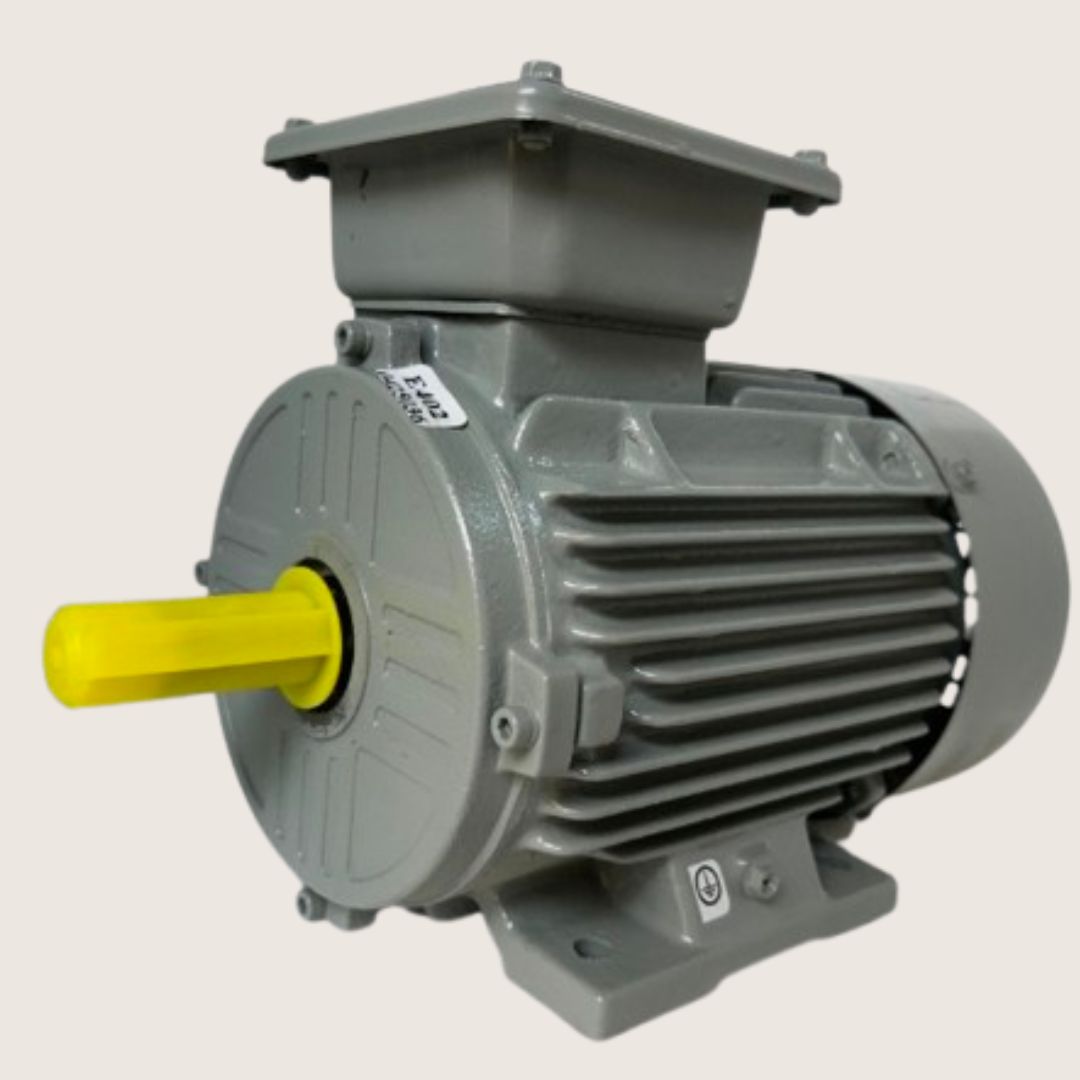

Impel 1.0 HP 2Pole IE2 2840RPM B3 Foot Mounting 80Frame 415V Three Phase squirrel Cage Induction Motor

Impel 1.0 HP 2Pole IE2 2840RPM B3 Foot Mounting 80Frame 415V Three Phase squirrel Cage Induction Motor

Full Specifications :

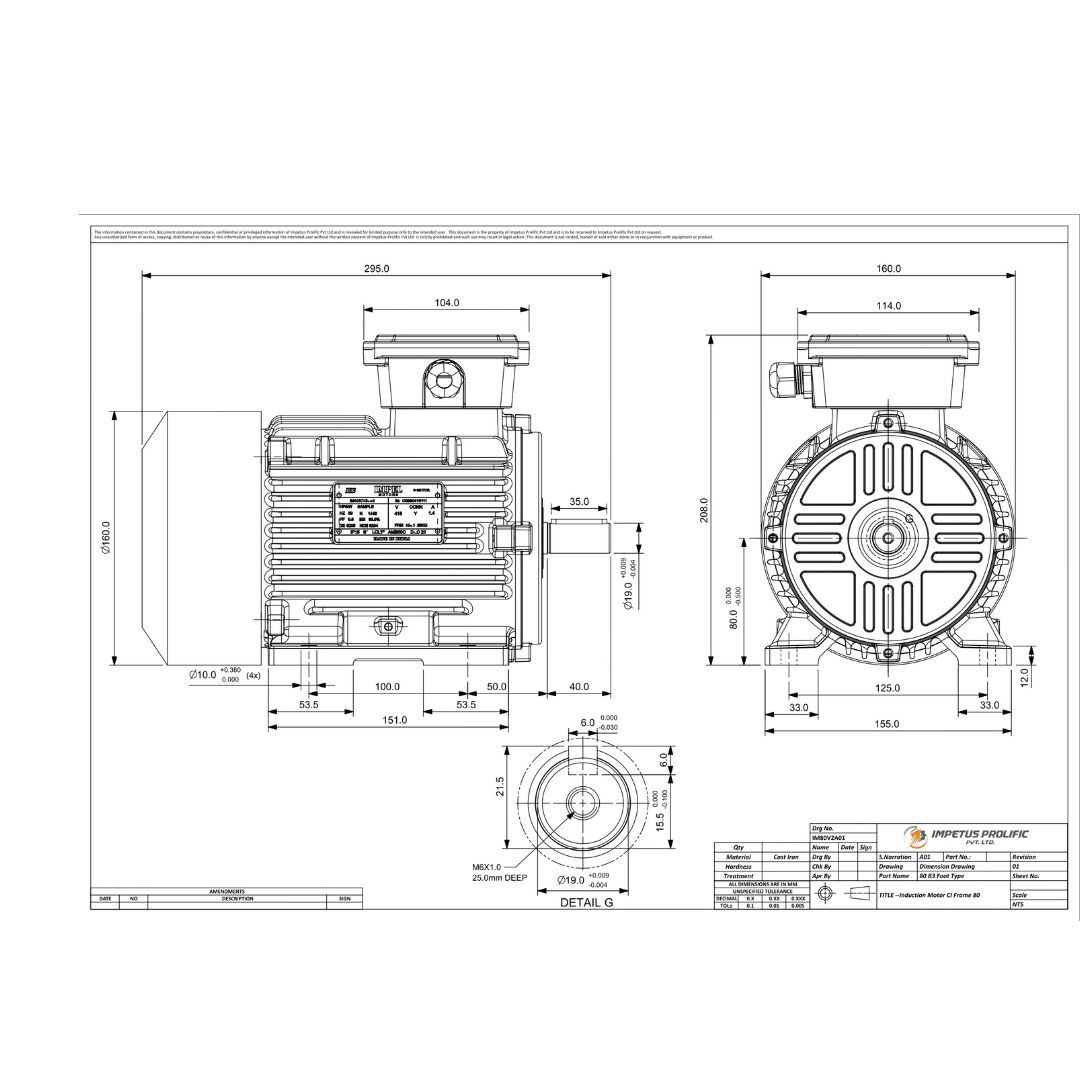

1. Frame Size:
   • The motor comes with a standard Frame 80, suitable for compact installations with moderate power requirements.
2. Cooling Method:
   • Uses IC 411 cooling system, which is Totally Enclosed Fan Cooled (TEFC).
   • Ensures reliable operation by preventing dust, dirt, and moisture ingress while allowing efficient heat dissipation.
3. Power Output:
   • Delivers 0 HP (0.75 kW) of mechanical power, suitable for small machinery and general industrial applications.
4. Mounting Type:
   • B3 (Foot Mounted) configuration for stable and secure installation on a flat surface.
5. Number of Poles:
   • 2-pole design, enabling high-speed operation with a synchronous speed of 3000 rpm and actual rated speed of 2840 rpm.
6. Rotation Direction:
   • Capable of bi-directional rotation (Clockwise & Counterclockwise), enhancing flexibility for different application setups.
7. Frequency Tolerance:
   • Operates efficiently at 50 Hz supply frequency with a tolerance of ±5%, allowing for minor supply fluctuations.
8. Rated Voltage:
   • Designed for 415 V AC input, with a tolerance range of ±10%, ensuring compatibility with standard three-phase power supplies.
9. Rated Current:
   • Draws 9 A at full load, reflecting energy-efficient performance.
10. Speed and Slip:

• Rated speed of 2840 rpm with a slip of 33%, suitable for high-speed operations with minimal losses.

11. Duty Cycle:

• S1 – Continuous Duty, meaning the motor can run indefinitely at rated load without overheating.

12. Insulation Class:

• Equipped with Class F insulation, providing high thermal resistance and protection against internal temperature rise.

13. Ambient Operating Temperature:

• Suitable for harsh environments with ambient temperatures up to 50°C, ideal for industrial use.

14. Ingress Protection (IP Rating):

• IP55 protection ensures resistance to dust ingress and low-pressure water jets from any direction.

15. Service Factor:

• A service factor of 1.00 indicates operation at rated load without overload margin.

16. Starting Characteristics:

• Starting current is 650% of rated current, a typical value for DOL (Direct-On-Line) start motors.
• Breakaway torque of 250% and breakdown torque of 260%, enabling the motor to handle load variations and start under load conditions.

17. Efficiency (at varying loads):

• 50% Load: 00%
• 75% Load: 00%
• 100% Load: 40%
• These values indicate modest efficiency levels typical of small-sized motors.

18. Power Factor (at varying loads):

• 50% Load: 53
• 75% Load: 67
• 100% Load: 70
• Reflects better power factor performance at higher loads.

19. Bearings:

• Uses 6204 ZZ C3 bearings on both drive and non-drive ends.
• These are double-shielded, high-clearance bearings for durability and smooth rotation.

20. Sealing Arrangement:

• Equipped with V’Ring and Oil-seal on both ends to prevent lubricant leakage and entry of contaminants.

21. Approximate Weight:

• The motor weighs around 18 kg, indicating a compact and portable design.

This motor is well-suited for light industrial machinery, fans, pumps, compressors, and other general-purpose applications requiring reliable performance in demanding conditions.
