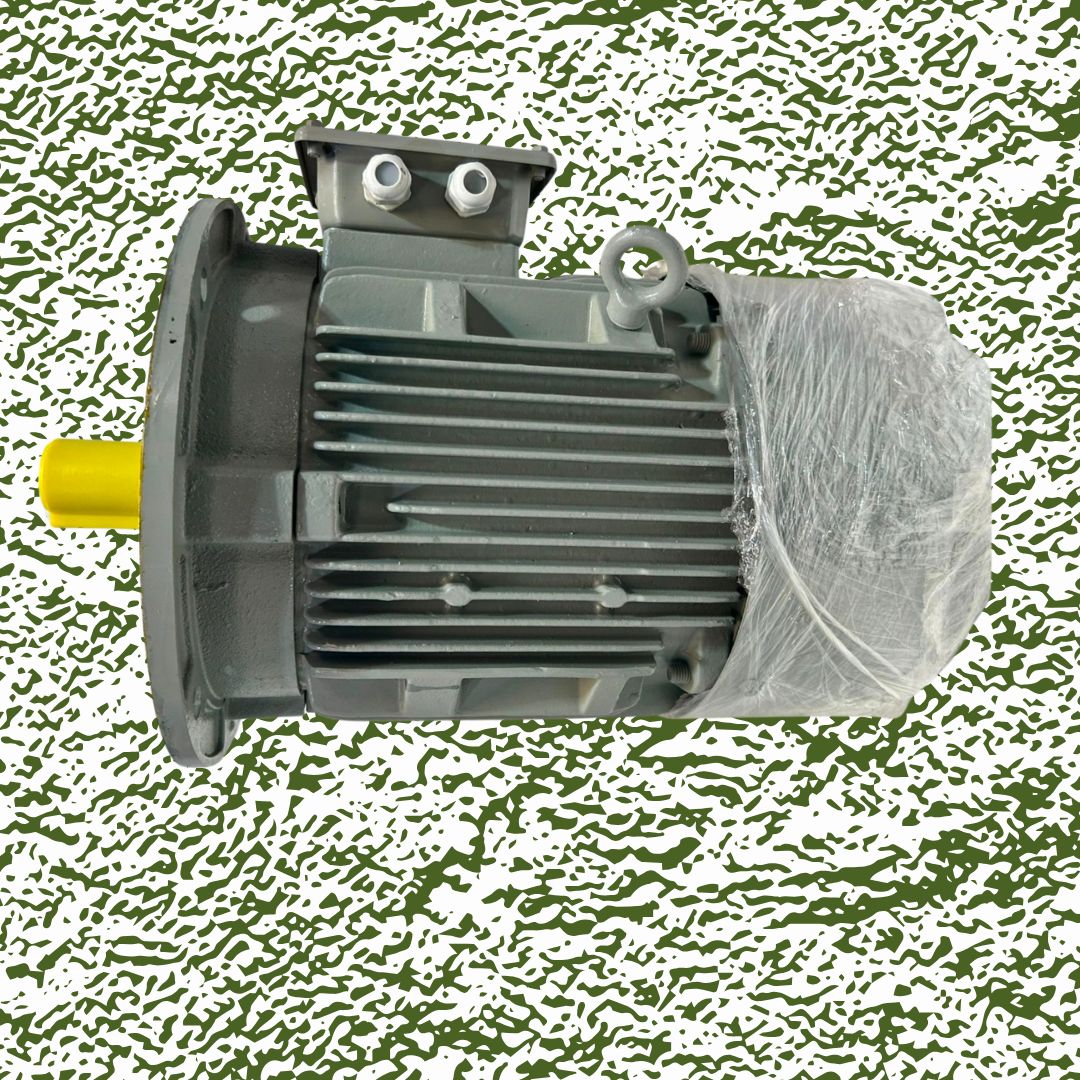

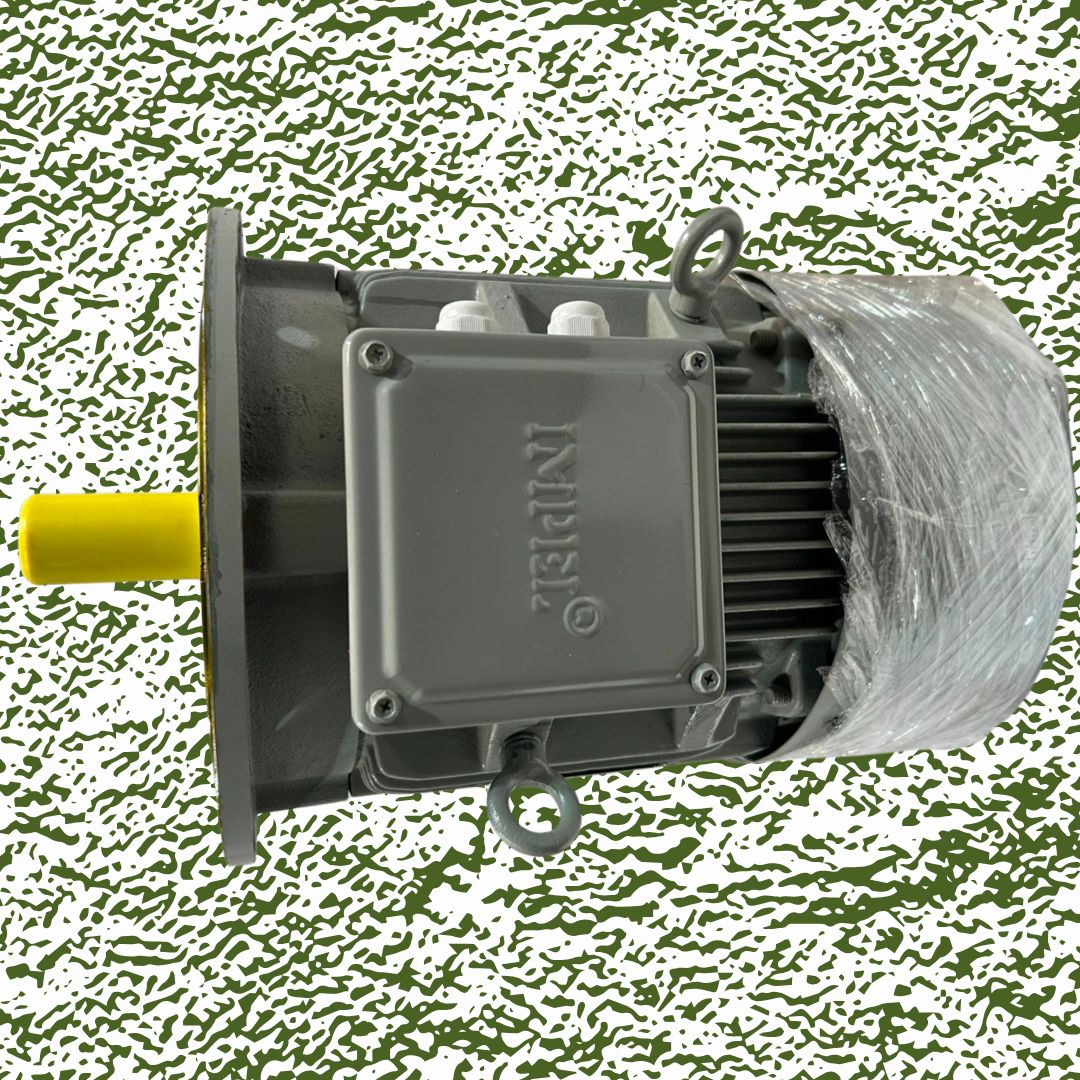

Impel 7.5 HP 2 Pole IE2 2880 RPM B5 Flange Mounted 132 Frame 415V Three-Phase Squirrel motor

Impel 7.5 HP 2 Pole IE2 2880 RPM B5 Flange Mounted 132 Frame 415V Three-Phase Squirrel motor

Full Specifications :

This high-performance three-phase squirrel cage induction motor is designed for demanding industrial applications requiring high speed and efficiency. With a frame size of 132S and a rated output of 7.5 HP (5.5 kW), it is engineered to deliver powerful and consistent mechanical performance. The motor operates at a rated speed of 2880 rpm with a 2-pole configuration, making it suitable for high-speed operations such as compressors, pumps, fans, and machine tools.

The motor utilizes a Totally Enclosed Fan Cooled (TEFC) cooling system (IC 411), which offers enhanced protection from dust, dirt, and moisture, allowing reliable operation in harsh environments. It supports multiple mounting options B5 and dual direction rotation (CW & CCW), offering flexibility in installation and integration into various systems.

Engineered with an insulation class F and capable of operating continuously under S1 duty cycle, the motor can endure prolonged usage at ambient temperatures up to 50ºC. The rated voltage is 415V with a tolerance of ±10% and a frequency of 50 Hz (±5%), ensuring compatibility with standard industrial power supplies.

The motor draws a rated current of 10.5 A, with a starting current up to 700% of the rated value, providing strong starting torque for load-heavy applications. It delivers a rated torque of 18.05 Nm, with a breakaway torque of 200% and a breakdown torque of 286%, offering excellent overload handling capability and start-up performance.

It boasts high operational efficiency—85.80% at 50% load, 86.50% at 75% load, and 87.00% at full load—reducing energy consumption and operational costs. Its power factor improves with load, reaching 0.86 at 100% load, promoting efficient power usage.

The motor includes durable deep-groove ball bearings (6308 ZZ C3 at the drive end and 6208 ZZ C3 at the non-drive end), providing long service life and low maintenance. V’Ring and oil seals ensure effective protection against contaminants, extending bearing life. The total approximate weight is 68 kg, reflecting the robust build and high material standards used in manufacturing.

In summary, this 7.5 HP motor is a rugged, efficient, and reliable solution for high-speed industrial applications, offering high torque, superior efficiency, and flexible mounting—all engineered to perform in challenging operating environments.
