Impel 0.5HP 6 Pole IE2 920RPM B3 Foot Mounted 80Frame 415V Motor

Impel 0.5HP 6 Pole IE2 920RPM B3 Foot Mounted 80Frame 415V Motor

Full Specification :

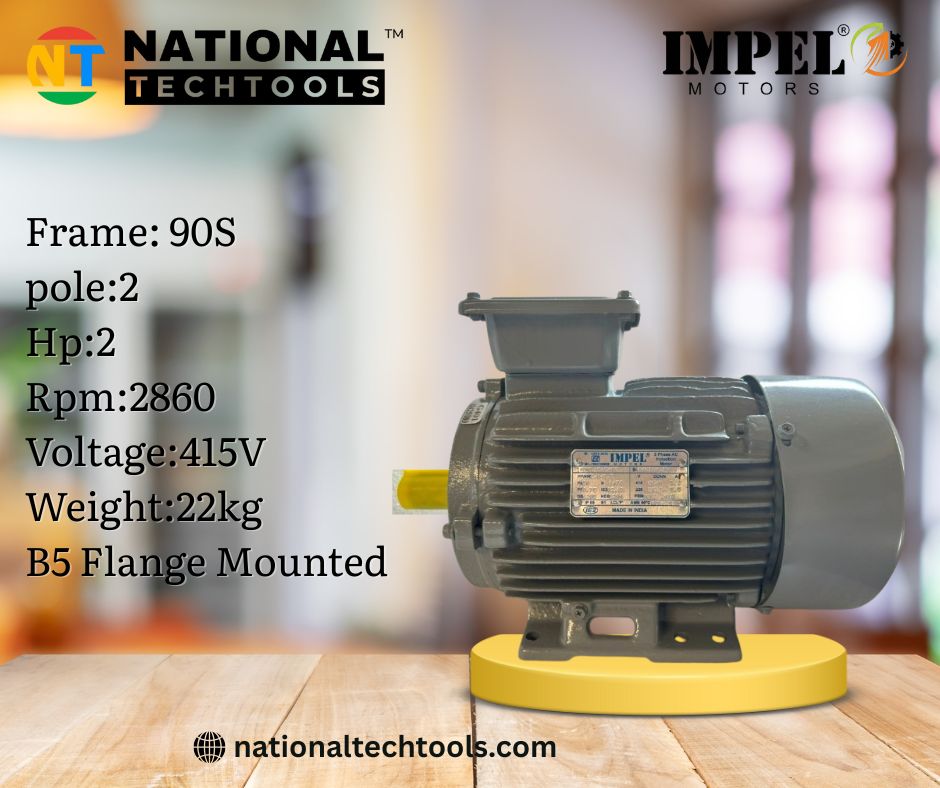

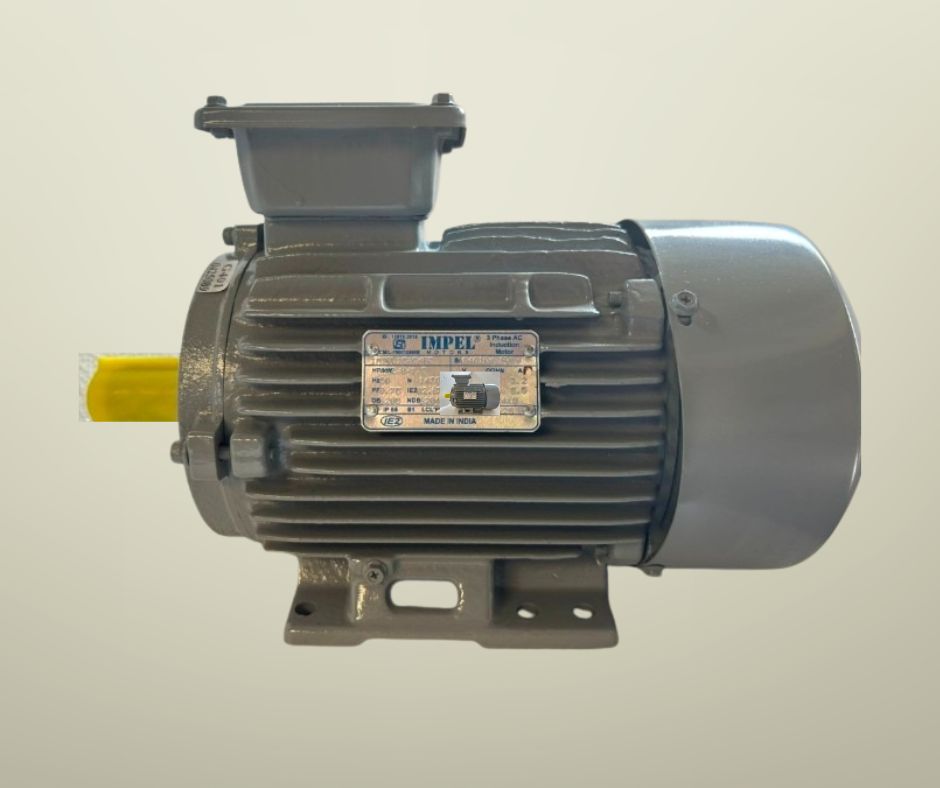

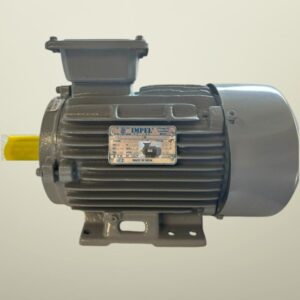

This 2.0 HP (1.5 kW) electric motor in frame size 90S is a high-performance, energy-efficient solution designed for a wide range of industrial and commercial applications. Engineered with a 2-pole configuration, it operates at a rated speed of 2860 rpm on a 415 V, 50 Hz power supply, with a ±10% voltage and ±5% frequency tolerance, ensuring compatibility and reliability under varying electrical conditions.

The motor features a robust IC 411 – Totally Enclosed Fan Cooled (TEFC) cooling method, which offers effective heat dissipation while preventing the ingress of dust and moisture. The IP55 degree of protection further safeguards internal components from water jets and dust, making it suitable for operation in harsh and demanding environments. It supports both clockwise (CW) and counterclockwise (CCW) rotation, allowing flexibility in installation and operation.

Constructed with Class F insulation, the motor is capable of withstanding high thermal stress, making it suitable for ambient temperatures up to 50°C and ensuring a long operational lifespan. The motor supports continuous duty (S1) operation, delivering consistent performance without overheating during extended running periods.

The unit offers a rated torque of 4.90 Nm, with a breakaway torque of 230% and a breakdown torque of 240%, which ensures excellent starting and overload handling capabilities. The starting current is 650% of the rated current, highlighting strong starting performance.

Performance metrics are also impressive, with an efficiency of up to 81.30% at full load and a power factor of 0.85, contributing to reduced energy consumption and lower operational costs. At 50%, 75%, and 100% loads, the motor maintains consistent efficiency and power factor, reflecting stable performance under varying conditions.

This motor is designed with universal mounting flexibility, supporting  B5 (flange) configurations to meet diverse installation requirements. High-quality deep groove ball bearings (6205 ZZ C3 at the drive end and 6204 ZZ C3 at the non-drive end) ensure smooth rotation, minimal vibration, and reduced maintenance. V’ Ring/Oil-seal sealing systems are used at both ends to prevent lubricant leakage and contamination, extending the motor’s service life.

Weighing approximately 22 kg, this motor is built with durable construction to withstand industrial use while being compact and efficient. Its balanced combination of performance, protection, and efficiency makes it ideal for pumps, fans, compressors, conveyors, and other critical machinery.
