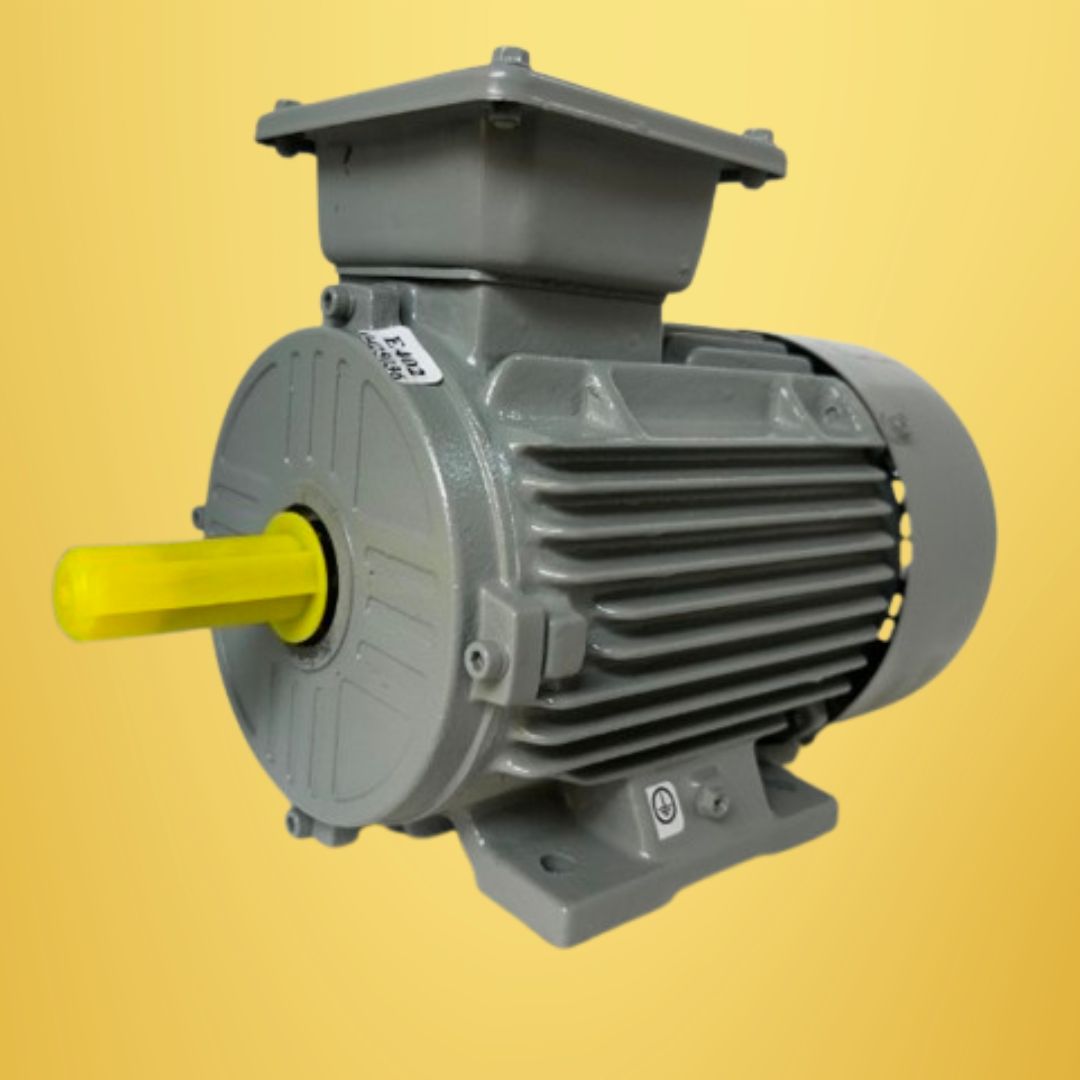

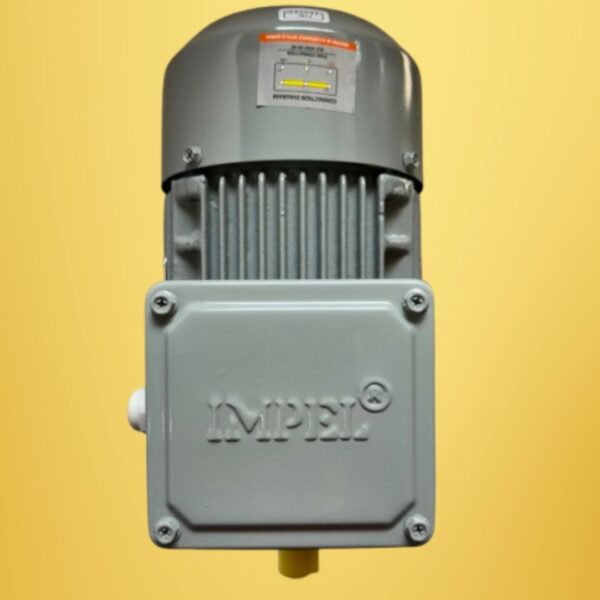

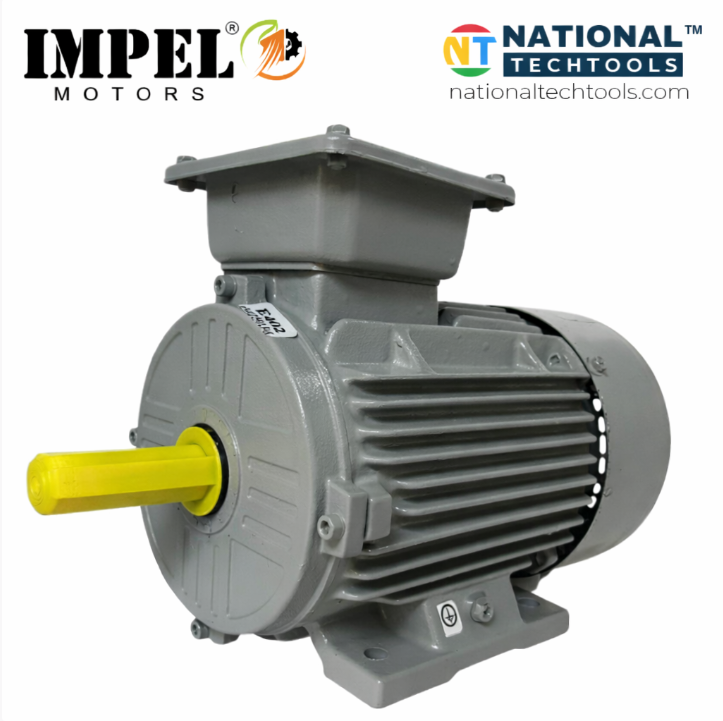

Impel 1.0HP 4Pole IE2 1410RPM B3 Foot Mounted 80 Frame 415V Three-Phase Motor

Impel 1.0HP 4Pole IE2 1410RPM B3 Foot Mounted 80 Frame 415V Three-Phase Motor

Full  Specifications :

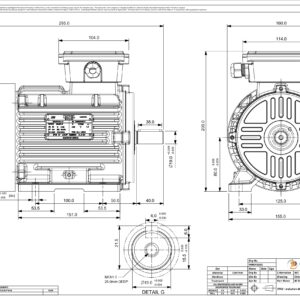

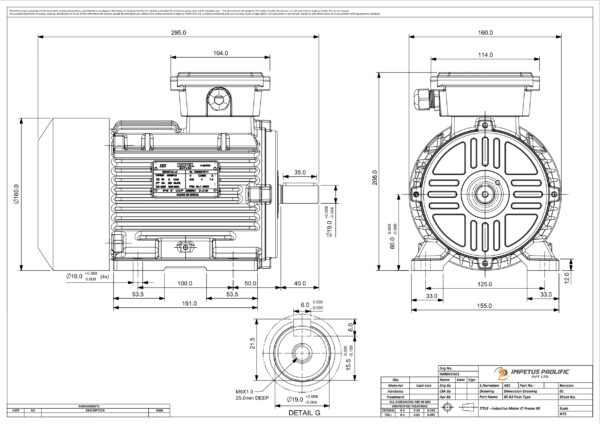

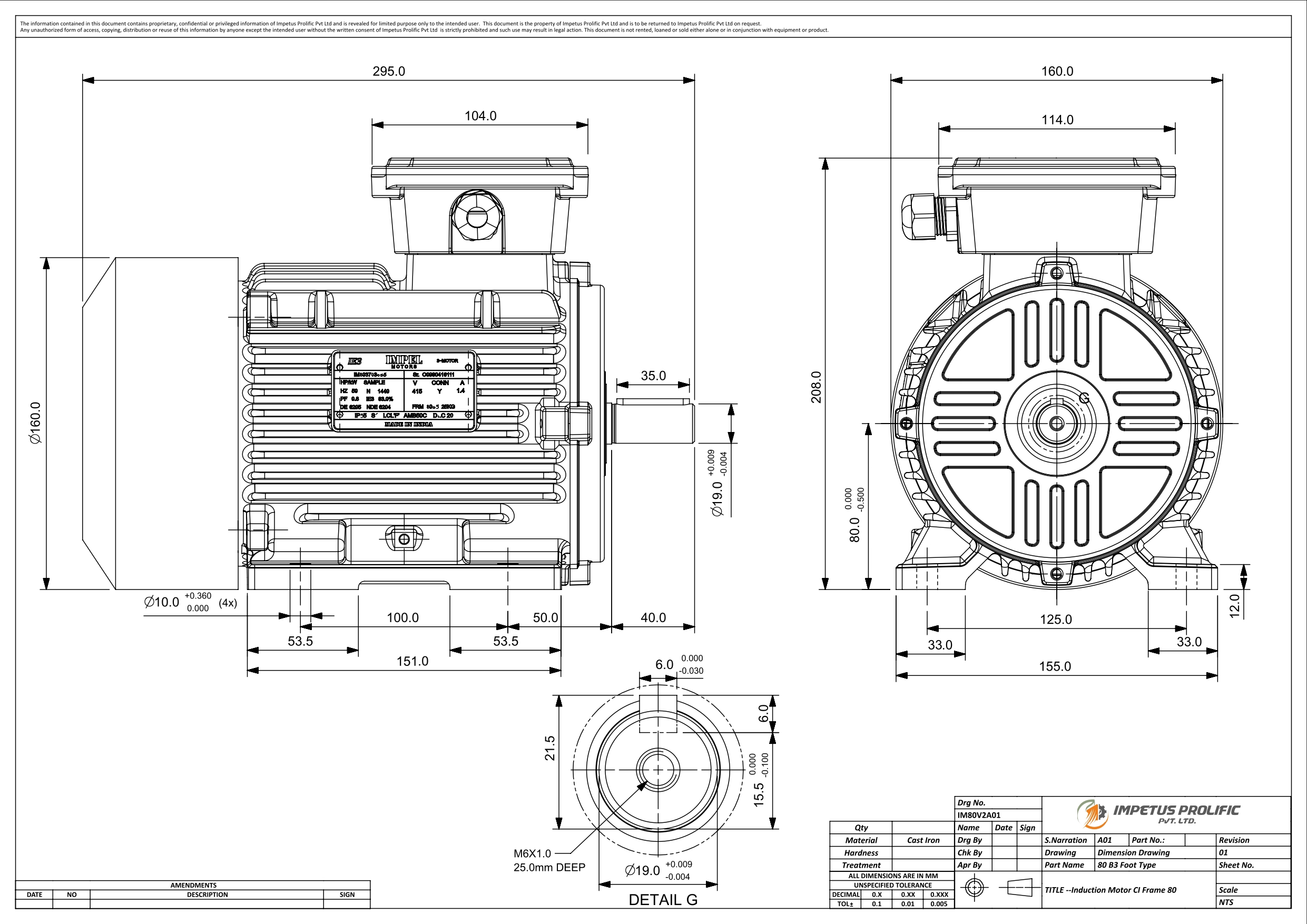

• Frame Size:
• The motor is built with Frame 80, which defines its mechanical dimensions and mounting compatibility.
• Cooling Method:
• Equipped with IC 411 – TEFC (Totally Enclosed Fan Cooled) The fan attached to the motor shaft provides external cooling, and the enclosure protects internal components from dust, dirt, and moisture.
• Rated Output:
• Power Output is 0 Horsepower (HP) or 0.75 kilowatts (kW), suitable for various industrial and commercial applications.
• Mounting Arrangements:
• The motor supports multiple mounting configurations including B3 (foot-mounted) providing flexibility in installation.
• Number of Poles:
• This is a 4-pole motor, which typically results in a synchronous speed of 1500 RPM at 50 Hz, with an actual rated speed slightly lower due to slip.
• Direction of Rotation:
• The motor is capable of running in both clockwise (CW) and counterclockwise (CCW) directions, making it versatile for different application requirements.
• Rated Frequency:
• Designed for 50 Hz operation with a tolerance of ±5%, compatible with standard power supply frequencies in many countries.
• Rated Voltage:
• Operates at 415 Volts with a voltage tolerance of ±10%, suitable for standard three-phase supply systems.
• Rated Current:
• Draws a rated current of 1.75 Amperes under full load at rated voltage and frequency.
• Rated Speed:
• 1410 revolutions per minute (RPM) under full-load conditions, accounting for a 6% slip typical of squirrel cage induction motors.
• Insulation Class:
• Built with Class F insulation, allowing a temperature rise of 105°C above ambient. Suitable for environments up to 155°C total winding temperature.
• Duty Cycle:
• Rated for continuous duty (S1), meaning it can operate at full load continuously without overheating.
• Ambient Temperature:
• Designed to operate in environments with ambient temperatures up to 50°C, making it suitable for hot industrial conditions.
• Degree of Protection:
• The motor has an IP55 rating, meaning it is dust-protected and protected against water jets from any direction.
• Starting Current:
• 600% of rated current during startup, typical for direct-on-line (DOL) starting of induction motors.
• Torque Characteristics:
• Rated Torque: 5.00 Nm
• Breakaway (Starting) Torque: 240% of rated torque
• Breakdown (Maximum) Torque: 248% of rated torque
  These high torque values ensure reliable starting and overload capability.
• Service Factor:
• The motor has a service factor of 1.00, indicating it is designed to operate at its rated load continuously without overheating.
• Performance Data:
• Efficiency:
  • At 50% load: 78.00%
  • At 75% load: 79.00%
  • At 100% load: 79.60%
• Power Factor:
  • At 50% load: 0.60
  • At 75% load: 0.75
  • At 100% load: 0.77
    These values indicate good efficiency and improving power factor as the load increases.
  • Bearings:
• Drive End Bearing: 6204 ZZ C3
• Non-Drive End Bearing: 6204 ZZ C3
  The bearings are deep groove ball bearings with C3 clearance, suitable for high-speed and high-temperature operation.
• Sealing Method:
• V’ Ring or Oil-seal sealing on both drive and non-drive ends, offering protection against ingress of dust, moisture, and oil leakage.
• Approximate Weight:
• The total weight of the motor is approximately 18 kilograms, making it relatively easy to handle and install.
