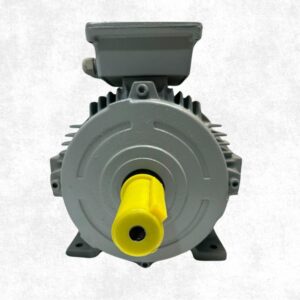

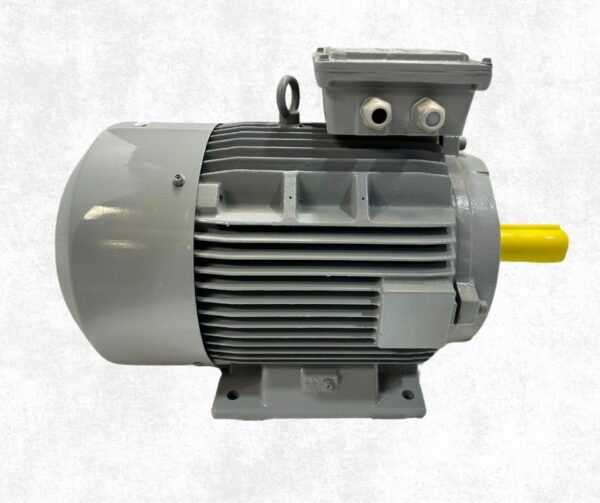

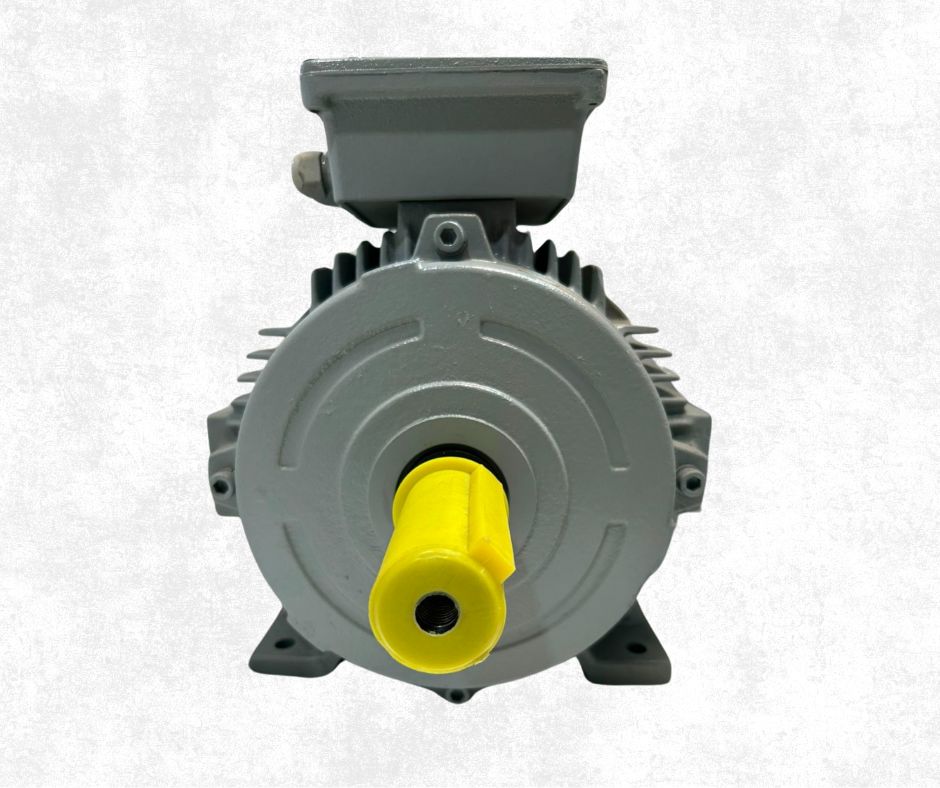

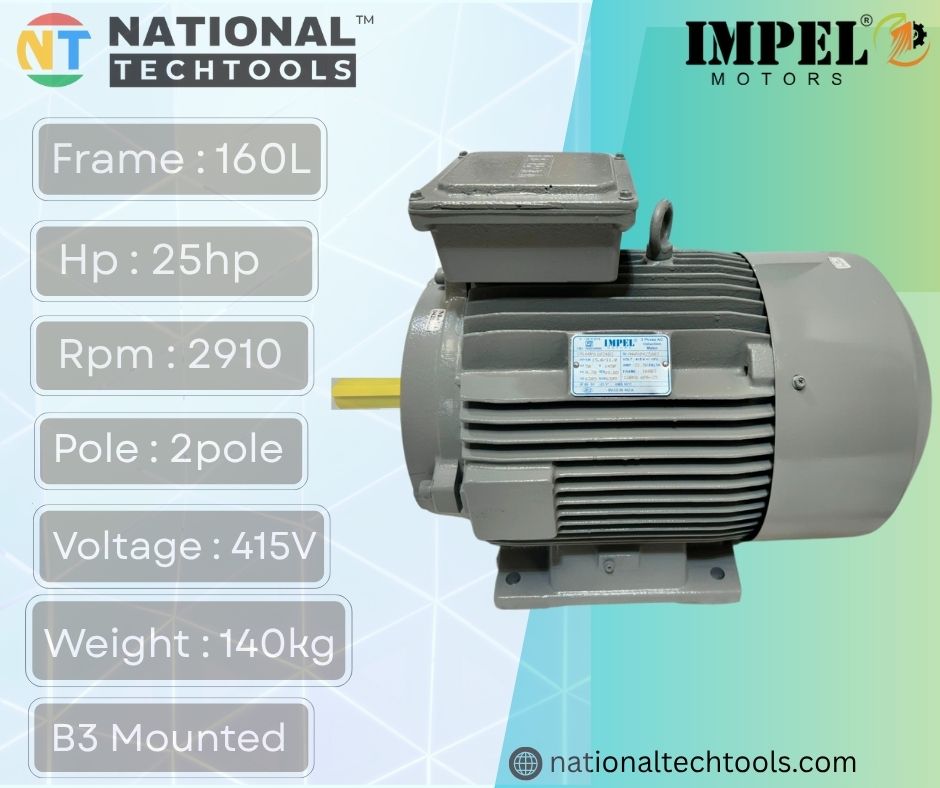

Impel 25HP 2 Pole IE2 2910RPM B3 Foot Mounted 160LFrame 415V Motor

Impel 25HP 2 Pole IE2 2910RPM B3 Foot Mounted 160LFrame 415V Motor

Full Specifications :

• Frame Size:
• 160L, a standard motor frame size offering structural robustness and compatibility for a wide range of industrial applications.
• Cooling Method:
• IC 411 (TEFC – Totally Enclosed Fan Cooled), a closed motor design with an external fan, providing efficient cooling and protection from dust, moisture, and external elements.
• Output Power:
• 0 HP / 18.5 kW, capable of delivering reliable performance for medium to heavy-duty operations.
• Mounting Type:
• B3: Foot-mounted
• Offers flexibility in installation based on machine or equipment design.
• Number of Poles:
• 2 Poles, designed for high-speed operation with a typical synchronous speed of 3000 rpm under 50 Hz supply.
• Direction of Rotation:
• Bi-directional – Capable of running in both Clockwise (CW) and Counter-Clockwise (CCW) directions depending on connection configuration.
• Frequency:
• 50 Hz ±5%, compatible with standard power systems.
• Insulation Class:
• Class F, supports operation at higher temperatures, providing thermal durability and increased motor lifespan.
• Rated Voltage:
• 415 V ±10%, ensures stable operation under standard industrial voltage fluctuations.
• Duty Cycle:
• S1 (Continuous Duty) – Designed for uninterrupted operation at full load without overheating.
• Rated Current:
• 1 A, the current drawn under rated load, voltage, and frequency conditions.
• Rated Speed:
• 2910 rpm, reflecting a small slip from the synchronous speed typical for 2-pole induction motors.
• Slip:
• 0%, the difference between synchronous speed and actual operating speed under load.
• Ambient Temperature:
• 50°C, suitable for operation in high-temperature industrial environments.
• Degree of Protection:
• IP55, provides protection against limited dust ingress and low-pressure water jets from any direction.
• Starting Current:
• 700% of the rated current, common in DOL (Direct-On-Line) starts for squirrel cage induction motors.
• Rated Torque:
• 84 Nm, torque produced at full load ensuring proper mechanical output and drive capacity.
• Breakaway Torque (Locked Rotor Torque):
• 220% of rated torque, indicating strong starting torque capacity for demanding load conditions.
• Breakdown Torque:
• 245% of rated torque, the maximum torque the motor can develop without stalling.
• Service Factor:
• 00, meaning the motor is rated for continuous operation at its full rated load without an overload margin.
• Efficiency (at different load levels):
• 50% Load: 90.00%
• 75% Load: 90.40%
• 100% Load: 90.90%
• Indicates excellent energy efficiency across a range of operating conditions.
• Power Factor (at different load levels):
• 50% Load: 0.75
• 75% Load: 0.87
• 100% Load: 0.88
• Reflects efficient use of electrical power, improving at higher loads.
• Bearing Details:
• Drive End: 6309 ZZ C3
• Non-Drive End: 6309 ZZ C3
• Deep groove ball bearings with C3 clearance, suitable for high-speed and high-temperature operation.
• Sealing System:
• V’ Ring / Oil-seal on both ends, prevents ingress of dust and moisture, enhancing bearing and motor life.
• Approximate Weight:

140 kg, indicating a robust construction suitable for stable and vibration-free mounting
