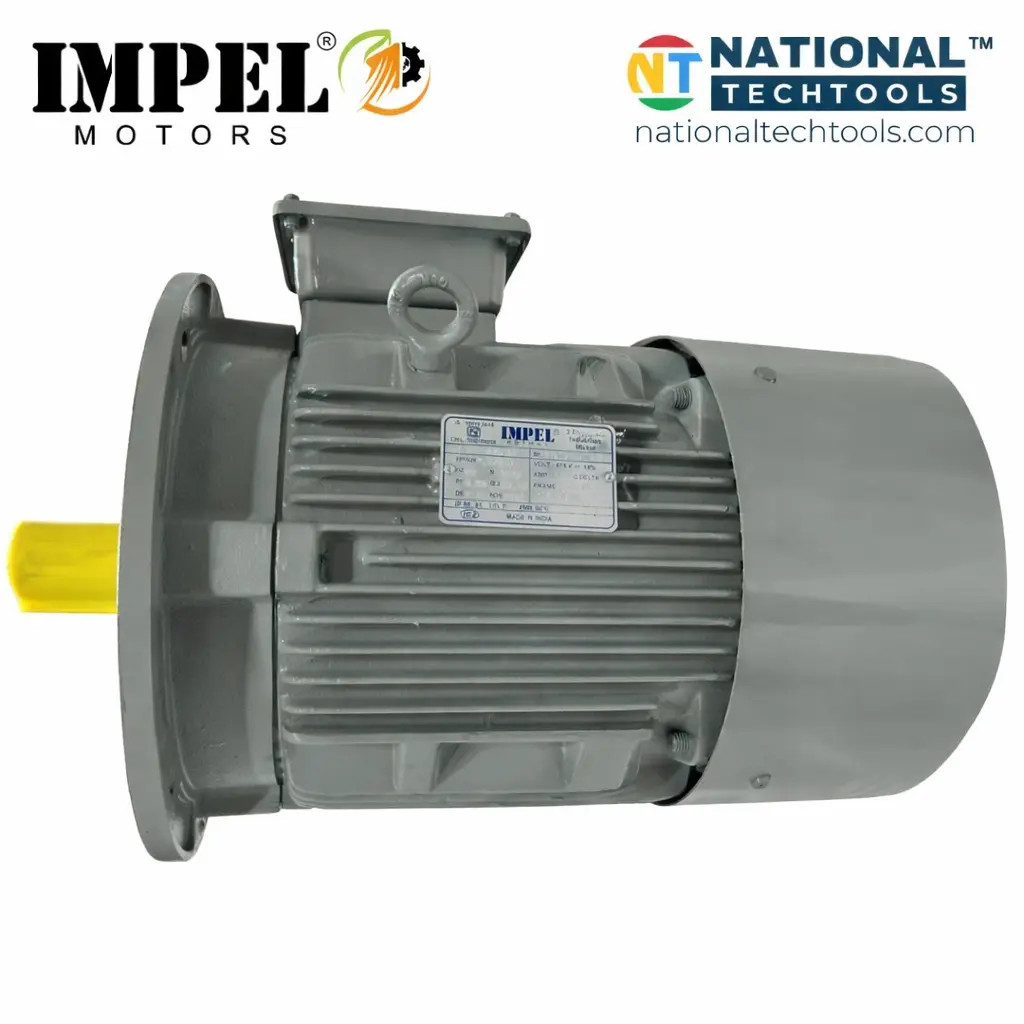

Impel 10 HP 2 Pole IE2 2880 RPM B5 Flange Mounted 132 Frame 415V Three-Phase Squirrel Cage Induction Motor

Description

Impel 10 HP 2 Pole IE2 2880 RPM B5 Flange Mounted 132 Frame 415V Three-Phase Squirrel Cage Induction Motor

Full Specification :

This three-phase squirrel cage induction motor is a robust and high-performance unit designed for demanding industrial applications. With a power output of 10.0 HP (7.5 kW) and operating in a 132S frame size, this motor is built for durability, efficiency, and consistent operation in harsh environments.

It features a Totally Enclosed Fan Cooled (TEFC) design with IC 411 cooling, ensuring optimal thermal management and protection against dust, moisture, and other external contaminants. The motor supports continuous duty (S1) operation, making it ideal for applications where the motor must run continuously at full load for extended periods.

With 2 poles, the motor achieves a rated speed of 2880 rpm, suitable for high-speed machinery. It is capable of bi-directional rotation (CW & CCW), adding flexibility in mechanical integration. The motor operates at a rated voltage of 415 V and frequency of 50 Hz (±5%), delivering a rated current of 13.5 A.

Efficiency and power factor are optimized across load conditions, reaching up to 88.10% efficiency at full load, and a power factor of 0.86, ensuring reduced energy consumption and lower operational costs. The motor offers a rated torque of 24.52 Nm, with strong torque characteristics including 200% breakaway torque and 270% breakdown torque, which enhance its ability to handle load surges and start heavy-duty equipment.

Additional features include:

• Slip: 4.0%
• Starting Current: 700% of rated current
• Service Factor: 1.00
• Ambient Temperature Tolerance: Up to 50 ºC
• Protection Degree: IP55 – providing dust-tight and water-jet protection

The mechanical components are equally durable, using deep groove ball bearings – 6308 ZZ C3 on the drive end and 6208 ZZ C3 on the non-drive end, both sealed with V’Ring/oil-seal arrangements for enhanced reliability and service life.

The motor is adaptable for various installations with multiple mounting configurations  B5 and has an approximate weight of 72 kg, indicating a sturdy and rugged build.

This motor is ideal for use in pumps, compressors, conveyors, blowers, and other machinery that requires high performance and reliable operation under continuous load conditions.
