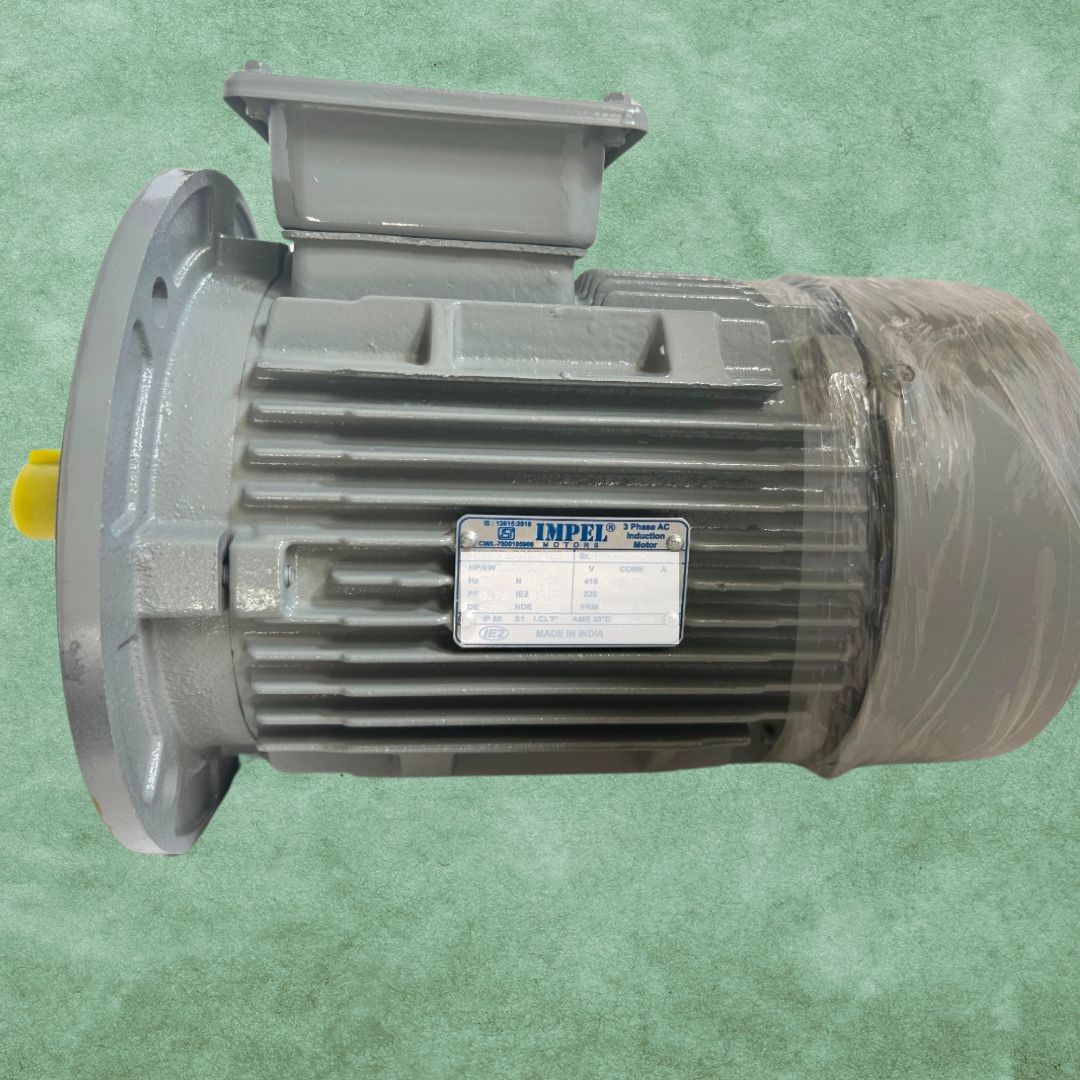

Impel 5 HP 2 Pole IE2 2850 RPM B5 Flange Mounted 100 Frame 415V Three-Phase Squirrel Cage Induction Motor

Impel 5 HP 2 Pole IE2 2850 RPM B5 Flange Mounted 100 Frame 415V Three-Phase Squirrel Cage Induction Motor

specification:

This high-performance three-phase induction motor is engineered for demanding industrial applications requiring reliable continuous operation and high rotational speed. Featuring a 100L frame size, it delivers an impressive output of 5.0 HP (3.7 kW), making it suitable for machinery that requires consistent and efficient power delivery.

The motor operates at a nominal speed of 2850 RPM, supported by a 2-pole configuration, which allows it to achieve high speeds suitable for applications such as pumps, compressors, and fans. It is designed to work on a 415 V, 50 Hz supply (±10% voltage and ±5% frequency tolerance), ensuring compatibility with standard industrial power systems. The insulation class F and ambient temperature rating of 50°C enable the motor to function effectively in elevated temperature environments without performance degradation.

Cooling is achieved using the IC 411 – Totally Enclosed Fan Cooled (TEFC) method, which, combined with an IP55 protection rating, shields the motor from dust, water spray, and harsh operating conditions. This enhances both motor longevity and reliability, even in tough outdoor or industrial environments.

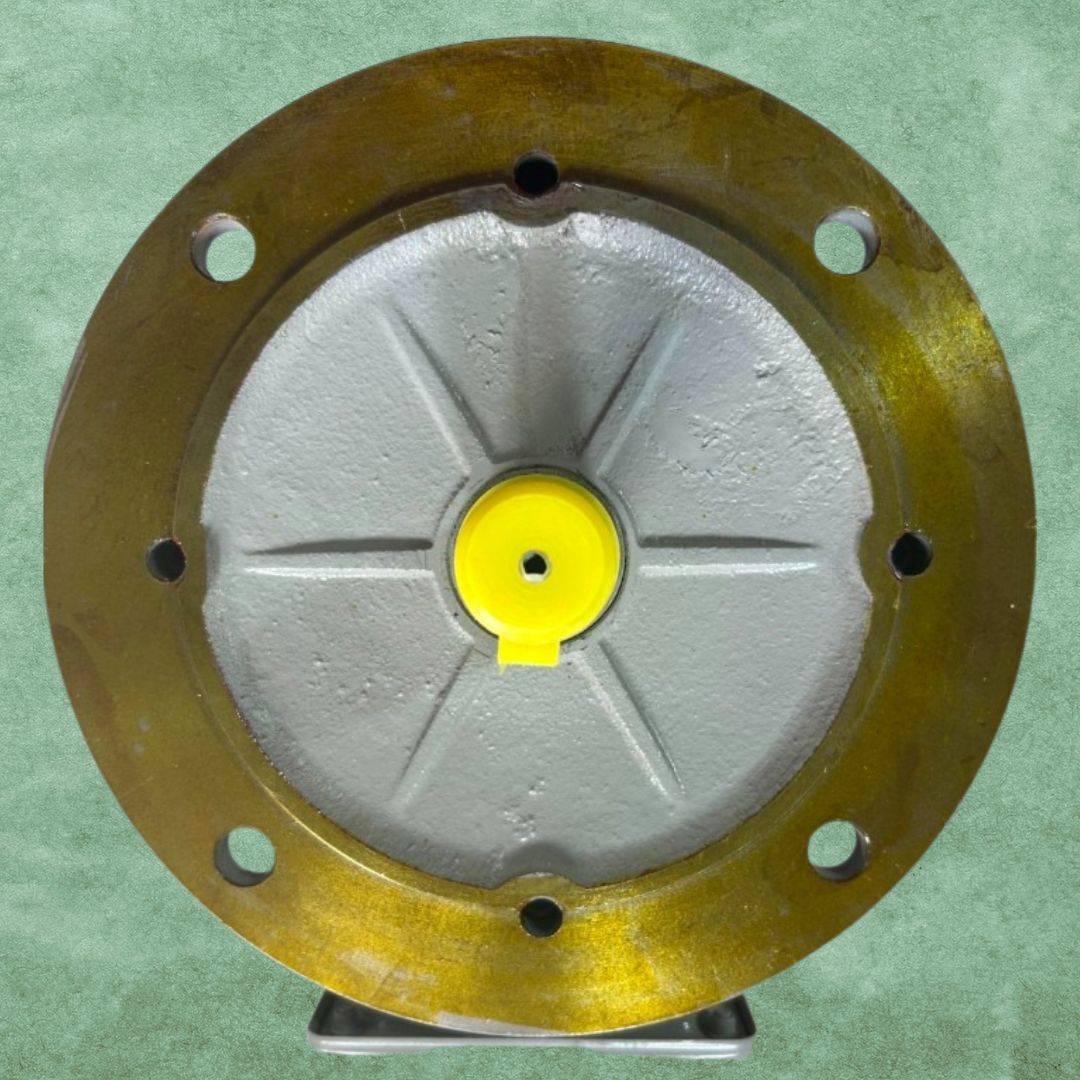

The motor’s multi-mounting capability B5 offers versatility in installation across various machines. It supports bi-directional rotation (CW & CCW), allowing flexible operation as per system requirements.

In terms of performance, the motor exhibits a rated torque of 12.16 Nm, with a starting current at 700% of the rated current (7.0 A), allowing strong initial torque delivery. The breakaway torque of 200% and breakdown torque of 275% ensure stable performance under variable loads, while the service factor of 1.00 signifies its ability to continuously run at full load without overheating.

The motor boasts high efficiency levels—up to 85.50% at full load, ensuring energy-saving performance and lower operational costs. A power factor of 0.85 at full load helps improve electrical system efficiency and reduce reactive power losses.

For smooth mechanical operation, it is equipped with high-quality bearings—6206 ZZ C3 at the drive end and 6204 ZZ C3 at the non-drive end, both designed for durability and reduced maintenance. Dual V’Ring/Oil-seal arrangements on both ends provide effective sealing against dust and moisture ingress.

Weighing approximately 34 kg, the motor is robust yet manageable, offering a balanced combination of power, efficiency, and structural integrity. This motor is a reliable choice for continuous, high-speed, and high-load industrial operations.
