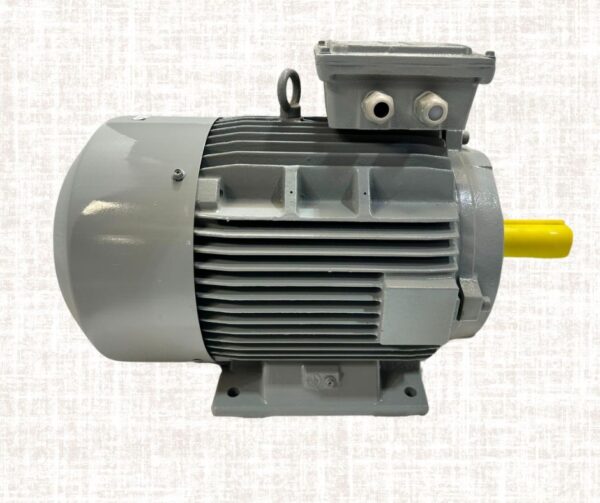

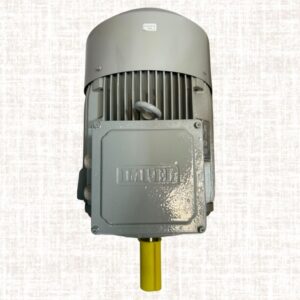

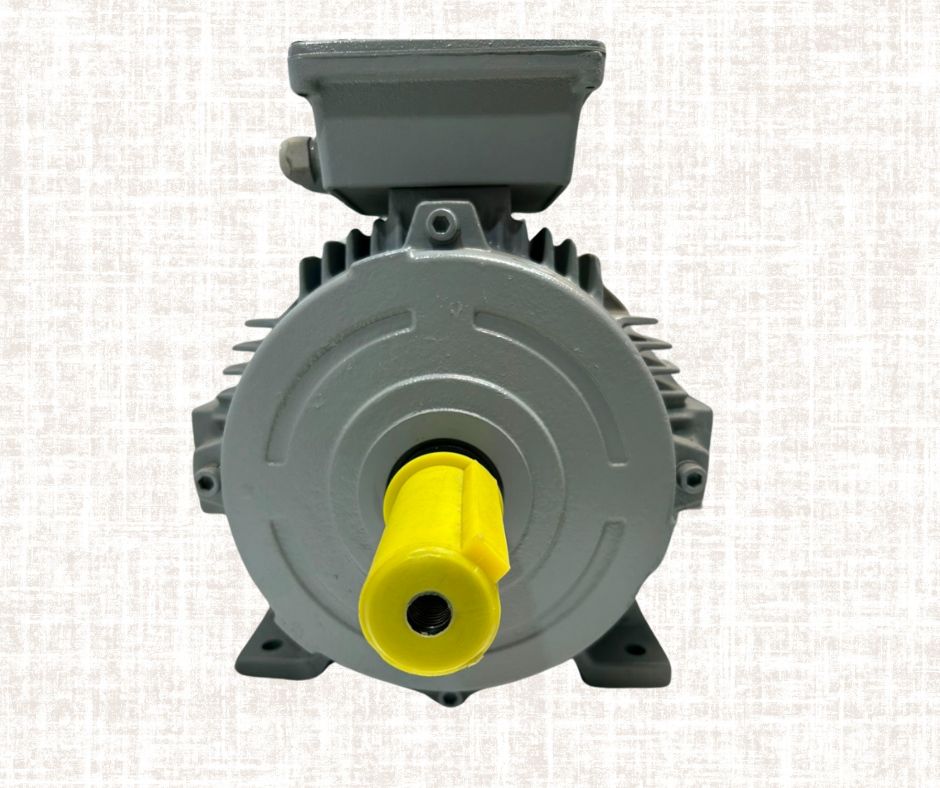

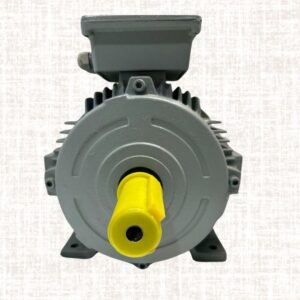

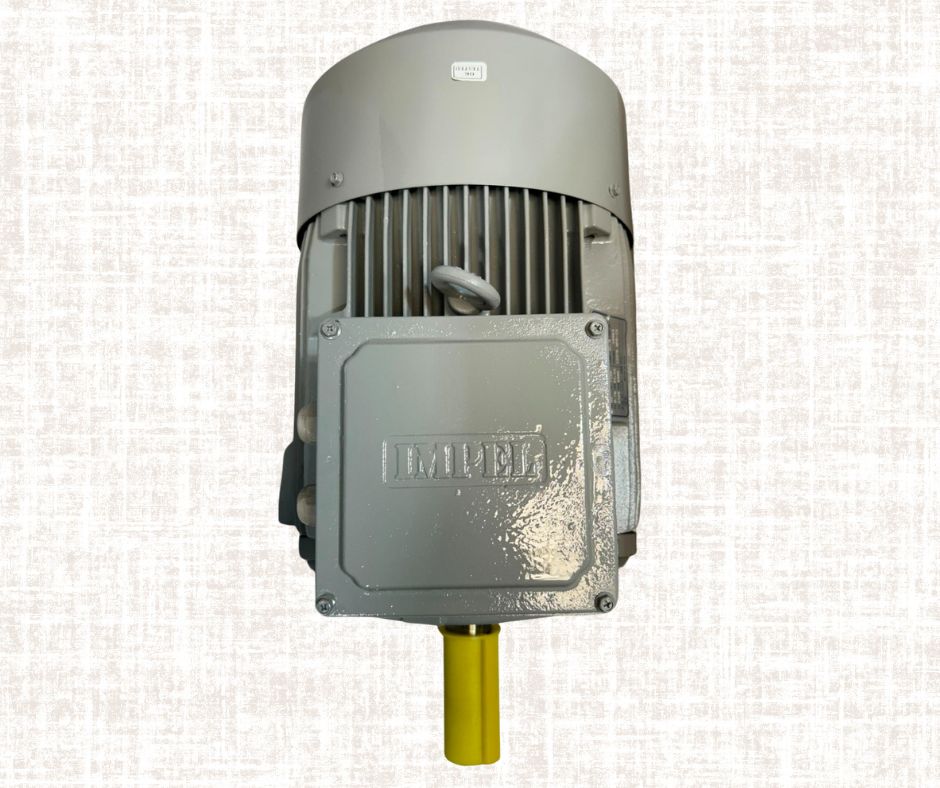

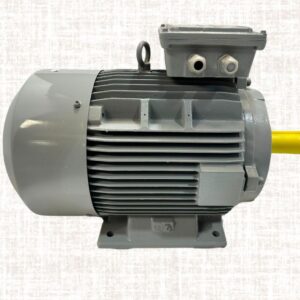

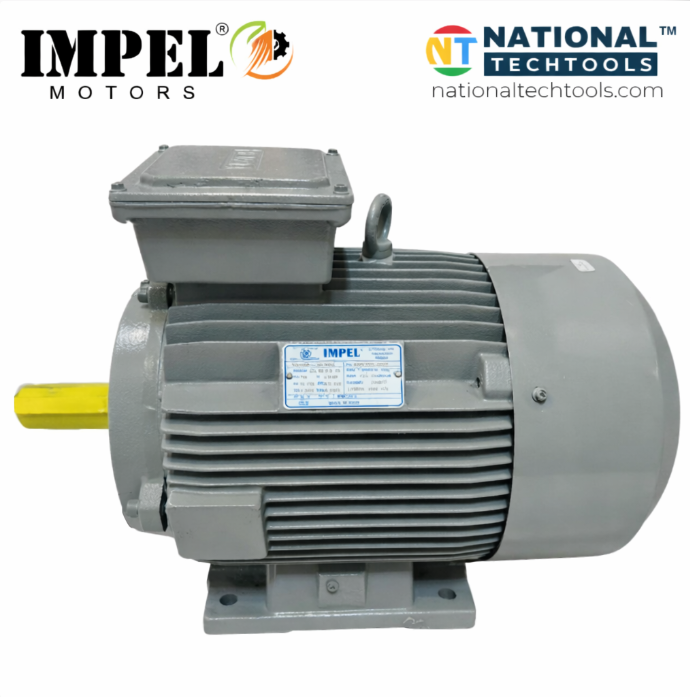

Impel 15HP 6 Pole IE2 950RPM B3 Foot Mounted 160LFrame 415V Motor

Impel 15HP 6 Pole IE2 950RPM B3 Foot Mounted 160LFrame 415V Motor

Full Specifications :

This 15.0 HP (11.0 kW) squirrel cage induction motor is designed for high-performance industrial applications requiring reliable and efficient continuous operation. Housed in a 160L frame, it features a Totally Enclosed Fan Cooled (TEFC) enclosure with IC 411 cooling method, ensuring robust protection against dust, moisture, and other environmental contaminants.

The motor operates at a standard frequency of 50 Hz (±5%) and voltage of 415 V (±10%), making it suitable for a wide range of power systems. With a 6-pole configuration, it delivers a rated speed of approximately 950 rpm, providing high torque at low speed, which is ideal for equipment such as conveyors, mixers, pumps, and other machinery requiring high starting torque.

This motor supports multiple mounting options – B3 (foot) offering flexibility in installation across various equipment designs. Its bi-directional rotation (both clockwise and counterclockwise) further enhances adaptability in operational setups.

Equipped with Class F insulation, the motor ensures safe operation in environments with ambient temperatures up to 50°C, offering thermal endurance and extended life. The motor’s duty cycle is S1 (continuous duty), signifying it is intended for uninterrupted operation under full load conditions.

The motor delivers a rated torque of 106.24 Nm, with a breakaway torque of 200% and breakdown torque of 226%, providing excellent torque performance during starting and overload conditions. The starting current is 700% of the rated value, which is typical for motors of this capacity.

Efficiency ratings are high across various load levels, achieving 87.50% at 50% load, 88.40% at 75%, and 88.70% at full load, which contributes to energy savings and lower operational costs. The power factor also remains strong, ranging from 0.60 to 0.76 depending on the load, contributing to reduced reactive power demand.

Mechanically, the motor is built to last, featuring high-quality deep groove ball bearings – 6309 ZZ C3 on both drive and non-drive ends, which are suitable for high-speed and high-load operations. V’ Ring or oil-seal arrangements provide effective protection against lubricant leakage and ingress of contaminants, further enhancing durability and maintenance intervals.

With an approximate weight of 140 kg, this motor balances performance and structural robustness. Its IP55 protection rating ensures reliable operation in demanding environments by safeguarding against dust ingress and low-pressure water jets from any direction.

In summary, this 15 HP, 6-pole, 160L-frame motor is a rugged, energy-efficient, and versatile drive solution for industrial applications requiring high torque, continuous duty, and dependable operation in challenging conditions.
