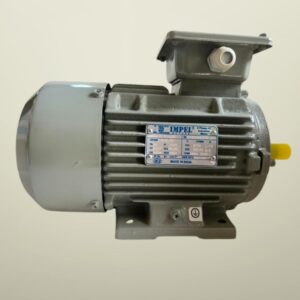

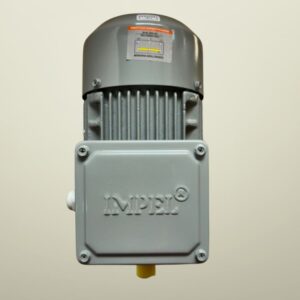

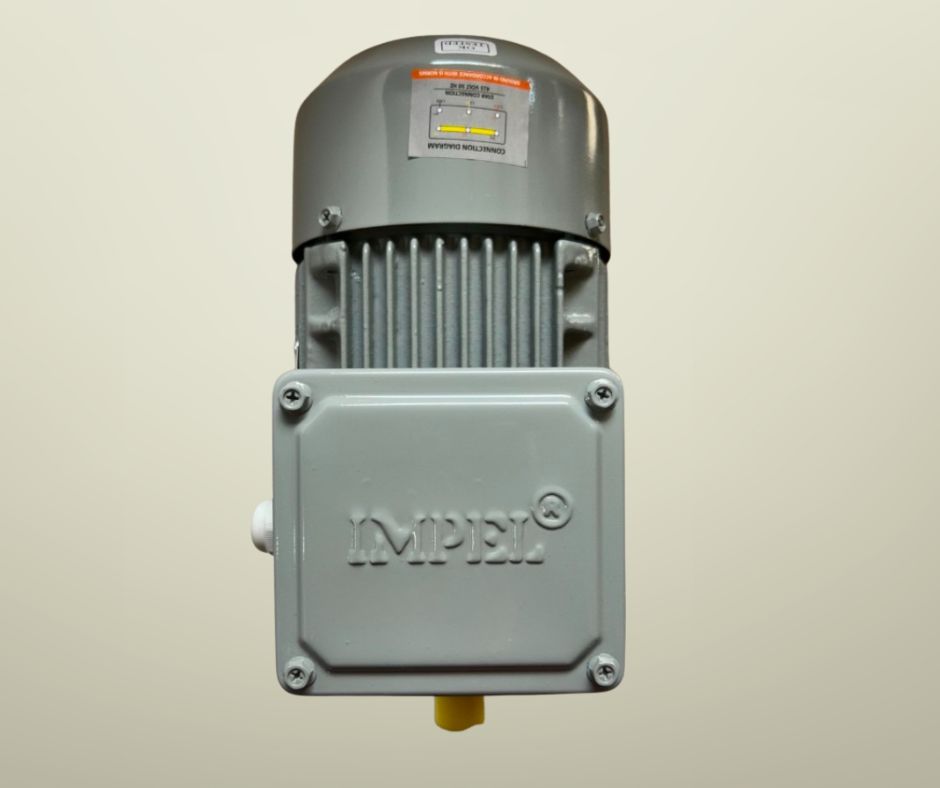

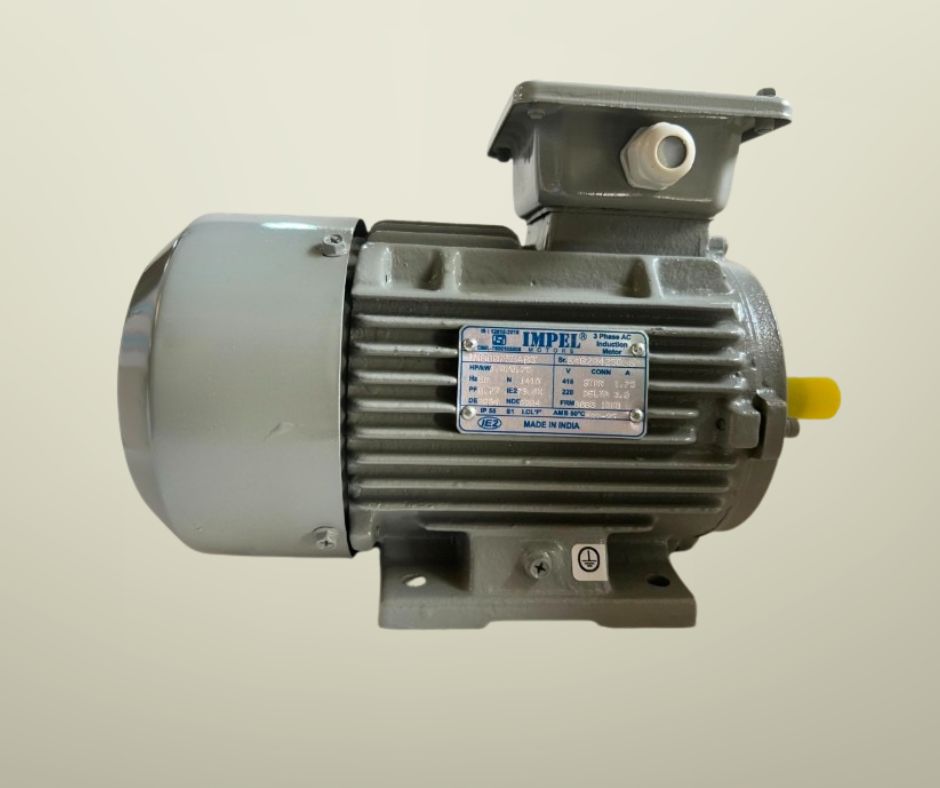

Impel 0.5HP 6 Pole IE2 920RPM B3 Foot Mounted 80Frame 415V Motor

Impel 0.5HP 6 Pole IE2 920RPM B3 Foot Mounted 80Frame 415V Motor

This robust and versatile electric motor with a frame size of 80 delivers a power output of 0.5 HP (0.37 kW) and is specifically engineered for applications that require low-speed, high-torque operation. With a 6-pole design, the motor operates at a rated speed of 920 rpm, making it suitable for heavy-duty and high-inertia equipment.

The motor features a Totally Enclosed Fan Cooled (TEFC) enclosure with a cooling method of IC 411, ensuring efficient heat dissipation and protection from dust, moisture, and other environmental elements. It supports multiple mounting options — B3 (foot-mounted), B5 (flange-mounted), and B35 (foot and flange-mounted) — offering flexibility for a wide range of industrial installations.

Designed for bi-directional rotation (CW & CCW), the motor runs on a 415 V ±10% power supply at 50 Hz ±5% frequency and draws a rated current of 1.2 A. It is built to perform reliably under continuous duty (S1) in ambient conditions up to 50°C, supported by Class F insulation, which ensures superior thermal endurance. The motor’s IP55 protection rating provides excellent defense against dust and water ingress, making it ideal for use in harsh or outdoor environments.

Performance specifications include:

• Slip: 8.0%
• Rated Torque: 3.83 Nm
• Breakaway Torque: 210% of rated torque
• Breakdown Torque: 231% of rated torque
• Starting Current: 500% of rated current
• Service Factor: 1.00

The motor offers dependable efficiency and power factor performance across different loads:

• Efficiency: 66.00% (50% load), 67.00% (75% load), 67.60% (100% load)
• Power Factor: 0.50 (50%), 0.60 (75%), 0.63 (100%)

Both the drive end and non-drive end are equipped with high-quality 6204 ZZ C3 bearings, providing smooth operation and extended service life. In addition, the motor is sealed with V’ Ring / Oil-seal on both ends to prevent ingress of contaminants and ensure mechanical reliability.

Weighing approximately 18 kg, this motor is built with durability and adaptability in mind. It is well-suited for applications such as conveyors, gear-driven systems, mixers, and other equipment where low-speed, high-torque, and continuous-duty performance are required.
