Showing 157–168 of 381 results
-
Sale!
₹17,293 Original price was: ₹17,293.₹7,450Current price is: ₹7,450.
Impel 0.5HP 6 Pole IE2 920RPM B3 Foot Mounted 80Frame 415V Motor
Specification :
- Frame Size: 90S
- Cooling Method: IC 411 (Totally Enclosed Fan Cooled – TEFC)
- Output Power: 2.0 HP / 1.5 kW
- Mounting Type: B5
- Number of Poles: 2
- Rotation Direction: Clockwise & Counter-Clockwise (CW & CCW)
- Frequency: 50 Hz ±5%
- Rated Voltage: 415 V ±10%
- Duty Cycle: S1 (Continuous)
- Rated Current: 3.1 A
- Ambient Temperature: 50°C
- Rated Speed: 2860 rpm
- Insulation Class: F
- Protection Degree: IP55
- Slip: 4.66%
-
Sale!
₹5,700 Original price was: ₹5,700.₹3,800Current price is: ₹3,800.
Impel 05. HP 4 Pole IE2 2800 RPM B5 Flange Mounting 71 Frame 415V Three-Phase Squirrel Cage Induction Motor
Specification:
- Frame Size: 71
- Power Output: 0.5 HP / 0.37 kW
- Poles: 4
- Speed: 1380 rpm
- Cooling Method: IC 411 – TEFC
- Mounting: B5
- Rotation: CW & CCW
- Frequency: 50 Hz (±5%)
- Voltage: 415 V (±10%)
- Current: 1.2 A
- Duty Cycle: S1 (Continuous)
- Insulation Class: F
- Ambient Temp: 50°C
- Protection: IP55
- Efficiency (%): 71.00 (50%), 72.20 (75%), 72.70 (100%)
- Power Factor: 0.50 (50%), 0.60 (75%), 0.63 (100%)
- Slip: 8%
- Rated: 2.55 Nm
- Breakaway: 200%
- Breakdown: 220%
- Starting Current: 500%
- Service Factor: 1.00
- Bearings: 6203 ZZ C3 (Both Ends)
- Sealing: V’Ring / Oil-seal (Both Ends)
- Approx. Weight: 13 kg
-
Sale!
₹7,200 Original price was: ₹7,200.₹4,800Current price is: ₹4,800.
Impel 1 HP 2 Pole IE2 3000 RPM B3 Foot Mounting 71 Frame 415V Three-Phase Squirrel Cage Induction Motor
Specifications:
-
Power: 1.0 HP (0.75 kW)
-
Speed: 2840 rpm
-
Poles: 2-pole
-
Frame Size: 80
-
Construction Type: Totally Enclosed Fan Cooled (TEFC)
-
Cooling Method: IC 411
-
Voltage: 415 V ±10%
-
Frequency: 50 Hz ±5%
-
Rated Current: 1.9 A
-
Duty Type: Continuous Duty (S1)
-
Ambient Temperature: Up to 50°C
-
Efficiency: Up to 77.4%
-
Starting Torque: 250%
-
Mounting Type: B3
-
Rotation: Clockwise (CW) and Counter-Clockwise (CCW)
-
Bearings: 6204 ZZ C3 (both ends)
-
Sealing: V’Ring / Oil-seal
-
Approx. Weight: 18 kg
-
Ingress Protection: IP55
-
Insulation Class: Class F
-
Sale!
₹8,000 Original price was: ₹8,000.₹5,000Current price is: ₹5,000.
Impel 1 HP 2 Pole IE2 3000 RPM B5 Flange Mounted 80 Frame 415V Three-Phase Squirrel Cage Induction Motor
Specification:
- Frame Size: 71
- Power Output: 0.5 HP / 0.37 kW
- Poles: 2
- Speed: 2800 rpm
- Cooling Method: IC 411 – TEFC
- Mounting: B5
- Rotation: CW & CCW
- Frequency: 50 Hz (±5%)
- Voltage: 415 V (±10%)
- Current: 1.0 A
- Duty Cycle: S1 (Continuous)
- Insulation Class: F
- Ambient Temp: 50°C
- Protection: IP55
- Efficiency (%): 68.85 (50%), 69.00 (75%), 69.50 (100%)
- Power Factor: 0.71 (50%), 0.83 (75%), 0.85 (100%)
- Slip: 6.6%
- Rated: 1.27 Nm
- Breakaway: 210%
- Breakdown: 245%
- Starting Current: 500%
- Service Factor: 1.00
- Bearings: 6203 ZZ C3 (Both Ends)
- Sealing: V’Ring / Oil-seal (Both Ends)
- Weight: 13 kg
-
Sale!
₹8,000 Original price was: ₹8,000.₹5,500Current price is: ₹5,500.
Impel 1 HP 4 Pole IE2 1500 RPM B5 Flange Mounted 80 Frame 415V Three-Phase Squirrel Cage Induction Motor
Specifications :
- Frame Size: 80
- Output Power: 1.0 HP / 0.75 kW
- Poles: 4
- Rated Speed: 1410 RPM
- Cooling Method: IC 411 – TEFC
- Mounting: B5
- Rated Voltage: 415 V ±10%
- Frequency: 50 Hz ±5%
- Rated Current: 1.75 A
- Insulation Class: F
- Duty Cycle: Continuous (S1)
- Ambient Temperature: 50°C
- Protection Degree: IP55
- Rotation: Clockwise & Counterclockwise (CW & CCW)
- Slip: 6%
-
Sale!
₹11,139 Original price was: ₹11,139.₹4,800Current price is: ₹4,800.
Impel 1.0 HP 2Pole IE2 2840RPM B3 Foot Mounting 80Frame 415V Three Phase squirrel Cage Induction Motor
Specifications :
- Frame Size: 80
- Cooling Method: IC 411 – Totally Enclosed Fan Cooled (TEFC)
- Output Power: 1.0 HP / 0.75 kW
- Mounting Type: B3 (Foot mounted)
- Number of Poles: 2
- Rotation: Clockwise & Counter-clockwise (CW & CCW)
- Frequency: 50 Hz ±5%
- Rated Voltage: 415 V ±10%
- Rated Current: 1.9 A
- Rated Speed: 2840 rpm
- Slip: 5.33%
- Duty Cycle: S1 – Continuous
- Insulation Class: F
- Ambient Temperature: 50°C
- Protection Class: IP55
- Service Factor: 1.00
- Starting Current: 650% of rated
- Rated Torque: 2.45 Nm
- Breakaway Torque: 250%
- Breakdown Torque: 260%
- Efficiency (@ Load):
50%: 76.00%
75%: 77.00%
100%: 77.40%
50%: 0.53
75%: 0.67
100%: 0.70
- Bearings (Drive & Non-drive End): 6204 ZZ C3
- Sealing: V’ Ring / Oil-seal on both ends
- Approximate Weight: 18 kg
-
Sale!
₹15,568 Original price was: ₹15,568.₹6,700Current price is: ₹6,700.
Impel 1.0 HP 6 Pole IE2 920 RPM B5 Flange Mounted 90 Frame 415V Three-Phase Squirrel motor
Specifications :
- Frame Size: 90S
- Cooling Method: IC 411 (TEFC)
- Output Power: 1.0 HP / 0.75 kW
- Mounting Type: B3
- Number of Poles: 6
- Rotation Direction: CW & CCW
- Frequency: 50 Hz ±5%
- Voltage: 415 V ±10%
- Duty Cycle: S1 (Continuous)
- Rated Current: 2.0 A
- Ambient Temperature: 50°C
- Rated Speed: 920 rpm
- Insulation Class: F
- Protection Degree: IP55
- Slip: 8%
-
Sale!
₹11,884 Original price was: ₹11,884.₹5,150Current price is: ₹5,150.
Impel 1.0HP 4Pole IE2 1410RPM B3 Foot Mounted 80 Frame 415V Three-Phase Motor
Specifications :
- Frame Size: 80
- Cooling Method: IC 411 – TEFC
- Output Power: 1.0 HP / 0.75 kW
- Mounting Types: B3
- Number of Poles: 4
- Rotation: CW & CCW (Both directions)
- Frequency: 50 Hz (±5%)
- Voltage: 415 V (±10%)
- Current: 1.75 A
- Speed: 1410 rpm
- Insulation Class: F
- Duty Cycle: S1 (Continuous)
- Ambient Temperature: 50°C
- Degree of Protection: IP55
-
Sale!
₹15,115 Original price was: ₹15,115.₹6,500Current price is: ₹6,500.
Impel 1.0HP 6 Pole IE2 920RPM B3 Foot Mounted 90 Frame 415V Induction Motor
Specifications :
- Frame Size: 90S
- Cooling Method: IC 411 (TEFC)
- Output Power: 1.0 HP / 0.75 kW
- Mounting Type: B3
- Number of Poles: 6
- Rotation Direction: CW & CCW
- Frequency: 50 Hz ±5%
- Voltage: 415 V ±10%
- Duty Cycle: S1 (Continuous)
- Rated Current: 2.0 A
- Ambient Temperature: 50°C
- Rated Speed: 920 rpm
- Insulation Class: F
- Protection Degree: IP55
- Slip: 8%
-
Sale!
₹12,951 Original price was: ₹12,951.₹5,570Current price is: ₹5,570.

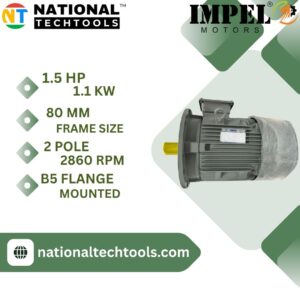

Impel 1.5 HP 2 Pole IE2 2840 RPM B5 Flange Mounted 80 Frame 415V Three-Phase Squirrel motor
Specifications :
- Frame Size: 80
- Cooling Method: IC 411 (Totally Enclosed Fan Cooled – TEFC)
- Output Power: 1.5 HP / 1.1 kW
- Mounting Type: B5
- Number of Poles: 2
- Rotation Direction: Clockwise & Counter-Clockwise (CW & CCW)
- Frequency: 50 Hz ±5%
- Rated Voltage: 415 V ±10%
- Duty Cycle: S1 (Continuous)
- Rated Current: 2.3 A
- Ambient Temperature: 50°C
- Rated Speed: 2860 rpm
- Insulation Class: F
- Protection Degree: IP55
- Slip: 4.66%
-
Sale!
₹16,300 Original price was: ₹16,300.₹7,050Current price is: ₹7,050.
Impel 1.5 HP 4 Pole IE2 1420 RPM B5 Flange Mounted 90 Frame 415V Three-Phase Squirrel Cage Induction Motor
Specifications :
- Frame Size: 90S
- Output Power: 1.5 HP / 1.1 kW
- Poles: 4
- Rated Speed: 1420 RPM
- Cooling Method: IC 411 – TEFC
- Mounting: B5
- Rated Voltage: 415 V ±10%
- Frequency: 50 Hz ±5%
- Rated Current: 2.35 A
- Insulation Class: F
- Duty Cycle: Continuous (S1)
- Ambient Temperature: 50°C
- Protection Degree: IP55
- Rotation: Clockwise & Counterclockwise (CW & CCW)
- Slip: 5.33%
-
Sale!
₹18,953 Original price was: ₹18,953.₹8,150Current price is: ₹8,150.
Impel 1.5 HP 6 Pole IE2 930 RPM B5 Flange Mounted 90 Frame 415V Three-Phase Squirrel motor
Specifications :
- Cooling Method: IC 411 (TEFC)
- Output Power: 1.5 HP / 1.1 kW
- Mounting Type: B3
- Number of Poles: 6
- Rotation Direction: CW & CCW
- Frequency: 50 Hz ±5%
- Voltage: 415 V ±10%
- Duty Cycle: S1 (Continuous)
- Rated Current: 3.2 A
- Ambient Temperature: 50°C
- Rated Speed: 930 rpm
- Insulation Class: F
- Protection Degree: IP55
- Slip: 7.0%
